7.4m Rear Engine 30 Seats City Bus With High Quality and Low Price

Name: 7.4m Rear Engine 30 Seats City Bus With High Quality and Low Price
Brand: Shaolin
SKU: 102646167
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 2

Transmission Type:

Manual

Jinan Huawo Heavy Duty Truck Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 2

Transmission Type Manual

Max Speed 91 - 110 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7365*2400*3135

Place of Origin Henan, China

Brand Name Shaolin

Model Number SLG6740C4GFR

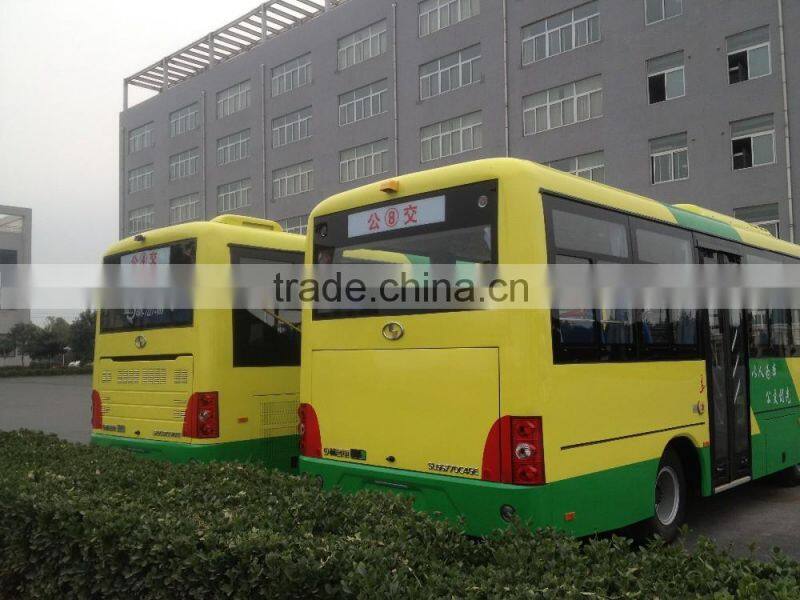

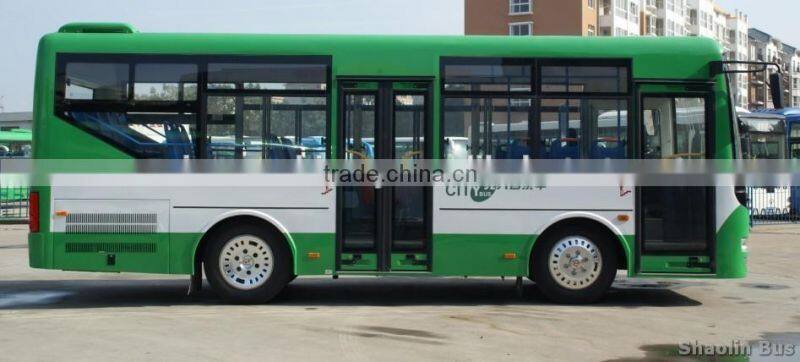

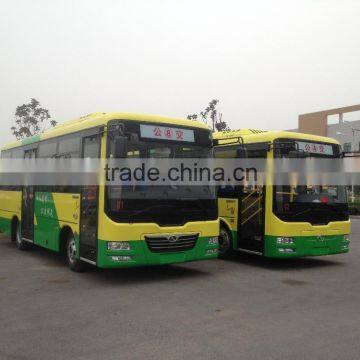

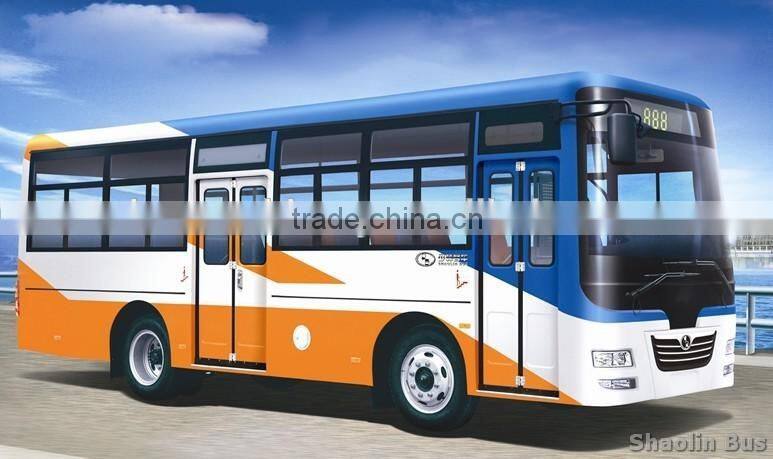

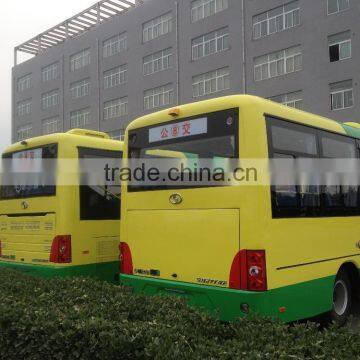

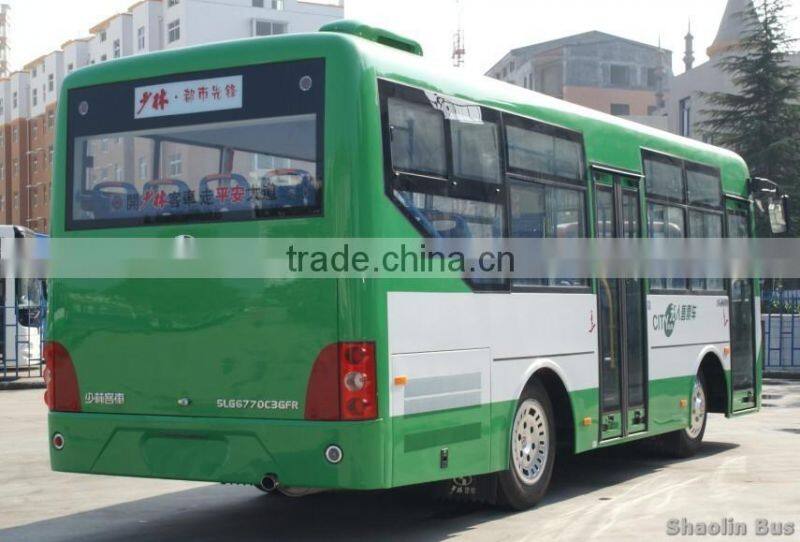

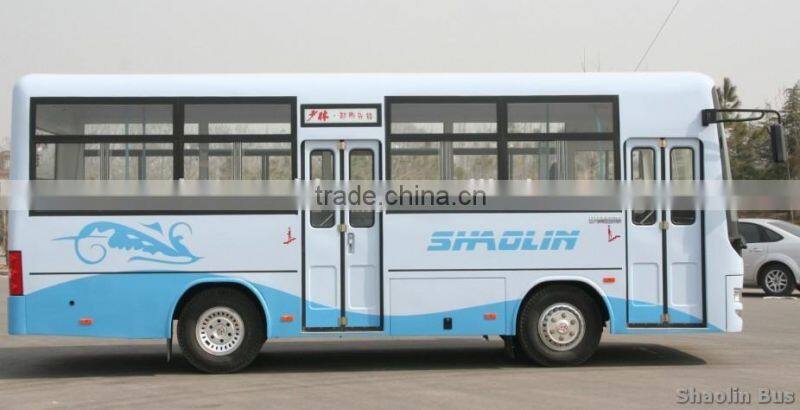

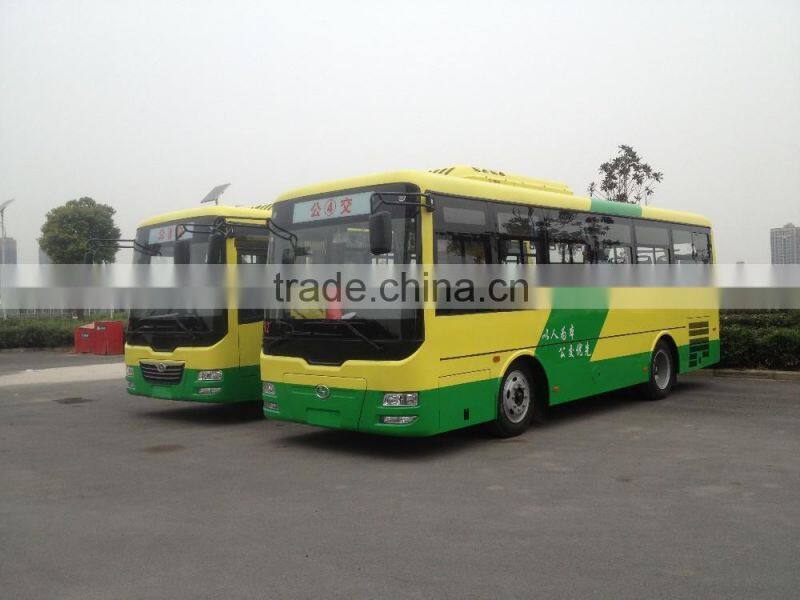

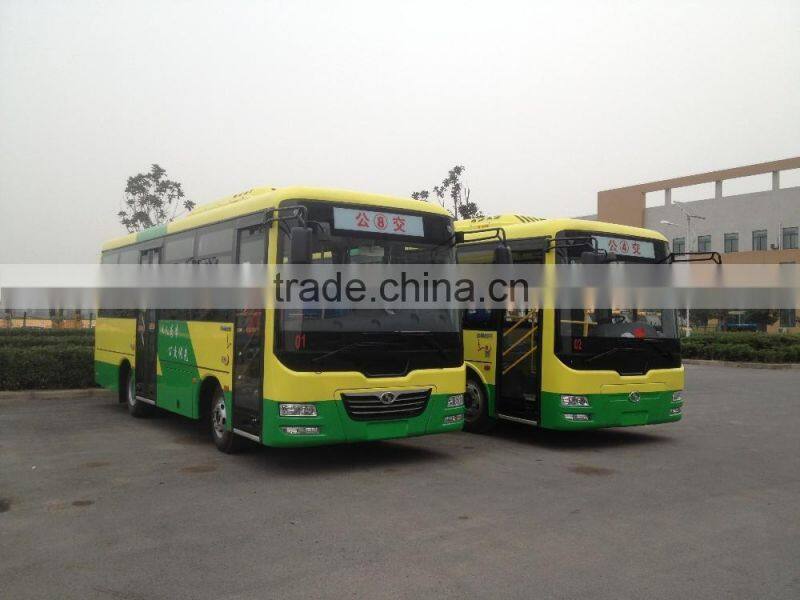

7.4m Rear engine 30 seats city bus with high quality and low price

TECHNICAL DATA:

ITEM		SLG6740C4GFR
DIMENSION	LWH(MM)	736524003135
	Tread F (MM)	1950
	Tread R (MM)	1680
	WHEELBASE (MM)	3300
WEIGHT	TOTAL MASS (KG)	11185
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	17100
	MAX. SPEED (KM/H)	110
	ANGLE (APP/DEP)	13/10
SEAT CAPACITY		30 seats
FRAMEWORK		STRAIGHT BEAM
ENGINE	MODEL	YC4F130-20
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	95KW
	MAX. TORQUE (N.M)	450
	EMISSION STANDARD	EURO II
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
	CLUTCH BOOST	WITH PUMP

	SHIFTS	5 SPEED MANUA
	CONTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		3.5T
REAR AXLE		5.5T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	400
	F/R BRAKING SHOE Width	130/180
SUSPENSION STYLE		LITTLE PIECE OF LEAF SPRING
TYRE		8.25-16
OIL TANK CAPACITY		120L

BODY, ELECTRIC APPLIANCE:

ITEMS	NAME	SPECIFICATION	Remark
1	FRONT WINDSCREEN	FIXED, LAMINATED GLASS,
2	REAR WINDSCREEN	FIXED, TOUGHENED GLASS
3	BATTERY	TWO PIECE OF 120Ah BATTTERY
4	INNER DECORATION	PLASTICS LATERAL CONFINING ALUMINUM-PLASTIC PLATE
5	REARVIEW MIRROR	ORDINARY MIRRIOR
6	INSIDE MIRROR	STANDARD
7	PASSENGER DOOR	PNEUMATIC FOLDING DOOR
8	SIDE WINDOW	THE UPPER PART FIXED GLASS , BOTTOM OF PUSH-PULL WINDOW
9	PASSENGER SEAT	BLOW MOLDING SEAT
10	CLEARSTORY	ESCAPE HATCH
11	STEERING WHEEL	ADJUSTABLE STEERING WHEEL
12	FLOOR BOARD	FLAT FLOOR
