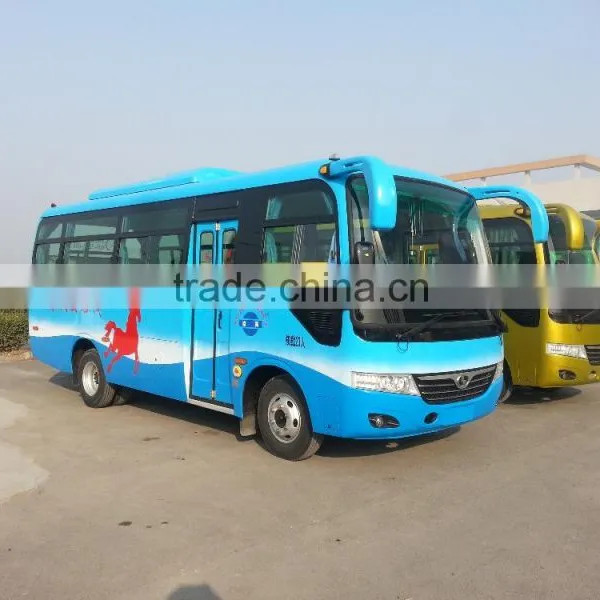

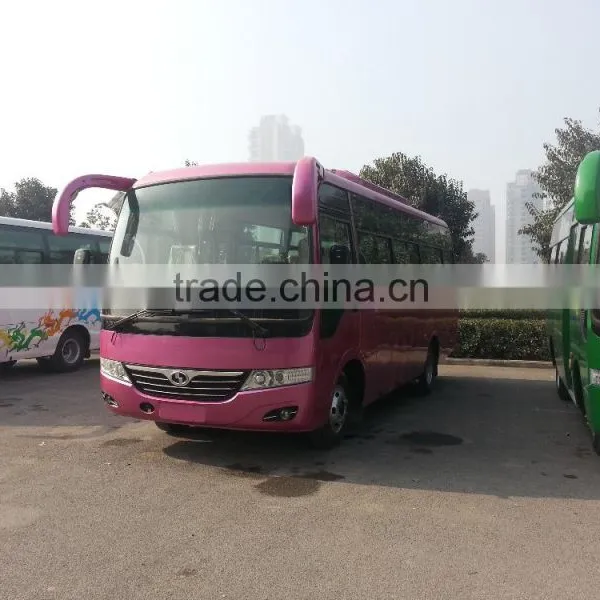

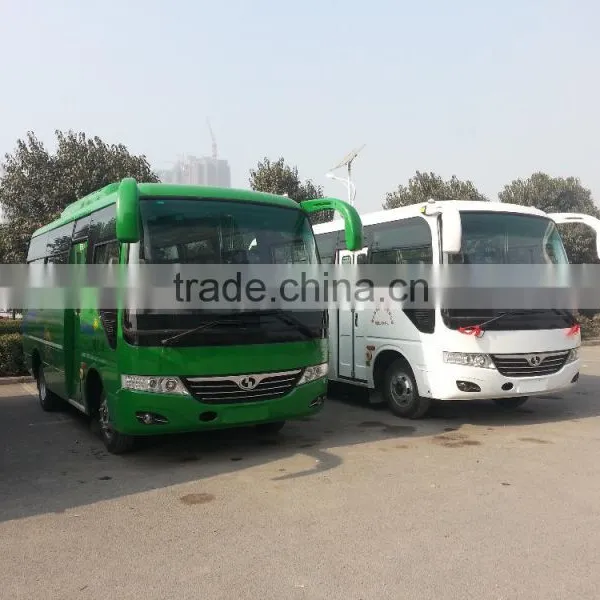

china mini bus 6 METERS 22 SEATS CITY BUS DESIGN OF INTERIOR
- 100 Unit / Units per Month
- any port in china
- T/T
- Toyota Coaster bus seat
- Toyota Coaster bus seat,kinglong bus seat, golden dragon bus seat,coaster bus seat
- Philippines Centro ISUZU MITSUBISHI TATA FUSO HINA SUZUKI FOTON Modern PUV electric folding bus door opener (BDM100-N)
- Philippines E-jeepney/electrical jeepney electric folding bus door opener (BDM100-N)
- Philippines PUV vehicles electric folding bus door opener (BDM100-N)
- Automobile electrical folding bus door pump
Product Details
Seats: | 21 - 40 | Emission Standard: | Euro 2 | Transmission Type: | Manual |
Max Speed: | 91 - 110 km/h | Steering Position: | LHD | Fuel Type: | Diesel |
Dimensions (L x W x H) (mm): | 5995*2240*2800mm | Place of Origin: | Henan, China | Brand Name: | Shaolin |
Model Number: | SLG6603C3GF |
Product Description
china mini bus 6 METERS 22 SEATS CITY BUS DESIGN OF INTERIOR
TECHNICAL DATA:
ITEM | SLG6603C3GF | |
DIMENSION | L×W×H(MM) | 5995×2240×2800 |
Tread F (MM) | 1750 | |
Tread R (MM) | 1586 | |
WHEELBASE (MM) | 3308 | |
SEAT CAPACITY | 22 seats | |
FRAMEWORK | STRAIGHT BEAM | |
ENGINE | MODEL | YC4F115-20 |
MAX. TORQUE (N.M) | 300 | |
EMISSION STANDARD | STATE II | |
FUEL TYPE | DIESEL | |
CLUTCH | TYPE | SINGLE PLATE DRY CLUCH |
CLUTCH BOOST | WITH PUMP | |
SHIFTS | 5 SPEED MANUA | |
Gear Box Model | DF5S300 | |
FRONT AXLE |
| |
REAR AXLE |
| |
BRAKING SYSTEM | STEERING | POWER STEERING |
SERVICE BRAKE | DOUBLE LINE AIR BRAKE SYSTEM | |
PARKING BRAKE | Driveline parking brake | |
F/R BRAKING DIA. | 310mm | |
F/R BRAKING SHOE Width | 130/130mm | |
SUSPENSION STYLE | Multi-leaf spring | |
TYRE | 7.00R16 | |
OIL TANK CAPACITY | 90L | |
Diaphragm spring brake | yes | |
Aluminum radiator | yes | |
High temperature wire | yes | |
50A motor | yes |
BODY, ELECTRIC APPLIANCE
ITEMS | SPECIFICATION | Remark |
1 | Outside small common reversing mirror |
|
2 | Manual folding door |
|
3 | Sliding window with a fixed top ,channel |
|
4 | Driver`s roller sun visor |
|
5 | Adjustable steering wheel |
|
6 | 6-QA-105(15) battery |
|
7 | Spare tire |
|
8 | Vehicle tools |
|
9 | F/R Inner top handrail |
|
10 | Interior rearview mirror |
|
11 | Tank with an antitheft net in side |
|
12 | Rear radar |
|
13 | To fix a iron tool box behind the assistant driver`s seat |
|
14 | Fire extinguisher1 |
|
15 | Adding a iron-shelf on the engine cover |
|
16 | Clearstory window |
|
17 | OPTIONAL THE BACKDOOR INSTEAD THE DRIVER DOOR |
