Home > Consumer Electronics > Washing & Drying Machine & Parts > Washing Machine Parts > Copper Wire Washing Machine Motor

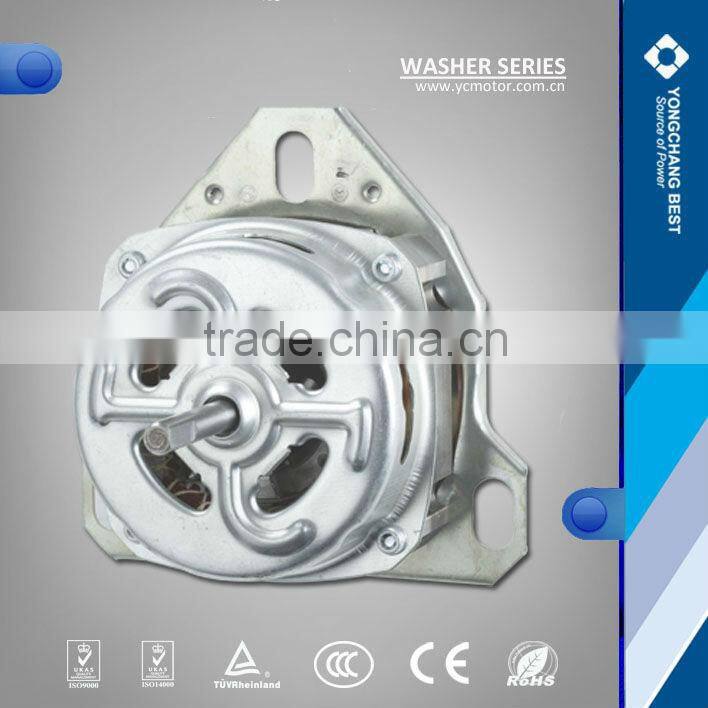

Copper Wire Washing Machine Motor

Copper Wire Washing Machine Motor thumbnail-3

Copper Wire Washing Machine Motor photo-1

Copper Wire Washing Machine Motor photo-2

Copper Wire Washing Machine Motor photo-3

US$ 5.5 - 8.5 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

YCB

Model Number:

Contact Supplier Request Quote Chat Now

Zhejiang Yongchang Electric Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name YCB

Model Number XD

Specifications

washing motor
1,best quality with good price
2,steady performance
3,smooth running
4,low noise,various kinds

1,Specification

The motors can be customized according to the customers need with different Voltage,Frequency ,etc.

2,Performance parameters

The specification of our general products as below:

Model	Voltage (V)	Frequency(Hz)	capacitance(uF)	Insulation class	Rated speed(r/min)	Output power(W)	efficiency(%)	Starting torque(N.m)	Greatest torque(N.m)
XD-250	220	50	18	E	1350	250	55	1.7	2.5
XD-200	220	50	15	E	1350	200	54	1.5	2.2
XD-180	220	50	14	E	1350	180	52	1.4	2
XD-150	220	50	13	E	1350	150	51	1.3	1.8
XD-135	220	50	11	E	1350	135	50	1.1	1.7
XD-180	110	60	50	E	1620	180	52	1.4	2
XD-135	110	60	46	E	1620	135	50	1.1	1.7
XD-120	220	50	10	E	1350	120	45	1	1.4
XD-100	220	50	10	E	1350	100	43	0.8	1.2

3,Raw Material

Silicon Steel for Rotor and Stator

Steel for Shaft

Iron or Aluminum Cover

Copper or Aluminum enameled wire

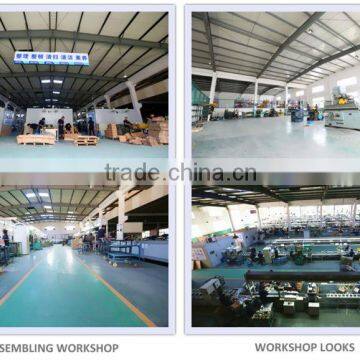

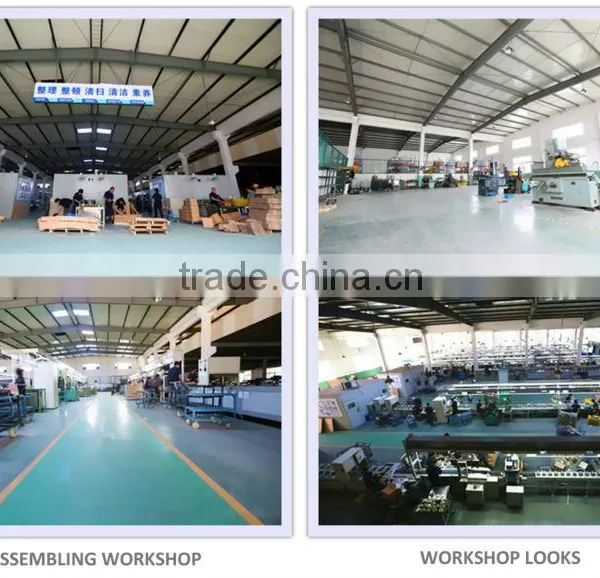

4,Manufacturing process

5,Packing detail

4 pcs one carton with foam

one container (20GP)containing 6000pcs

One pallet 252 pcs for spin motor.

One pallet 216 pcs for wash motor.

One container (20GP)containing 20 pallet

Can be customized according to customer’s requirement packaging.

6,Why choose us

1) Safe and reliable, low noise, good starting, long life, etc.

2) All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV

2) This motor can be designed and produced according to your request.

3) We will send you some samples for your further inspecting.

4) We have more detailed specifications.If you are interested in, please mail us.

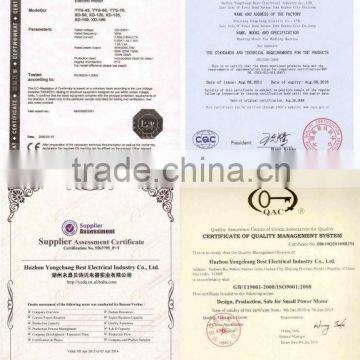

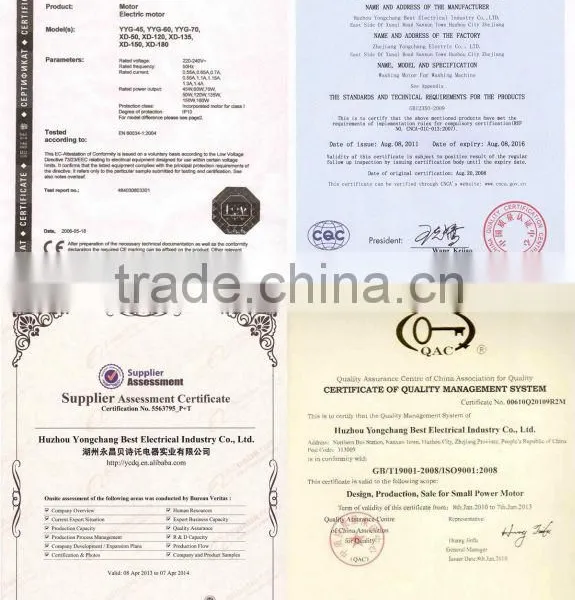

7,Certification,Patent,ISO

All our products passed the CE/CCC/ROHS/SGS/ISO9001:

If you have further questions , please mail us ! We will meet your requirements.

Sales Department

Tel:86-150 0582 3916

Email:jane@

Skype:jane.shi33

Web:

Our company was established in 1994,it occupied a land area of 20280 square meters and specialized in micro-motors manufacturing. Owing good service,variety of high quality products and competitive price. We ensure efficient delivery,enjoying a good reputation among our customers.
