Home > Consumer Electronics > Washing & Drying Machine & Parts > Washing Machine Parts > Asynchronous Automatic Single-phase Motor

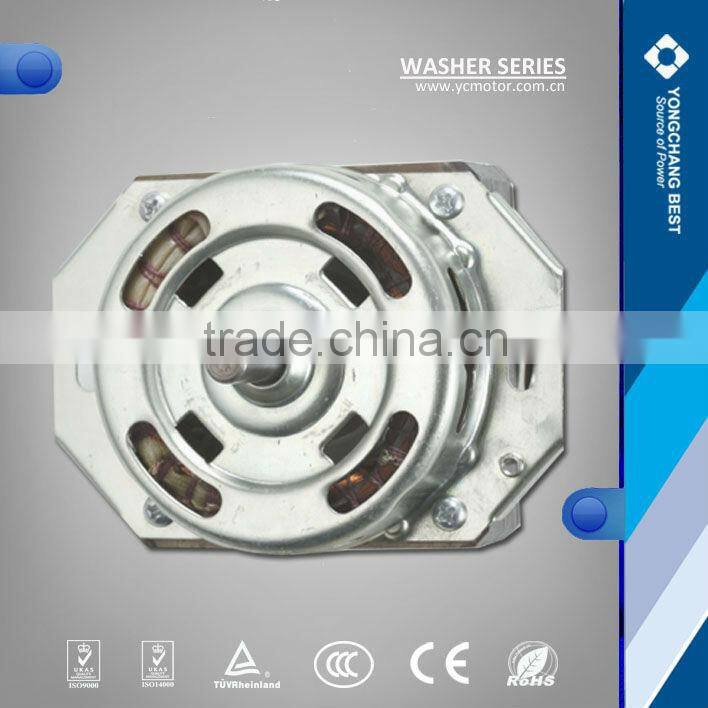

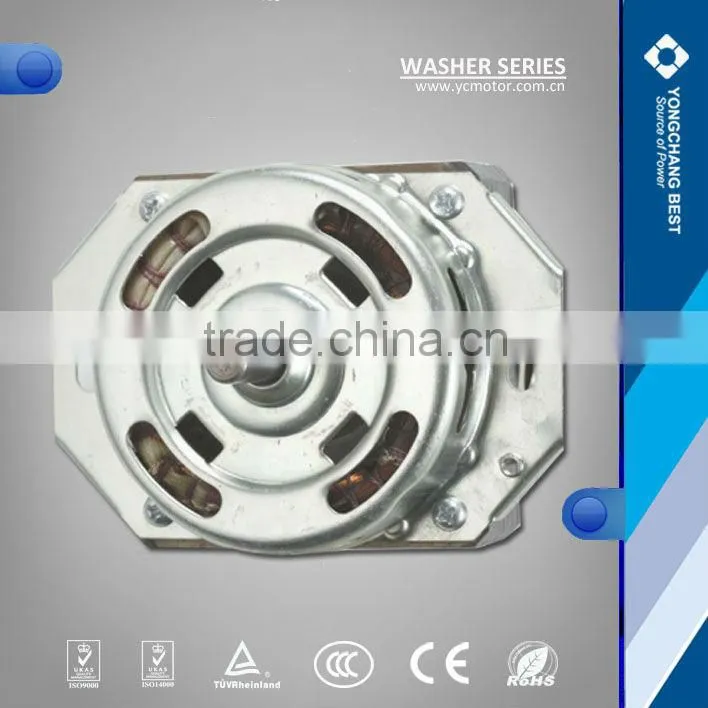

Asynchronous Automatic Single-phase Motor

US$ 3 - 13 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

YCB

Model Number:

Contact Supplier Request Quote Chat Now

Zhejiang Yongchang Electric Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name YCB

Model Number XD

Specifications

Asynchronous single-phase motor washing motor
a smoothing in operated
b fast startup
c long work time
d smooth running

1,Specification

The motors can be customized according to the customers need with different Voltage,Frequency ,etc.

Shape and the size of installation:

Codel	A	B	C	D	L1	L2	L3	L4	L5
Size	12	Φ 10	7	8	36	61	26	108	128
	12	Φ 10	7	8	35	60	30	108	128

2,Performance parameters

The specification of our general products as below:

Model	Voltage(V)	Frequency(Hz)	capacitance( μ F)	Insulation class	Rated speed(r/min)	Output power(W)	efficiency(%)	Starting torque(N.m)	Greatest torque(N.m)
XD-50	220	50	4	B	1350	50	40	0.33	0.5
XD-60	220	50	5	B	1350	60	42	0.45	0.6

3,Raw Material

Silicon Steel for Rotor and Stator

Steel for Shaft

Iron or Aluminum Cover

Copper or Aluminum enameled wire

4,Manufacturing process

5,Packing detail

4 pcs one carton with foam

one container (20GP)containing 6000pcs

One pallet 252 pcs for spin motor.

One pallet 216 pcs for wash motor.

One container (20GP)containing 20 pallet

Can be customized according to customer’s requirement packaging.

6,Why choose us

1) Safe and reliable, low noise, good starting, long life, etc.

2) All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV

2) This motor can be designed and produced according to your request.

3) We will send you some samples for your further inspecting.

4) We have more detailed specifications.If you are interested in, please mail us.

7,Certification,Patent,ISO

All our products passed the CE/CCC/ROHS/SGS/ISO9001:

If you have further questions , please mail us ! We will meet your requirements.

Sales Department

Tel:86-188 5721 5000

Email:admin@

Skype:hzbryant

Web:

Our company was established in 1994,it occupied a land area of 20280 square meters and specialized in micro-motors manufacturing. Owing good service,variety of high quality products and competitive price. We ensure efficient delivery,enjoying a good reputation among our customers.
