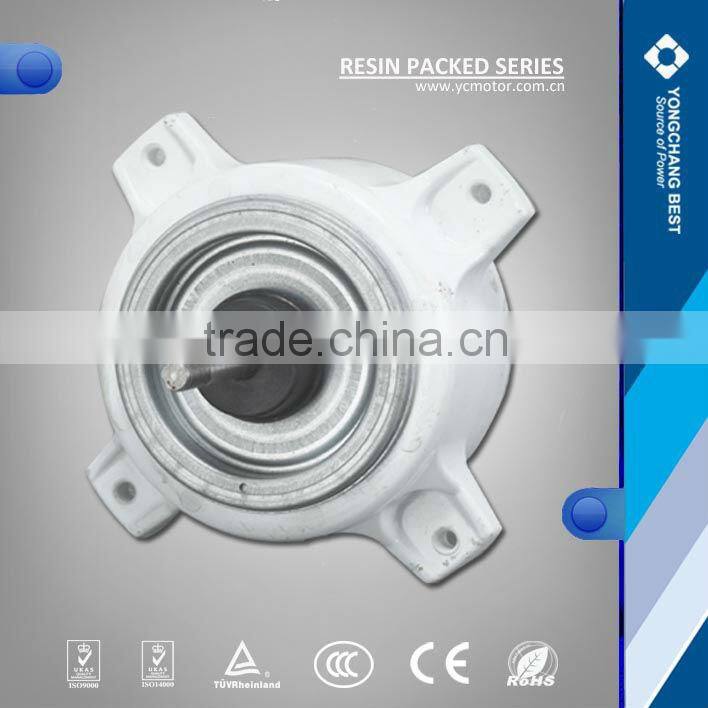

Help CenterResin-Packed Single Phase Motor Magnetico
Related Products
-
Resin-Packed Single Phaseparts lg Washing MachineUS$ 10 - 20MOQ: 2000 Pieces -
Asynchronous ac Air Conditioner MotorUS$ 3 - 13MOQ: 500 Pieces
-
Resin Packed Motor for Washing Machine Magnetic MotorUS$ 1 - 11MOQ: 1 Piece
-
2014 Asynchronous Air Conditioner Geared MotorUS$ 3 - 13MOQ: 500 Pieces
-
Asynchronous Welling Air Conditioner MotorUS$ 3 - 13MOQ: 500 Pieces
Specifications
Insulation properties, moisture resistance, corrosion resistance, particularly superior, low noise, smooth operation.1,Specification
The motors can be customized according to the customers need with different Voltage,Frequency ,etc.
Shape and the size of installation:
| Code | A | B | C | D | E | F | L1 | L2 | L3 |
| Size | M6 | 7 | Φ 8 | 45 | 8 | 11.5 | 28 | 34.2 | 68 |
| M6 | 7 | Φ 8 | 45 | 10 | 10 | 28 | 34.2 | 68 | |
| M6 | 7 | Φ 8 | 45 | 12 | 12 | 35 | 35.5 | 70.5 | |
| M6 | 7 | Φ 8 | 45 | 10 | 10 | 35 | 35.5 | 70.5 |
2,Performance parameters
The specification of our general products as below:
| Model | Voltage(V) | Frequency(Hz) | capacitance(uF) | Insulation class | Rated speed(r/min) | Output power(W) | efficiency(%) | Adjusted form |
| YFD25-6 | 220 | 50/60 | 2 | E | 700-1100 | 25 | 43 | Single Speed |
| YFD40-6 | 220 | 50/60 | 3 | E | 700-1100 | 40 | 44 | Single Speed |
| YFD25-6 | 110 | 50/60 | 3 | E | 700-1100 | 25 | 41 | Single Speed |
3,Raw Material
Silicon Steel for Rotor and Stator
Steel for Shaft
Iron or Aluminum Cover
Copper or Aluminum enameled wire
4,Manufacturing process
5,Packing detail
4 pcs one carton with foam
one container (20GP)containing 6000pcs
One pallet 252 pcs for spin motor.
One pallet 216 pcs for wash motor.
One container (20GP)containing 20 pallet
Can be customized according to customer’s requirement packaging.
6,Why choose us
1) Safe and reliable, low noise, good starting, long life, etc.
2) All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV
2) This motor can be designed and produced according to your request.
3) We will send you some samples for your further inspecting.
4) We have more detailed specifications.If you are interested in, please mail us.
7,Certification,Patent,ISO
All our products passed the CE/CCC/ROHS/SGS/ISO9001:
If you have further questions , please mail us ! We will meet your requirements.
Contact us
Sales Department
Tel:86-188 5721 5000
Email:admin@
Skype:hzbryant
Web:
Our company was established in 1994,it occupied a land area of 20280 square meters and specialized in micro-motors manufacturing. Owing good service,variety of high quality products and competitive price. We ensure efficient delivery,enjoying a good reputation among our customers.
