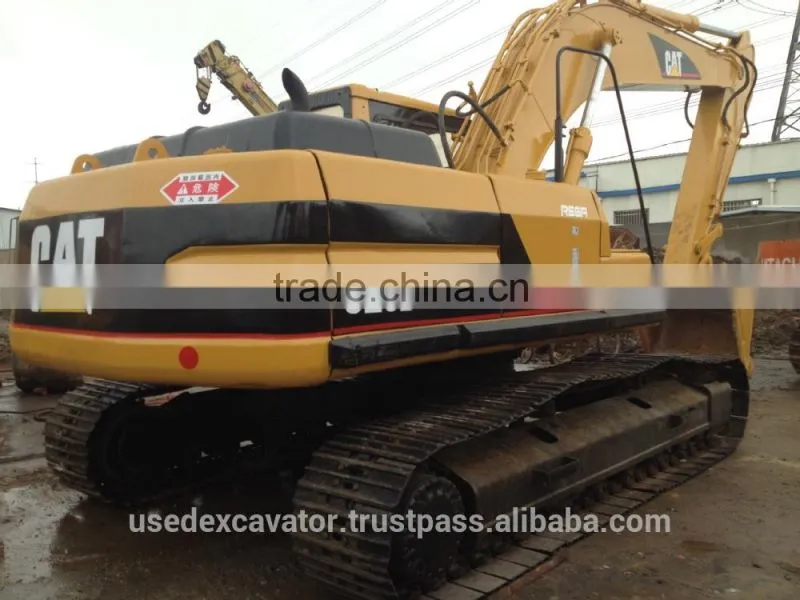

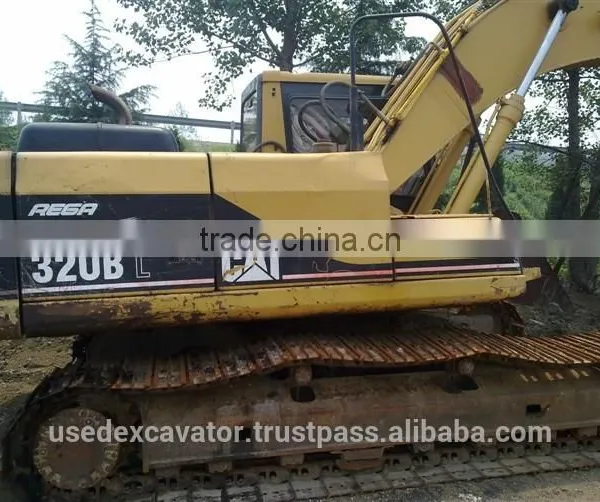

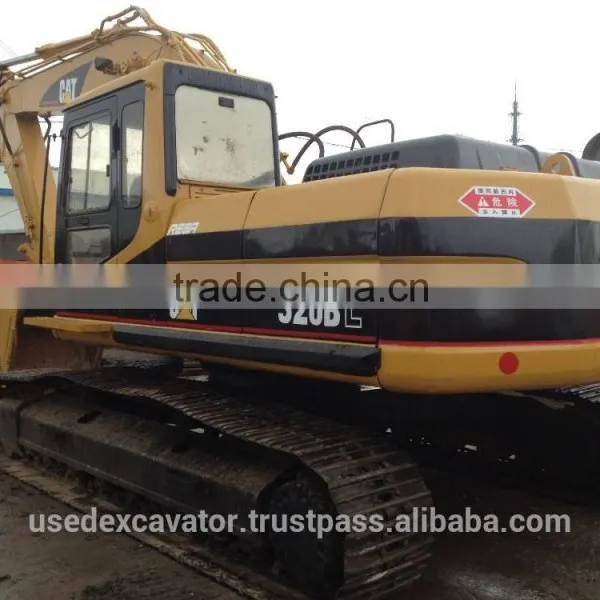

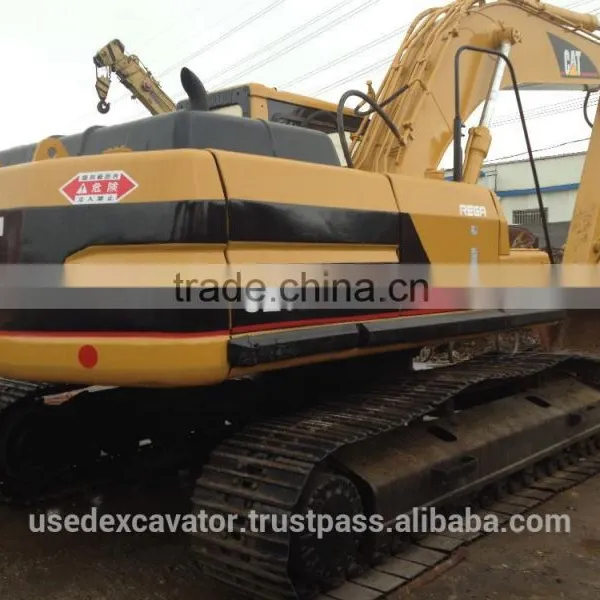

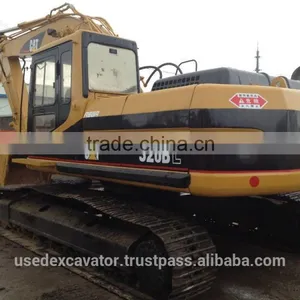

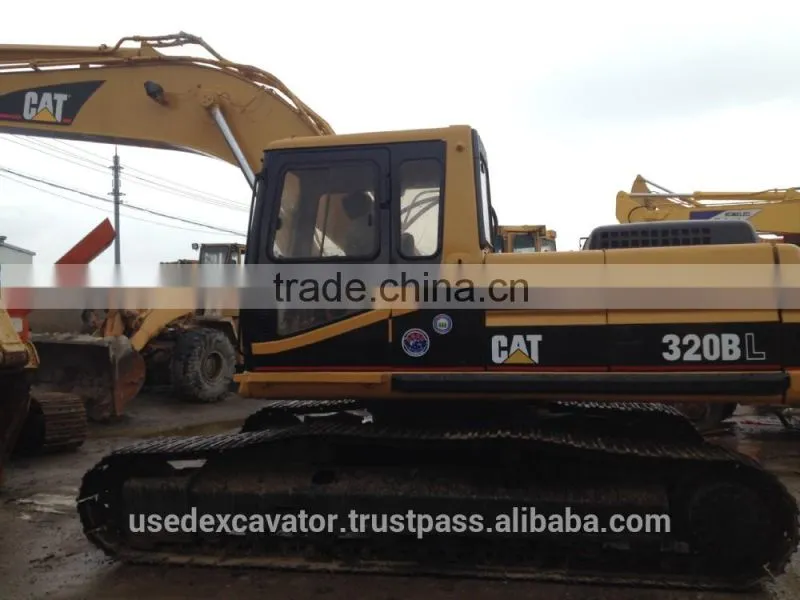

Used CAT excavator 320BL,Used CAT Excavator Used Digger 320BL With Best Price & Condiction

FOB Price

USD $25,000 - $35,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port SHANGHAI
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Japan	Brand Name:	CAT	Model Number:	320BL
Condition:	Used	Year:	2008	Make:	Caterpillar
Moving Type:	Crawler Excavator	Operating Weight:	19400kg	Bucket capacity:	1.5M3
Maximum Digging Height:	9750mm	Maximum Digging Depth:	7580mm	Machine Weight:	19400kgs

Product Description

Used Caterpillar 320BL excavators best price fo sale

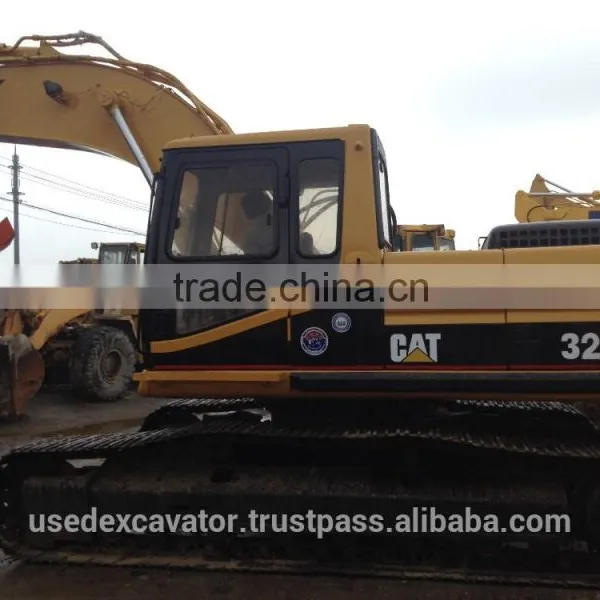

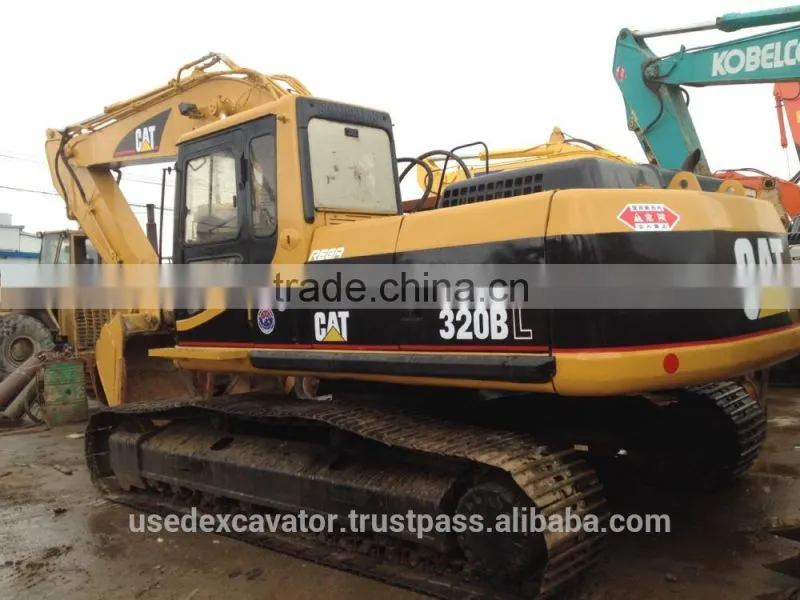

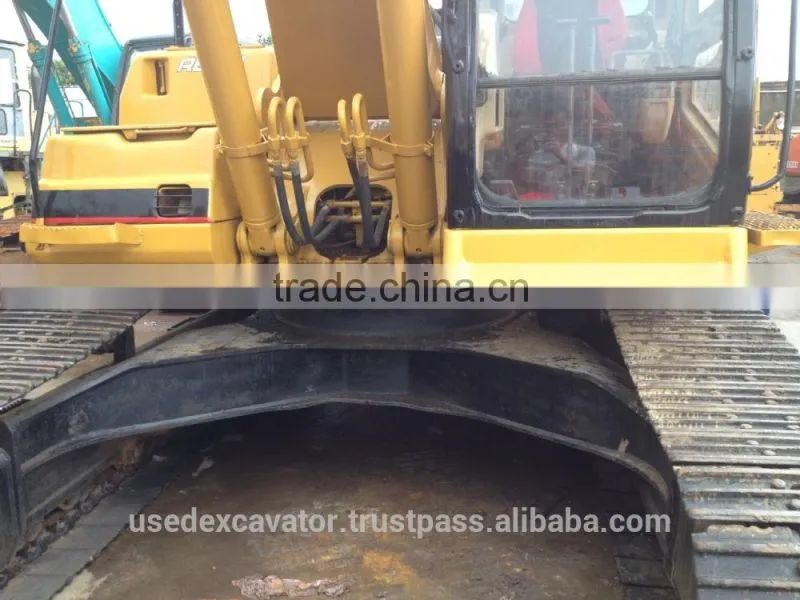

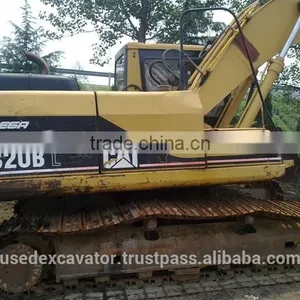

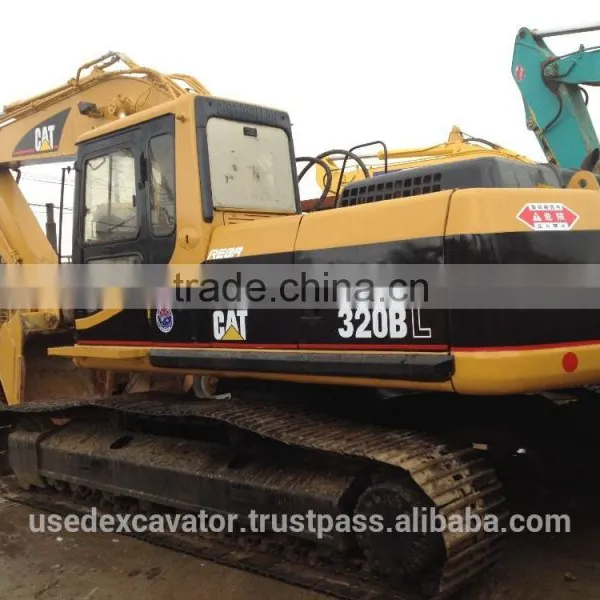

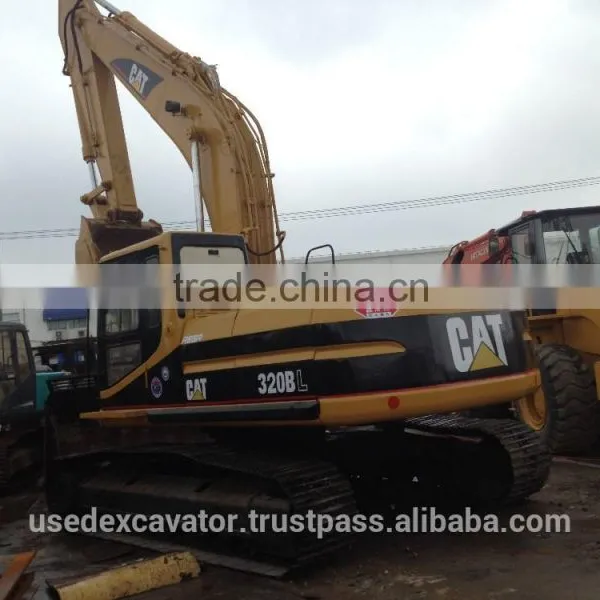

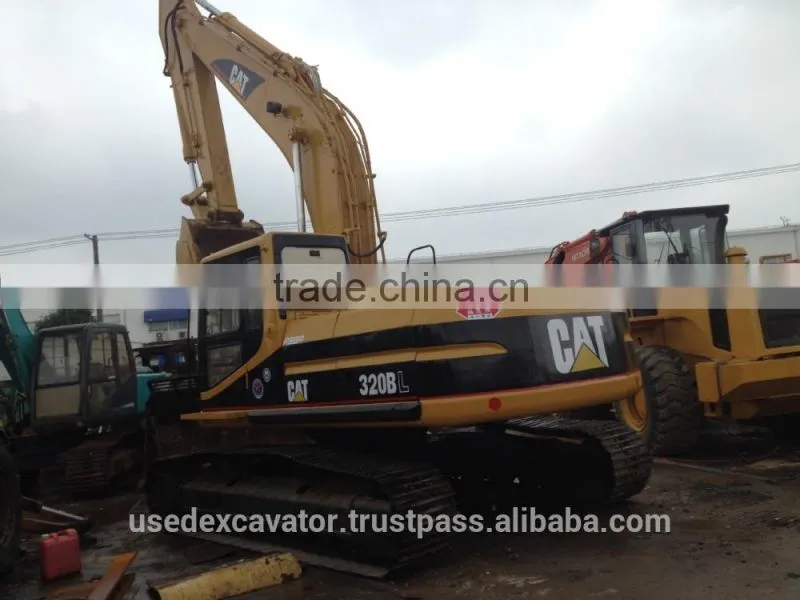

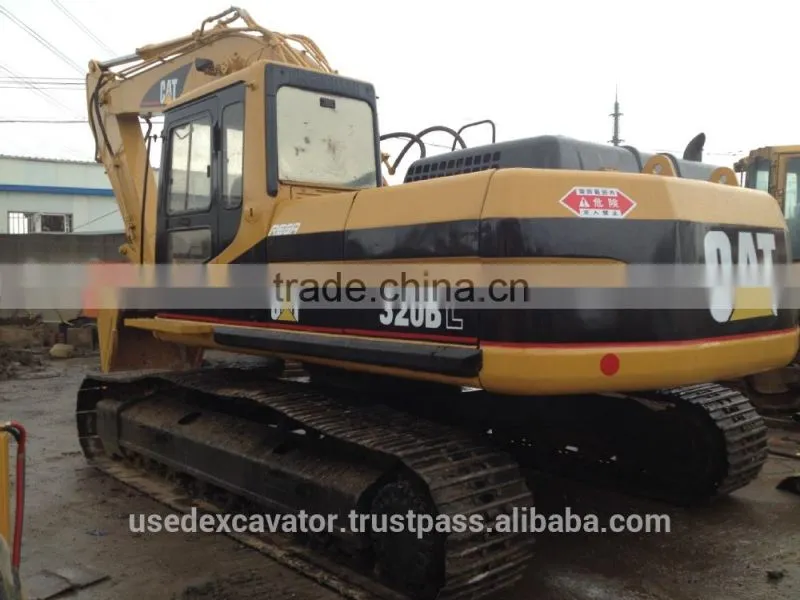

Used excavator Caterpillar CAT 320BL For Sale

Used CAT Excavator Used Digger 320BL

1.Good quality, better work performance and condition short work time.

2.we have more than 5000 sets of construction machinery in shanghai yard. we have sub branch in Malaysia. guaranteed quality.

3. video available

Engine
Make	Caterpillar
Model	3066T
Gross Power	134 hp	99.9 kw
Net Power	128 hp	95.4 kw
Power Measured @	1800 rpm
Displacement	389 cu in	6.4 L
Aspiration	Turbocharged
Number of Cylinders	6
Operational
Operating Weight	42769.7 lb	19400 kg
Fuel Capacity	89.8 gal	340 L
Cooling System Fluid Capacity	6.6 gal	25 L
Hydrauilc System Fluid Capacity	58.1 gal	220 L
Engine Oil Capacity	5.4 gal	20.5 L
Swing Drive Fluid Capacity	1.6 gal	6 L
Operating Voltage	24 V
Alternator Supplied Amperage	50 amps
Hydraulic System Relief Valve Pressure	4980 psi	34335.9 kPa
Hydraulic Pump Flow Capacity	97.7 gal/min	370 L/min
Swing Mechanism
Swing Torque	42050 lb ft	57012.1 Nm
Undercarriage
Shoe Size	31.5 in	800 mm
Max Travel Speed	3.4 mph	5.5 km/h
Drawbar Pull	39800 lb	177 kN
Track Gauge	7.8 ft in	2380 mm
Buckets
Reference Bucket Capacity	1.2 yd3	0.92 m3
Minimum Bucket Capacity	0.45 yd3	0.34 m3
Maximum Bucket Capacity	2 yd3	1.5 m3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1	Boom 18'7" (5680mm) / Stick 12'8" (3900mm)
Shipping Height of Unit	11.3 ft in	3430 mm
Shipping Length of Unit	30.9 ft in	9420 mm
Max Digging Depth	24.9 ft in	7580 mm
Max Reach Along Ground	34.9 ft in	10630 mm
Max Cutting Height	32 ft in	9750 mm
Max Loading Height	22.7 ft in	6930 mm
Max Vertical Wall Digging Depth	22.3 ft in	6810 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2	Boom 18'7" (5680mm) / Stick 9'7" (2900mm)
Shipping Height of Unit	9.6 ft in	2930 mm
Shipping Length of Unit	31 ft in	9440 mm
Max Digging Depth	21.8 ft in	6640 mm
Max Reach Along Ground	32.1 ft in	9780 mm
Max Cutting Height	31.1 ft in	9470 mm
Max Loading Height	21.6 ft in	6570 mm
Max Vertical Wall Digging Depth	19.8 ft in	6040 mm
Boom/Stick Option (HEX) 3
Boom/Stick Option (HEX) 3	Boom 18'7" (5680mm) / Stick 8'2" (2500mm)
Shipping Height of Unit	9.9 ft in	3010 mm
Shipping Length of Unit	31 ft in	9460 mm
Max Digging Depth	20.2 ft in	6150 mm
Max Reach Along Ground	30.5 ft in	9310 mm
Max Cutting Height	30.1 ft in	9160 mm
Max Loading Height	21.2 ft in	6460 mm
Max Vertical Wall Digging Depth	17.5 ft in	5330 mm
Boom/Stick Option (HEX) 4
Boom/Stick Option (HEX) 4	Boom 18'7" (5680mm) / Stick 6'3" (1900mm)
Shipping Height of Unit	10 ft in	3050 mm
Shipping Length of Unit	31.1 ft in	9490 mm
Max Digging Depth	18.5 ft in	5630 mm
Max Reach Along Ground	28.7 ft in	8760 mm
Max Cutting Height	28.8 ft in	8780 mm
Max Loading Height	19.6 ft in	5960 mm
Max Vertical Wall Dig Depth	15.4 ft in	4680 mm
Boom/Stick Option (HEX) 5
Boom/Stick Option (HEX) 5	Mass Boom 17'1" (5200mm)
Shipping Height of Unit	10 ft in	3050 mm
Shipping Length of Unit	29.5 ft in	9000 mm
Max Digging Depth	18.7 ft in	5700 mm
Max Reach Along Ground	28.7 ft in	8760 mm
Max Cutting Height	28.8 ft in	8770 mm
Max Loading Height	19.4 ft in	5920 mm
Max Vertical Wall Dig Depth	16.1 ft in	4910 mm
Dimensions
Width to Outside of Tracks	10.4 ft in	3180 mm
Height to Top of Cab	9.6 ft in	2940 mm
Ground Clearance	1.6 ft in	475 mm
Counterweight Clearance	3.4 ft in	1045 mm
Tail Swing Radius	9 ft in	2750 mm
Length of Track on Ground	12 ft in	3650 mm

WE ARE PROFESSIONAL GLOBAL SUPPLIER OF USED CONSTRUCTION EQUIPMENT WITH HEAD OFFICE IN SHANGHAI &SUB-BRUNCH IN MALAYSIA. If you want to buy our machines ,please kindly contact me ,I am here waiting for you !
