HOT CAT 320BL TRACK EXCAVATOR Price,ALSO CAT330B/325B /320BL,JAPAN EXCAVATOR ,CAT EXCAVATOR
US$ 25,000 - 35,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
United States
Brand Name:
CAT
Model Number:
320BL
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Used Volvo 210 Excavator Second Hand VOLVO EC210BLC HYDRAULIC EXCAVATORUS$ 30,000 - 50,000MOQ: 1 Set -
Hitachi ZX330 Used Excavator For Sale Used Hitachi ZX330 Excavator Japan Hitachi ExcavatorUS$ 75,000 - 80,000MOQ: 1 Set
-
Used Excavator Komatsu Pc360, Pc300, Pc200, Pc240, Pc400, Pc450 Komatsu ExcavatorUS$ 60,000 - 120,000MOQ: 1 Set
-
Used Japan Hitachi ZX210LC Excavator For SaleUS$ 40,000 - 45,000MOQ: 1 Set
-
Used Caterpillar 330C Excavator For Sale-also Cat 320B,325B,330B,320D,325D,330BL,320BLUS$ 58,000 - 60,000MOQ: 1 Set
Place of Origin
United States
Brand Name
CAT
Model Number
320BL
Condition
Used
Year
2008
Make
Caterpillar
Moving Type
Crawler Excavator
Operating Weight
19400kgs
Bucket capacity
1.5M3
Maximum Digging Depth
7580mm
Machine Weight
19400kgs

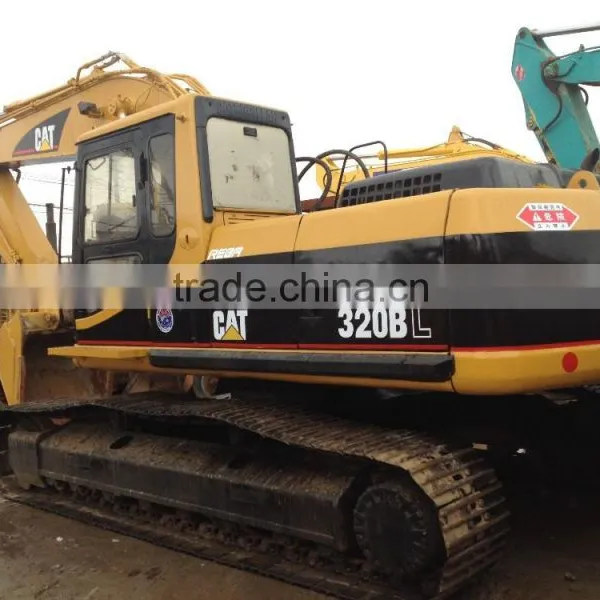

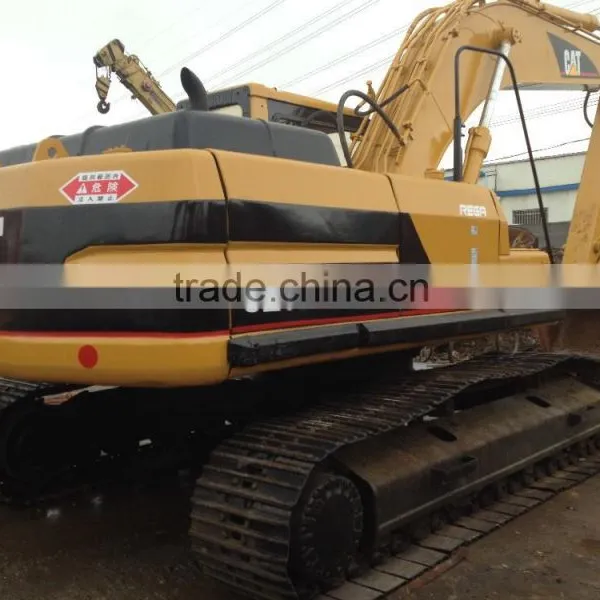

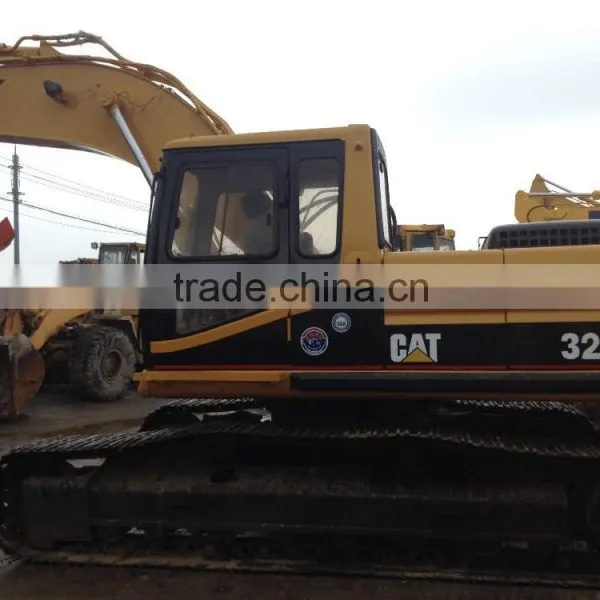

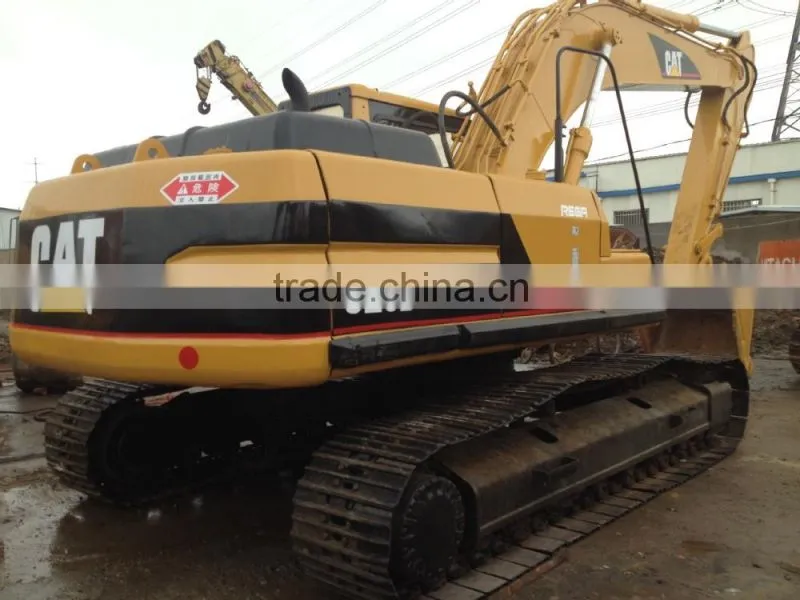

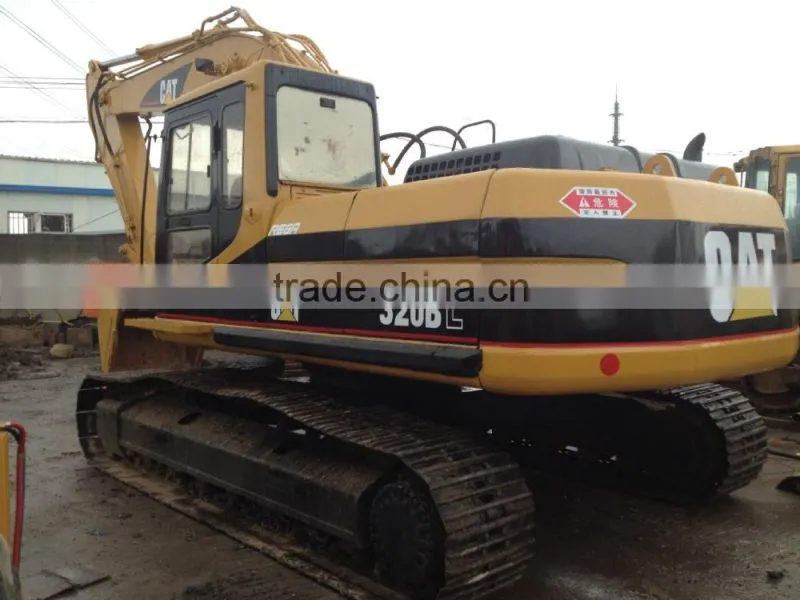

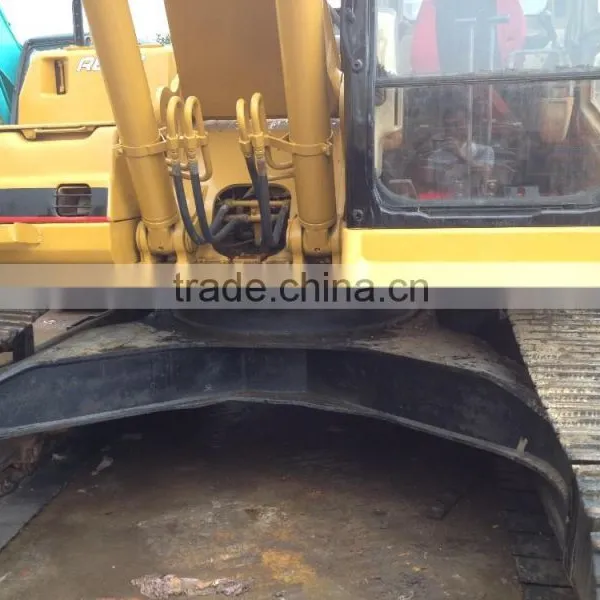

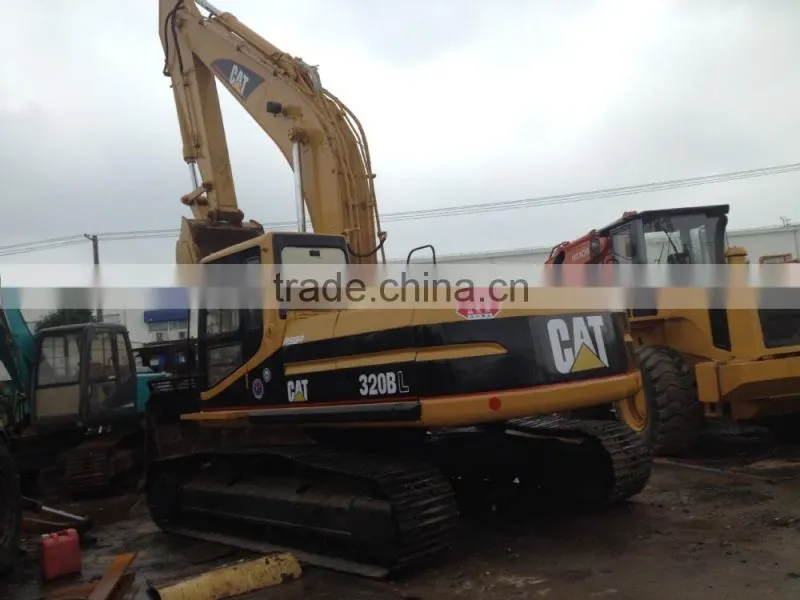

Used Caterpillar crawler excavator 320BL,second-hand hydraulic machine excavator with best price & good condition & nice service!
1.Good quality, better work performance and condition short work time.
2.We have more than 5000 sets of construction machinery in shanghai yard. we have sub branch in Malaysia. guaranteed quality.
3. Video available
4 .Original USA made 320BL used excavator
5. Free new paint & clean
6.3 years warranty for engine and pump
Selected Dimensions:
| A. SHIPPING LENGTH OF UNIT | 30.9 ft in | 9420 mm |
| C. SHIPPING HEIGHT OF UNIT | 11.3 ft in | 3430 mm |
| I. MAX CUTTING HEIGHT | 32 ft in | 9750 mm |
| J. MAX LOADING HEIGHT | 22.7 ft in | 6930 mm |
| K. MAX REACH ALONG GROUND | 34.9 ft in | 10630 mm |
| L. MAX VERTICAL WALL DIGGING DEPTH | 22.3 ft in | 6810 mm |
| M. MAX DIGGING DEPTH | 24.9 ft in | 7580 mm |
| Dimensions | ||
| B. WIDTH TO OUTSIDE OF TRACKS | 9.2 ft in | 2800 mm |
| D. LENGTH OF TRACK ON GROUND | 10.7 ft in | 3265 mm |
| E. GROUND CLEARANCE | 1.6 ft in | 475 mm |
| G. HEIGHT TO TOP OF CAB | 9.6 ft in | 2940 mm |
| H. TAIL SWING RADIUS | 9 ft in | 2750 mm |
| O. COUNTERWEIGHT CLEARANCE | 3.4 ft in | 1045 mm |
| Undercarriage | ||
| F. TRACK GAUGE | 7.2 ft in | 2200 mm |
| N. SHOE SIZE | 23.6 in | 800 mm |
Specification |
||
| Engine | ||
| MAKE | Caterpillar | |
| MODEL | 3066T | |
| GROSS POWER | 134 hp | 99.9 kw |
| NET POWER | 128 hp | 95.4 kw |
| POWER MEASURED @ | 1800 rpm | |
| DISPLACEMENT | 389 cu in | 6.4 L |
| ASPIRATION | Turbocharged | |
| NUMBER OF CYLINDERS | 6 | |
| Operational | ||
| OPERATING WEIGHT | 42769.7 lb | 19400 kg |
| FUEL CAPACITY | 89.8 gal | 340 L |
| COOLING SYSTEM FLUID CAPACITY | 6.6 gal | 25 L |
| HYDRAUILC SYSTEM FLUID CAPACITY | 58.1 gal | 220 L |
| ENGINE OIL CAPACITY | 5.4 gal | 20.5 L |
| SWING DRIVE FLUID CAPACITY | 1.6 gal | 6 L |
| OPERATING VOLTAGE | 24 V | |
| ALTERNATOR SUPPLIED AMPERAGE | 50 amps | |
| HYDRAULIC SYSTEM RELIEF VALVE PRESSURE | 4980 psi | 34335.9 kPa |
| HYDRAULIC PUMP FLOW CAPACITY | 97.7 gal/min | 370 L/min |
| Swing Mechanism | ||
| SWING TORQUE | 42050 lb ft | 57012.1 Nm |
| Undercarriage | ||
| SHOE SIZE | 23.6 in | 600 mm |
| MAX TRAVEL SPEED | 3.4 mph | 5.5 km/h |
| DRAWBAR PULL | 39800 lb | 177 kN |
| TRACK GAUGE | 7.2 ft in | 2200 mm |
| Buckets | ||
| REFERENCE BUCKET CAPACITY | 1.2 yd3 | 0.92 m3 |
| MINIMUM BUCKET CAPACITY | 0.45 yd3 | 0.34 m3 |
| MAXIMUM BUCKET CAPACITY | 2 yd3 | 1.5 m3 |
| Boom/Stick Option (HEX) 1 | ||
| BOOM/STICK OPTION (HEX) 1 | Boom 18'7" (5680mm) / Stick 12'8" (3900mm) | |
| SHIPPING HEIGHT OF UNIT | 11.3 ft in | 3430 mm |
| SHIPPING LENGTH OF UNIT | 30.9 ft in | 9420 mm |
| MAX DIGGING DEPTH | 24.9 ft in | 7580 mm |
| MAX REACH ALONG GROUND | 34.9 ft in | 10630 mm |
| MAX CUTTING HEIGHT | 32 ft in | 9750 mm |
| MAX LOADING HEIGHT | 22.7 ft in | 6930 mm |
| MAX VERTICAL WALL DIGGING DEPTH | 22.3 ft in | 6810 mm |
| Boom/Stick Option (HEX) 2 | ||
| BOOM/STICK OPTION (HEX) 2 | Boom 18'7" (5680mm) / Stick 9'7" (2900mm) | |
| SHIPPING HEIGHT OF UNIT | 9.6 ft in | 2930 mm |
| SHIPPING LENGTH OF UNIT | 31 ft in | 9440 mm |
| MAX DIGGING DEPTH | 21.8 ft in | 6640 mm |
| MAX REACH ALONG GROUND | 32.1 ft in | 9780 mm |
| MAX CUTTING HEIGHT | 31.1 ft in | 9470 mm |
| MAX LOADING HEIGHT | 21.6 ft in | 6570 mm |
| MAX VERTICAL WALL DIGGING DEPTH | 19.8 ft in | 6040 mm |
| Boom/Stick Option (HEX) 3 | ||
| BOOM/STICK OPTION (HEX) 3 | Boom 18'7" (5680mm) / Stick 8'2" (2500mm) | |
| SHIPPING HEIGHT OF UNIT | 9.9 ft in | 3010 mm |
| SHIPPING LENGTH OF UNIT | 31 ft in | 9460 mm |
| MAX DIGGING DEPTH | 20.2 ft in | 6150 mm |
| MAX REACH ALONG GROUND | 30.5 ft in | 9310 mm |
| MAX CUTTING HEIGHT | 30.1 ft in | 9160 mm |
| MAX LOADING HEIGHT | 21.2 ft in | 6460 mm |
| MAX VERTICAL WALL DIGGING DEPTH | 17.5 ft in | 5330 mm |
| Boom/Stick Option (HEX) 4 | ||
| BOOM/STICK OPTION (HEX) 4 | Boom 18'7" (5680mm) / Stick 6'3" (1900mm) | |
| SHIPPING HEIGHT OF UNIT | 10 ft in | 3050 mm |
| SHIPPING LENGTH OF UNIT | 31.1 ft in | 9490 mm |
| MAX DIGGING DEPTH | 18.5 ft in | 5630 mm |
| MAX REACH ALONG GROUND | 28.7 ft in | 8760 mm |
| MAX CUTTING HEIGHT | 28.8 ft in | 8780 mm |
| MAX LOADING HEIGHT | 19.6 ft in | 5960 mm |
| MAX VERTICAL WALL DIG DEPTH | 15.4 ft in | 4680 mm |
| Boom/Stick Option (HEX) 5 | ||
| BOOM/STICK OPTION (HEX) 5 | Mass Boom 17'1" (5200mm) / Stick 7'10" (2400mm) | |
| SHIPPING HEIGHT OF UNIT | 10 ft in | 3050 mm |
| SHIPPING LENGTH OF UNIT | 29.5 ft in | 9000 mm |
| MAX DIGGING DEPTH | 18.7 ft in | 5700 mm |
| MAX REACH ALONG GROUND | 28.7 ft in | 8760 mm |
| MAX CUTTING HEIGHT | 28.8 ft in | 8770 mm |
| MAX LOADING HEIGHT | 19.4 ft in | 5920 mm |
| MAX VERTICAL WALL DIG DEPTH | 16.1 ft in | 4910 mm |
| Dimensions | ||
| WIDTH TO OUTSIDE OF TRACKS | 9.2 ft in | 2800 mm |
| HEIGHT TO TOP OF CAB | 9.6 ft in | 2940 mm |
| GROUND CLEARANCE | 1.6 ft in | 475 mm |
| COUNTERWEIGHT CLEARANCE | 3.4 ft in | 1045 mm |
| TAIL SWING RADIUS | 9 ft in | 2750 mm |
| LENGTH OF TRACK ON GROUND | 10.7 ft in | 3265 mm |
WE ARE PROFESSIONAL GLOBAL SUPPLIER OF USED CONSTRUCTION EQUIPMENT WITH HEAD OFFICE IN SHANGHAI &SUB-BRUNCH IN MALAYSIA. If you want to buy our machines ,please kindly contact me ,I am here waiting for you !
