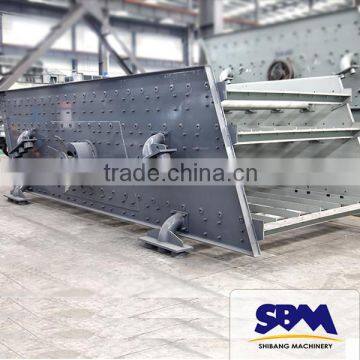

Vibrating screen 2ya1860 shanghai machines for sale:
- Max. Feed Size (mm):400
- Capacity (t/h): 7.5-700
- Layers:2-4
Vibrating screen 2ya1860 shanghai machines for sale is a new type of multi-layer, it is widely used for product grading in departments of mining area, sandstones, building materials, transportation, energy, chemical industry, etc. our company can provide vibrating screen of different specification and various vibration types according to the requirements of the consumers.
Vibrating screen 2ya1860 shanghai machines for sale application:
Vibrating screen 2ya1860 shanghai machines is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. For material quality of screen mesh is changeable, the application is quite extensive.
Vibrating screen 2ya1860 shanghai machines for sale working principle:
Vibrating screen 2ya1860 shanghai machines for sale has multi-layers and is of high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down along the long line. In screen grading, the material is separated mechanically on screen plates. Rolling bearings in vibrating screens are stressed by high, mostly shock-type loads. Moreover, the bearings, while rotating about their own axis, perform a circular, elliptical or linear vibrating motion. This results in high radial accelerations which additionally stress the bearings, and especially the cages, considerably. The operating speeds are usually very high. As a result, the bearing temperatures are up to 20 to 30 degrees Kelvin higher than in normal applications. In addition, considerable misalignments between the bearing locations and considerable shaft deflections have to be accommodated.
Vibrating screen 2ya1860 shanghai machines for sale structure:
Mainly by the sieve box, vibrator, suspension (or support) devices and motors and other components. The V-belt motor, spindle drive exciter, the exciter on the uneven weight of the centrifugal force of inertia, so that by the vibrating screen box. Change the eccentric weight exciter, available in different amplitude.
Vibrating screen 2ya1860 shanghai machines for sale main advantages:
1, due to the strong vibration of screen box, plug the sieve to reduce the phenomenon of the material, so that the sieve has a high screening efficiency and productivity.
2, simple structure, convenient removable screen surface.
3, the screening energy consumed per ton less material.
| Model | Layers | Screen Area (m²) | Sieve Pore Size (mm) | Spec. of Screen (mm) | Max. Feed Size (mm) | Capacity (t/h) | Vibrating Frequency (Hz) | Double Amplitude (mm) | Power (Kw) | Weight (Excluding Motor) (t) | Overall Dimension (LxWxH) (mm) |
| 2YA1237 | 2 | 4.44 | 3~50 | 1200x3700 | 200 | 7.5~80 | 800~970 | 8 | 5.5 | 2.34 | 4642x2250x2659 |
| 3YA1237 | 3 | 4.44 | 3~50 | 1200x3700 | 200 | 7.5~80 | 800~970 | 8 | 7.5 | 3.05 | 4898x2250x3133 |
| 2YA1548 | 2 | 7.2 | 5~50 | 1500x4800 | 400 | 50~208 | 970 | 8 | 15 | 5.33 | 5802x2585x3053 |
| 3YA1548 | 3 | 7.2 | 5~50 | 1500x4800 | 400 | 50~250 | 970 | 8 | 15 | 6.07 | 6046x2585x3537 |
| 2YA1848 | 2 | 8.64 | 5~80 | 1800x4800 | 400 | 50~260 | 970 | 8 | 18.5 | 6.65 | 5802x2947x3053 |
| 3YA1848 | 3 | 8.64 | 5~80 | 1800x4800 | 400 | 50~300 | 970 | 8 | 18.5 | 6.93 | 6046x2947x3538 |
| 2YA1860 | 2 | 10.8 | 5~80 | 1800x6000 | 400 | 50~300 | 970 | 8 | 22 | 7.52 | 7011x2947x3471 |
| 3YA1860 | 3 | 10.8 | 5~80 | 1800x6000 | 400 | 50~350 | 970 | 8 | 22 | 7.72 | 7243x2987x3955 |
| 4YA1860 | 4 | 10.8 | 5~80 | 1800x6000 | 400 | 50~350 | 970 | 8 | 22 | 8.70 | 7498x2987x4439 |
| 2YA2160 | 2 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.2 | 7076x3402x3666 |
| 3YA2160 | 3 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.5 | 7284x3467x4092 |
| 4YA2160 | 4 | 12.6 | 5~100 | 2100x6000 | 400 | 100~500 | 730 | 6~8 | 30 | 10.8 | 7551x3467x4582 |
| 2YA2460 | 2 | 14.4 | 5~150 | 2400x6000 | 400 | 150~700 | 730 | 6~8 | 37 | 10.4 | 7046x3770x3603 |
| 3YA2460 | 3 | 14.4 | 5~150 | 2400x6000 | 400 | 150~700 | 730 | 6~8 | 37 | 10.8 | 7289x3 |
Customer profile
One if the locally biggest factories with the best field planning visited by local government delegation many times, setting foot in sandstone industry for the first time.
It purchase ZSW600*130 feeder machine. GZD200*120 feeder machine, PE1000*1200 jaw crusher, 2 sets of PFW1315 impact crushers, 2 sets of 3YA2160 oscillating screens, VSI1140 centrifugal impact crusher, 2YA2460 oscillating screen, XSD3016 wheel type sand wash, etc

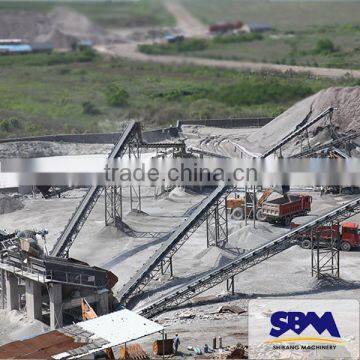

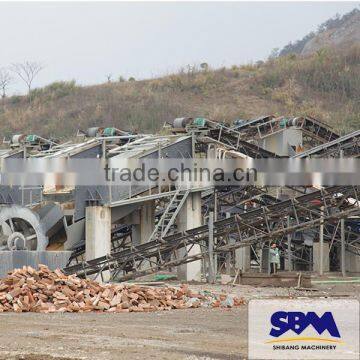

Production line condition
Daily running: 9-10 hours
Feedstock: granite, size 400-600mm
Finished product: 30mm, 21mm gravel, sand<4mm, fed to concrete batching plant
Configuration: ZSW600*130 feeder machine. GZD200*120 feeder machine, PE1000*1200 jaw crusher, 2 sets of PFW1315 impact crushers, 2 sets of 3YA2160 oscillating screens, VSI1140 centrifugal impact crusher, 2YA2460 oscillating screen, XSD3016 wheel type sand wash.
Main Specifications
| Model | Max.feed size(mm) | Setting Adjustment Range(mm) | capacity(TPH) |
| PE1000*1200 | 850 | 195-265 | 315-550 |
| PFW1315 | 600 | 180-320 | 160-200 |
| Model | Max.feed size(mm) | capacity(TPH) | Power(kw) |
| 2YA2460 | 400 | 150-700 | 37 |
| 3YA2160 | 400 | 100-500 | 30 |
| GZD200*120 | 300 | 80-500 | 2*2.2 |
Customer’s comment
Because I set foot in sandstone industry for the first time, I consult many fellow experts for configuration. Old experts very affirm the production line matched by Shibang Company for us. It is customized according to our stone and yield. We feel quite relieved. It is just suitable for use. Our local machine sand market is not only very good in this year, but also supported by policy. Therefore we also order sand-making machine, which is also because we trust in Shibang’s quality and service.
---Mr. Song, the Board Chairman and General Manager of this company
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
About SBM
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry.
About SBM Factory
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Q: Why we believe in Shanghai shibang company?
A:
1. More than 20 years experience.
2. SBM is the leading professional supplier of solution, equipments and service for crushing and grinding industry.
3. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and
part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when
the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you ,please let us know your material and capacity.
Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit SBM working machines or complete plant in the site.
To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of SBM, they are now strategically located home and abroad, working for our customers.
In order to recommend suitable design for you, please kindly tell me:
♥ What is your raw material to process?
♥ What is per hour capacity you want? like 6.5-20PTH
Now, please click the following contact to send us email !
↓↓↓
