The hydraulic rock breaking is the most popular equipment for the large quarry and mining industry, HPC series hydraulic rock breaking's structure is more reasonable, with more advanced technical parameters and excellent performance in the manufacture, installation, use and maintenance. hydraulic rock breaking can crush materials with middle and high hardness such as ironstone, copper ore, granite, basalt, cobblestone, marble, limestone and so on. It is widely used in the high automatic crushing line which has strict requirement for the shape and crushing ratio of the end products.
The application of hydraulic rock breaking :
The hydraulic rock breaking are widely applied in the cement making industry, building, sand making, metallurgical industry, etc. They are suitable for both metallic minerals and non-metallic minerals, such as iron ore, nonferrous metal ore, granite, limestone, quartzite, sandstone, and pebble, etc. As for recycling materials, hydraulic rock breaking also can play a great role, they are used to recycle construction waste, copper slag, steel slag, and glass scraps.
Operating principle of hydraulic rock breaking:

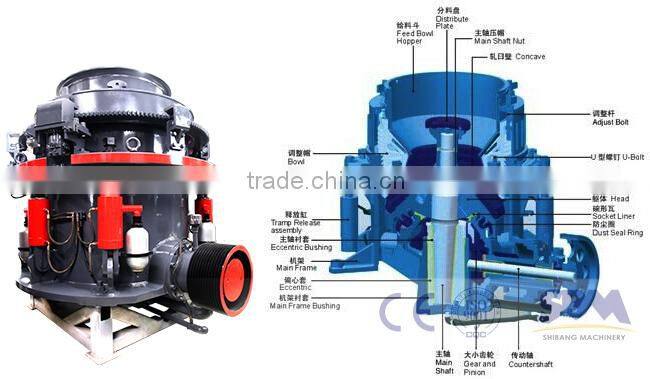

The hydraulic rock breaking (cone crusher) consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.
During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
The features of hydraulic rock breaking :

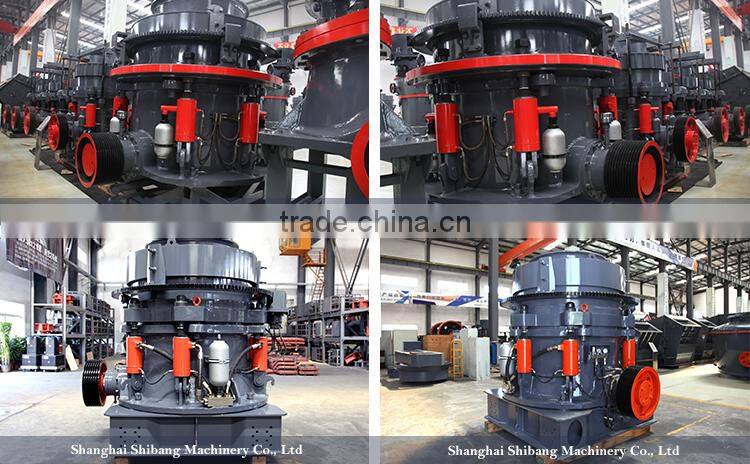

HPC series hydraulic rock breaking has a better performance compared with spring cone crusher and ordinary Hydraulic pressure hp cone cone crusher:
1. High crushing ratio and production efficiency
2. Less spare part consuming and low operation cost
3. between-layer pressuring crushing and better finished product shape.

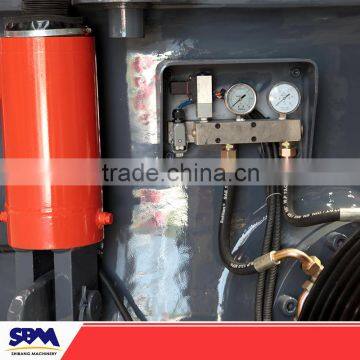

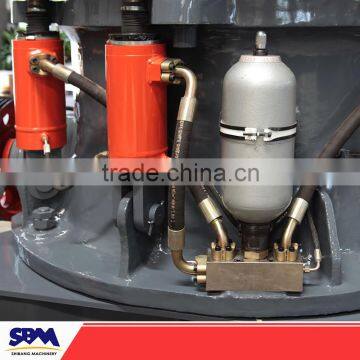

4. Hydraulic pressure protection and hydraulic pressure cavity clearing, high automatization and less stop production and repairing time.
5. Thin oil lubrication makes the service time increased.
6. Manifold crushing cavity
7. Easy maintenance and operation.
8. The hydraulic rock breaking can provide customers a higher capacity, better product shape, and easy be operated.
| Model | Movable Cone Diameter (mm) | Chamber Style | Min. Discharging (mm) | Max. Feeding (mm) | Capacity (t/h) | Power (kw) | Machine Size (mm) |
| HPC220 | 1220 | Coarse | 19 | 210 | 185-300 | 220 | 2726x1950x2182 |
| Fine | 13 | 105 | 150-210 | ||||
| HPC400 | 1570 | Coarse | 30 | 290 | 400-500 | 400 | 3447x2830x2977 |
| Fine | 16 | 135 | 260-400 |

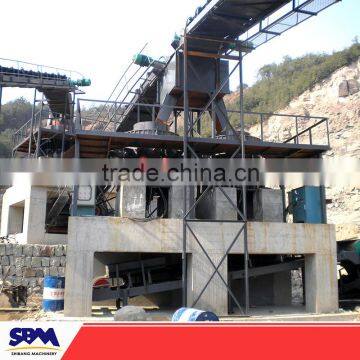

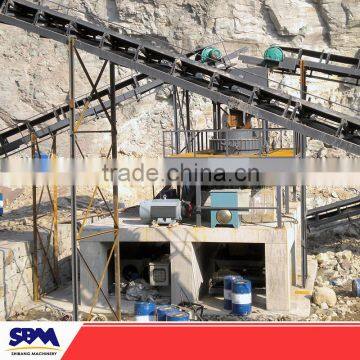

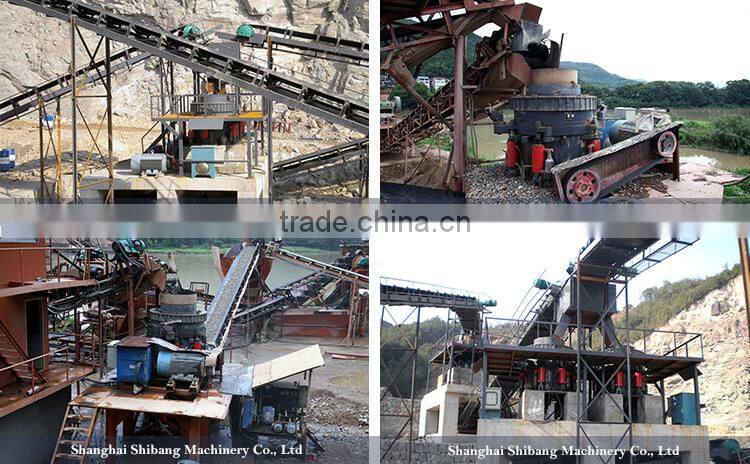

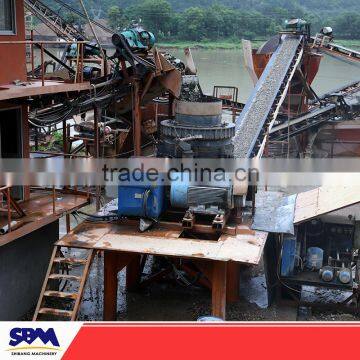

The company regions to supply feeding and mixing plant of gravel and machine sand
It successively purchase 2 suits of HPC220 cone crushers from our company, used in different production lines
Production Line Condition
Daily running: 6-7 hours
Feedstock: cobblestone, size≤150mm
Finished product: 16-30mm gravel, ≤5mm machine sand
Configuration: HPC220, oscillating screen
Main Specifications
| Model | Discharge setting min(mm) | Feed openning(mm) | capacity(TPH) |
| HPC220 | 13 | 225 | 150-430 |
Customer’s comment
The first cone crusher I purchase is used to crush cobblestone. After use, it is satisfying in yield and low in maintenance cost, so I purchase the second suit of equipment from Shibang, used to crush granite. It is not only conforms to expectation, but also is very stable in quality.
---General Manager Lin of sandstone company
What are the evaluation of the customers to our equipments?
- "We have decided to increase the purchasing of jaw crusher as it chases what it says is highly efficient and environmental friendly." - Client From Zimbabwe
- "Cooperating with SBM brings us more opportunities to maximize our production. Especially its jaw crusher and jaw crusher spare parts just match our plant." - Mr. Bruce Munro, Chief Executive Mining - Client From Australia
- "Dealing with SBM Machinery especially jaw crusher trading is the best choice since i started importing & exporting of mining equipment." - Clients From South Africa
- "The company is worth a win-win business of mining equipment after i was touched by their jaw crusher service." - Clients From India
Shanghai Shibang Machinery Co., Ltd participate in various exhibitions frequently.
Such as Bauma China,China Import and Export Fair , Asia-pacific's International Mining Exhibition, Bauma Africa, CONEXPO Latin America , etc.
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our SBM, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
Minimum Order Quantity
A: The minimum order quantity is 1 Set
Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
FOB Prices
A: Different machine has different FOB price, please send your interest type, raw material, capacity, Your contact information, we will give you a reasonable FOB price as soon as possible
Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Products warranty
A: The Products warranty is one year.
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc. Technological support SBM has been largely adopting new technologies, new techniques and high-tech equipments. And SBM also has strict and effective quality control system.
1. We are Manufacturer (Not Dealer):
All machineries from SHANGHAI SHIBANG MACHINERY CO., LTD are made by ourselves, with lower price, good quality and assured full after service.
2. Training & Service:
1.We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
2.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business:
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
♥ What is the type and size of raw material?
♥ What is your required capacity(t/h)?
