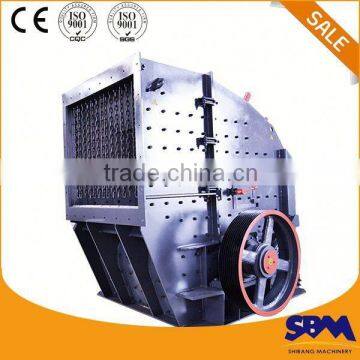

1. hemimorphite impact crusher Descriptions:
The hemimorphite impact crusher is acknowledged in this field for a long time and gives smooth running resulting power economy and higher efficiency. Our hemimorphite impact crusher is mainly used to crush many kinds of large, medium, small materials such as rock or stone whose side length is less than 500mm, and compression resistance should not be more than 350Mpa. And The hemimorphite impact crusher is widely used in hydroelectricity, highway, artificial rock, stone and sand, building material, etc.
2. hemimorphite impact crusher Advantages
1. Counter-plate and plate hammer clearance can be adjusted easily and effectively control discharge particle size, particle shape well;
2. Unique counter tooth plate, high-chrome plate hammer, impact resistance, abrasion resistance,large of impact;
3. No keying, the overhaul is convenient,the economy is reliable.
4. Comprehensive of Broken-function, high productivity,small of mechanical abrasion, high of the overall efficiency;
5. A reasonable board hammer structure, with advantages of faster loading and unloading, multi-transposition, etc., can greatly shorten the time for changing the board hammer.

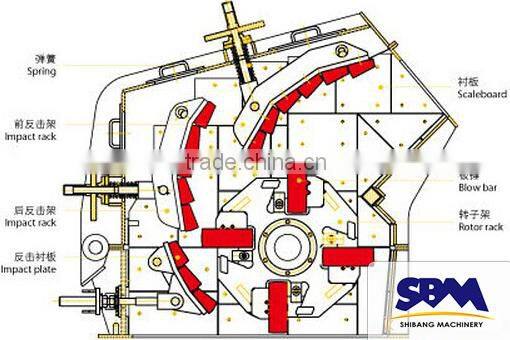

3. hemimorphite impact crusher Working Principle :
This hemimorphite impact crusher with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. Mining machinery from China manufacturer best hemimorphite impact crusher
4. hemimorphite impact crusher Application :
hemimorphite impact crusher is used for crushing coal , various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc.
It is used to crush coarse, medium and fine stones whose compressive strength is no more than 300MPa and Moh's hardness is lower than the 8th degree, such as limestone, basalt, granite, concrete, slag, cement block, etc.
5. hemimorphite impact crusher Technical Parameters:
| S model | Spec. | Feed Opening (mm) | Max. Feed Size (mm) | Capacity (t/h) | Power (kW) | Weight (t) |
| PFW1210 | 1150X960 | 570X990 | 250 | 70-120 | 90-110 | 15.0 |
| PFW1214 | 1150X1400 | 570X1430 | 250 | 90-170 | 132-160 | 19.0 |
| PFW1315 | 1300X1500 | 625X1530 | 300 | 180-270 | 160-200 | 25.0 |
| PFW1318 | 1300X1800 | 625X1830 | 300 | 220-300 | 200-250 | 30.0 |
| P model | Spec. | Feeding size (mm) | Max. feeding size (mm) | Capacity (t/h) | Power (kW) | Weight (t) |
| PFW1210 | 1150X960 | 1100X1030 | 400 | 90-160 | 90-110 | 17.0 |
| PFW1214 | 1150X1400 | 1100X1430 | 500 | 130-200 | 132-160 | 22.0 |
| PFW1315 | 1300X1500 | 1200X1530 | 600 | 180-320 | 160-200 | 29.0 |
| PFW1318 | 1300X1800 | 1200X1830 | 700 | 240-400 | 200-250 | 34.0 |

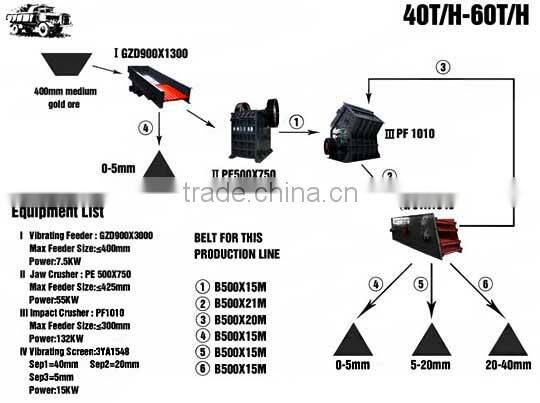

The line design of 40-60 t/h - Small stone crushing line is simple for our sales manager with so many quarry customers/ clients.
The crushing line can be widely used in mine ore mining, construction buiding materials, chemistry industry, suitable for crushing quarry rocks and mineral ores such as iron ore, river stone, feldspar, basalt, dolomite, barite, limestone, slag, marble, quartz, granite, cement, clinker, coal and so on. Stone crusher machines are featured with large crushing rate, high yield, equal product size, simple structure, reliable operation and easy maintenance, economic operating costs etc.
Here is a sample of 40-60 t/h - Small stone crushing line for limestone crushing process.
List of all typical equipment and products
| NO. | Equipment | Model | Motor(KW) | Number |
| I | Hopper | LC3000X4000 | 1 | |
| II | Vibrating Feeder | GZD-300×90 | 2.2 * 2 | 1 |
| III | Jaw Crusher | PE-500×750 | 55 | 1 |
| IV | Impact Crusher | PF-1010 | 55 | 1 |
| V | Vibrating Screen | 3YA1860 | 22 | 1 |
| VI | Belt Conveyor | 800mm | 5 | |
| VII | Packaging Machine | PM60 | 30 | 1 |
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our SBM, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
Minimum Order Quantity
A: The minimum order quantity is 1 Set
Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
FOB Prices
A: Different machine has different FOB price, please send your interest type, raw material, capacity, Your contact information, we will give you a reasonable FOB price as soon as possible
Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Products warranty
A: The Products warranty is one year.
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc. Technological support SBM has been largely adopting new technologies, new techniques and high-tech equipments. And SBM also has strict and effective quality control system.
