cheap mpeg4 .h.264 pvr dvb t2 set top box dvb t2

                            DVB-T2 Specification

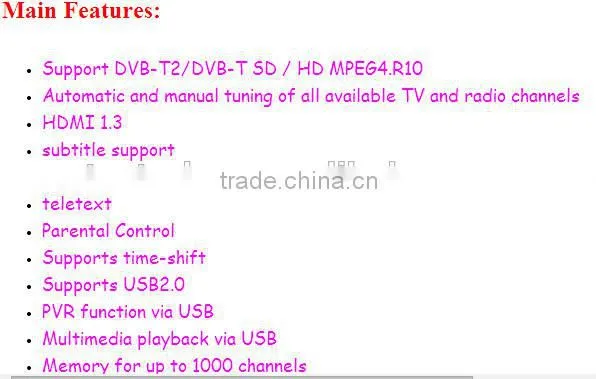

Main Features:

1.Mstar 7T01 chipset(Built in Demodulator)

2.DVB-T2 Receiver 1080p Full HD MPEG4 H.264.PVR

3.Full DVB-T2/DVB-T compatible

4.subtitle support

5.Support MPEG-1, MPEG-2, MPEG-4 and h.264 decoder(up to 1920*1080 pixels)

6.USB 2.0 , PVR, Time shifting and media play with U-Flash or HDD

7.Frequency Range:VHF174~230MHZ,UHF 470~862MHZ

8.Support HDMI1.3 output, scart or av output, coaxial, RF in and output

9.Auto and manually scan all available TV and radio channels

10.Multi-language supported

11.Aspect ratio  16:9 and 4:3

12. powerful and highly effective 7 days EPG Function

13.support teletext

14.parental lock

s up to 1000 programs and keeps in memory while power off

Tuner:

RT836/MXL608

InputFrequency:VHF174~230MHZ.UHF 470~862MHZ

RF Input level:-78~-20dBm

RF Bandwidth:7MHZ and 8MHZ

Singal input:IEC-TYPE Female

QPSK,16QAM,64QAM,256QAM

FEC:1/2,2/3,3/4,4/5,5/6

Video

Decoder format:

MPEG4 AVC/H.264 HP&L4MPEG2 MP&MP.HL

Output Format:

480i/480p/576p/576i/720p/1080p/1080i

Output port:

HDMI,AV/Scart(optional)

Audio

Decoder Format:

MPEG-1(layer 1&2&3),WMQ,AAC

Audio output :

Coaxial ,L/R(AV or Scart)

USB 2.0

Supported Capcity:500GB

Supported Media:MP3,WMA,JPEG,BMP,AVI,MKV

Power

Supply voltage:

220-240v 50/60hz

Maximum power consumption:

<10w

Standby power

<1w

Hardware interface

Indicators: Power signal lock

HDMI1.3

IR Receiver:38KHZ

Loop through output :IEC-type, connector,single tuner

LED Display

Coaxial output

USB 2.0

YPbPr output(optional)

Scart output(optional)

Accessories

AV cable

User manuel

Remote control

Battery(optional)

Warranty card
