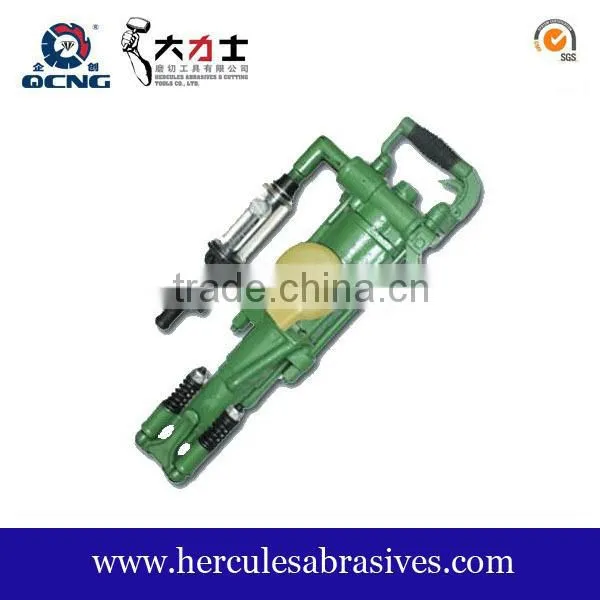

Y6 Y20 Y24 Y26 Air Compressor Jack Hammer

Y6 Y20 Y24 Y26 Air Compressor Jack Hammer thumbnail-1
Y6 Y20 Y24 Y26 Air Compressor Jack Hammer photo-1
US$ 100 - 1,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
QCNG
Model Number:
Y6/ Y20/ Y24/ Y26/ YT24/ YT28
Contact Supplier Request Quote Chat Now
Xiamen Qicheng Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name QCNG
Model Number Y6/ Y20/ Y24/ Y26/ YT24/ YT28
Type Other, Air Hammer, air jack hammer
Average Air Consumption ≤9.5/ 26/ ≤50/60/67/ 81
Maximum Torque Adjustable
No-Load Speed 8000rpm

Product Description



1.  Pneumatic rock drilling machine includes: Y6, Y20, Y24, and Y26(hand held), YT24 and YT28(air leg).

This type rock drills use compressed air as power, mainly used in construction sites, various types of mines, tunnel, railways, water conservancy construction and national defense construction areas for drilling operations.



YT24 YT28 pusher leg rock drills always works with support air leg, can be used for any angle drilling.

Y6, Y20, Y24, and Y26 hand held rock drills works without air leg, mainly use for downwards drilling.



2.  Gasoline rock drilling machine includes: YN27, YN27C and YN27J.

This type rock drill adapt to outside situations where there is no water, no electronic power and no air compressor. It's a kind of hand held rock drill with gasoline engine, air pump and rotation plumbum equipment for running or stop. It can be used for breaking, drilling, blasting, tamping splitting and ramming.



Qcng supplied rock drilling machines have following advantages:



1. Reasonable design                            2. Light weight

3. Convinient operation                          4. High efficiency

5. Fast drilling velocity                            6. Low Air consumption

7. Long life parts etc.



Product specifications:

Type Weight Air consumption Bore Dia. Drilling depth Air pressure
Y6 6kg ≤9.5 L/s Φ20 mm 0.5 m 0.4 Mpa



Model Weight Air consumption Length Shank Bore Dia. Drill depth Impact rate Hose connection
  kg L/s mm mm mm m Hz mm
Y20 18 26 605 22*108 30-42 3 30 16 or 19
Y24 23 ≤50 604 22*108 30-42 3 34 16 or 19
Y26 25 ≤60 608 22*108 30-42 3 38 16 or 19



Model Weight Air consumption Length Shank Bore Dia. Impact rate Air Hose connection Water Hose connection
  kg L/s mm mm mm Hz mm mm
YT24 24 67 678 22*108 30-42 31 19 13
YT28 26 81 661 22*108 30-42 37 25 13





Y6 Y20 Y24 Y26 air compressor jack hammer


Packaging & Shipping



Packing: Inner packing use the plastic bag(waterproof packaging .Outer packing are choose according to the transport way .

Shipping:By air or ship





Our Services





1. Engineer available to service machinery oversea.

2. Proposal for quarry development and plan, if necessary.

3. Top quality machine and accessory are offer, such as quarry wire saw machine, diamond wire saw, diamond beads etc.

4. Professional One-Stop Service for your production line.

Company Information



Y6 Y20 Y24 Y26 air compressor jack hammer
Xiamen Qicheng Import & Export co.,Ltd is a professional supplier of stone processing machines and diamond tools.
  • Stone machines include quarry exploiting, block cutting, slab polishing & grinding, tiles cutting, countertop processing, engraving etc. For example, Quarry Wire Saw, Double Blades Quarry Machine, Multi-blades Block cutting Machine, Multi-Heads Grinding Machine, Radiam Arm Grinding Machine, Laser Bridge type Edge cutting Machine, Manual Edge Cutting Machine, CNC Machine etc.
  • Diamond tools product range from stone/ ceramic/ construction cutting, drilling, profiling to grinding. Such as Diamond Wire Saws, Diamond Blades and Segments, Diamond Polishing Pads, Diamond Fickert Abrasives, Frankurt Abrasives, Diamond Router Bit, Cup wheel etc.
We started exporting machinery and diamond tools since 2009. We keep high quality, reasonable price and excellent after-sales service. Meanwhile, we won respect of customers and established tight and long term business relationship with customers. We welcome customers to contact us for business proposal and inquiry.
Company Certification:
Y6 Y20 Y24 Y26 air compressor jack hammer
Exhibition:
Y6 Y20 Y24 Y26 air compressor jack hammer
