Product Details
Place of Origin: | Fujian, China | Brand Name: | QCNG | Model Number: | QCSJ-75 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

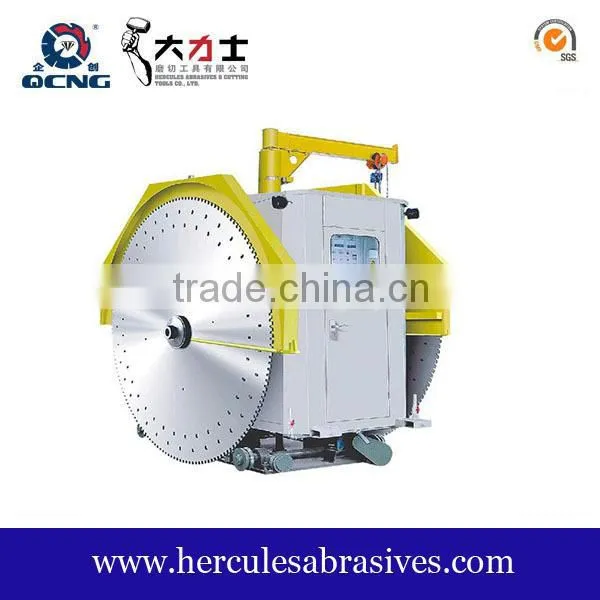

Product name: Popular double blades cutting machine for granite stone quarry
Technical character | |
1.This machine is a modification of original double-blade mining machine. The rising and falling of main spindle is controlled by the hydraulic pressure advantages are small gap,a little wear,no vibration,stable structure and high cutting precision;the service life of cutter head is increased. 2.The cylindrical guide rall is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system,so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced.It is a mine quarrying machine with significantly increased comprehensive benefits.
| |
Max. Diameter of blade | 3000 mm |
Max.cutting depth | 1250 mm |
Max. cutting width | 1360-1900 mm |
Main motor power | 45kw *2 |
Water consumption | 5 m3/h |
Total power | 97.7kw |
Approximate weight | 6500-8000kg |
Overall dimension(L*W*H) | 3600*1500*2700/3000 mm |
More detail images of Popular double blades cutting machine for granite stone quarry :
1. Engineer available to service machinery oversea.
2. Proposal for quarry development and plan, if necessary.
3. Top quality machine accessory are offer, such as Diamond blades, diamond segment, welding machine etc.
4. Professional One-Stop Service for your production line
- Stone machines include quarry exploiting, block cutting, slab polishing & grinding, tiles cutting, countertop processing, engraving etc. For example, Quarry Wire Saw, Double Blades Quarry Machine, Multi-blades Block cutting Machine, Multi-Heads Grinding Machine, Radiam Arm Grinding Machine, Laser Bridge type Edge cutting Machine, Manual Edge Cutting Machine, CNC Machine etc.
- Diamond tools product range from stone/ ceramic/ construction cutting, drilling, profiling to grinding. Such as Diamond Wire Saws, Diamond Blades and Segments, Diamond Polishing Pads, Diamond Fickert Abrasives, Frankurt Abrasives, Diamond Router Bit, Cup wheel etc.
