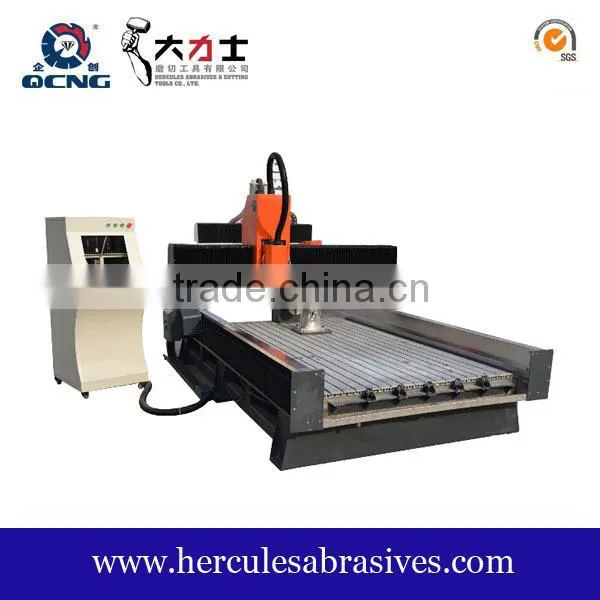

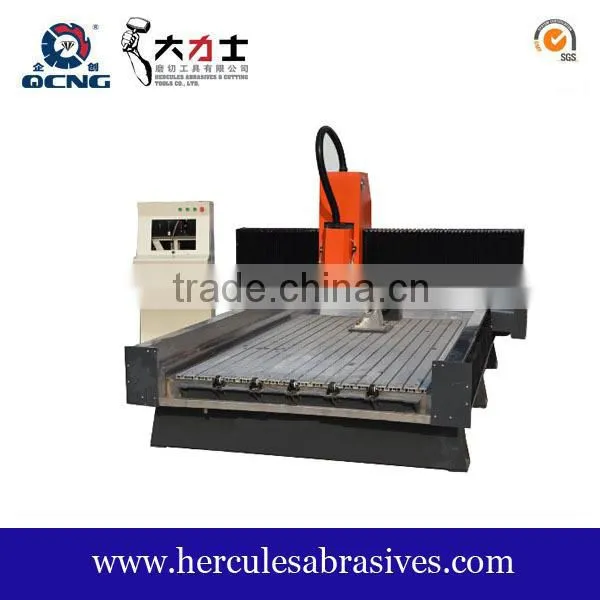

3d CNC engraving machine for stone carving

1. The machine itself is made of welded square thick-walled steel. Bed through finite element analysis and design, offer a rigid and stable processing platform for the machine. And all parts of the bed before the bed has been processed to eliminate stress.
2. Working table adopt thickn-wall aluminum table, convenient and practical fixing the material.

3. X, Y-axis adopt precision gear and linear guide bilateral drive. The speed is faster, stronger cutting energy, better efficiency and cost savings. That can be cut for heavy material. The linear guide adopt the imported Taiwan PMI linear guide rail.

4. Z axis adopt linear guide and precision ball screw transmission. It also use imported TaiWan PMI brand.

5. The machine is working in high processing speed, high efficiency. The processing speed is up to 15 m /min, the maximum free loading speed is up to 20 m/min.

1. precision: ± 0.05mm
2. Repeat positioning accuracy: ± 0.05mm

1. The spindle motor: 5.5KW water-cooled spindle motor.
2. Speed: 6000-24000rpm / min
3. Rated voltage: 380V, 50HZ
4. The clamping tool: ER25 dia3.175mm-dia6mm-dia12.7mm

1. The control system use the genuine Shanghai Weihong computer-controlled system.

2. It can be realized Resume carving,Power-off Memory Function, processing time prediction.
3. Can be Simulation operation
4. fault alarm, fault feedback, fault display and fault diagnosis.

1. The entire electrical cabinet adopt rated voltage 380V and rated frequency 50HZ.
2. The drive motor and the drive device use the best domestic Fuxing stepper motors and drives.
3. Control spindle inverter use Best Inverter.
4. Control cable adopt the professional cable with anti-pressure and ultra-wearable .
5. electrical cabinets configured and installed in accordance with international standards.
