Specifications
automatic laser welderNC system of the work bench :PLC or PC
same styple ,defferent Walt-300W/400W
cooling method: water

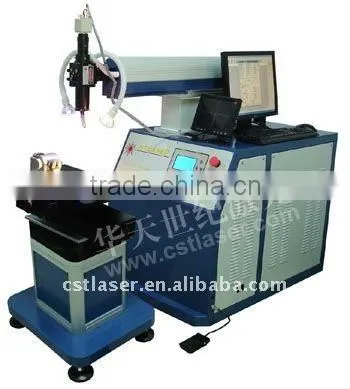

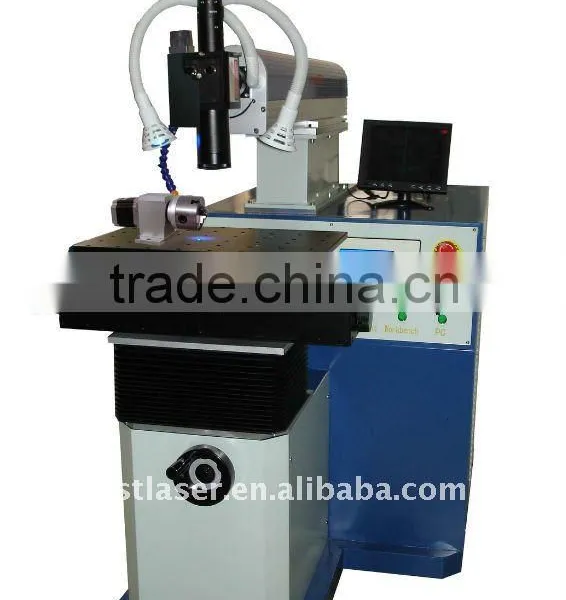

Automatic laser welding machine
high speed, high efficiency,high quality
It uses ceramic converging cavity technology imported from the Britain, as well as unique light beam mode selection and truing technology, ensuring high output power and good light beam mode, double-pulse xenon lamp excitation, constant current laser power supply, programmable pulse and intelligent system management, as well as automatic protection of misoperation and overtemperature. PLC programmable controller or industrial PC control, and automatic moving platform in X/Y axis are provided. Semiconductor red light indication positioning is provided to move manually upwards and downwards to focus and rotate the incidence angle of the laser.
Widely used in aviation, machinery, electronics, communication, energy, chemical, automobile manufacture, welding of automobile parts, hydraulic lever, gasoline filter, automobile tail gas sensor, solenoid valve and start motor stator, and seal welding lithium battery.
Precision spot welding and seal welding of mobile phone battery, energy battery, metallurgy (welding of silicon steel plate), military industry sensor, motor blade welding electronic components, welding of (relay) electric apparatus industry, silicon steel plate, air conditioner motor rotor, leakage protector
Model |
HT-WL200 |
Laser wavelength |
1064nm |
Rated laser output power |
200W |
Adjusting range of light spot |
0.1-3.0mm |
Pulse width |
≤20ms |
Pulse frequency |
≤50Hz |
Sighting positioning method |
Red light, CCD monitor system (optional) |
NC system of the work bench |
PLC or PC |
Stroke of the work bench |
200*200mm to 1200*1200mm |
Positioning precision |
0.02mm |
Repeating positioning precision |
±0.01mm |
Work bench bearing |
50kg |
Power supply |
380V/3-phase/50Hz/40A |
Cooling method |
Water cooling |
Master unit dimensions (L*W*H) |
1600mm*800mm*1500mm |
