VOLVO Diesel Generator!

VOLVO Diesel Generator! thumbnail-1
VOLVO Diesel Generator! photo-1
US$ 5,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
VOLVO
Model Number:
68GF~220GF
Contact Supplier Request Quote Chat Now
Zhengzhou Yingfeng Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name VOLVO
Model Number 68GF~220GF
Output Type AC Three Phase
Speed 1500RMA
Frequency 50HZ/60HZ
Rated Power 68~220KW
Rated Voltage 400/230v

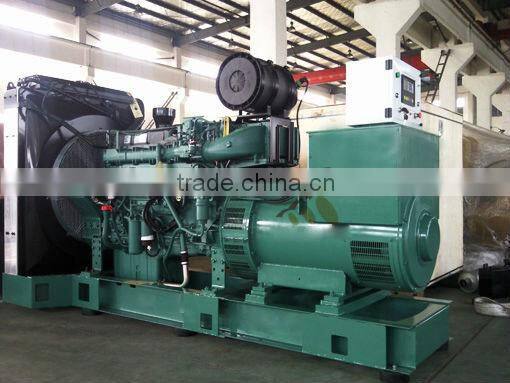

Volvo diesel generator



Prime Power:

This rating is for the supply of continuous electrical power (at variable load). There is no

limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power:

This rating is for the supply of continuous electrical power (at variable load) in the event

of a utility power failure. No overload is permitted.

Rated voltage :
Available with customer requirements.
2. Specification of diesel engine:
Engine brand VOLVO
Fuel System Direct Injection
Speed Governor Electrical
Cooling System Forced Water Cooling Cycle
Speed Stability (%) ≤1%
Starting Method DC24V Electrical starting
3. Specification of alternator
Alternator brand MARATHON
Alternator model MP-80-4
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%



Model

Power

 A

Diesel

Engine

Model

Diesel

engine

KW



Cylinder

 Neumbe

diameter

  cylinder

Stroke

Displacement

Compression

 ratio

oil

Fuel

Consumption

g/KW.h

Weight

kg

Package size


mm

mm



Capacity



mm×mm×mm


Standby

Rated Power



L



68GF

75

68

135/122

TD520GE

85/77.5

4

108

130

4.76

17.5:1

13

213

1070

2280×755×1377

80GF

88

80

158/144

TAD520GE

102/94

4

108

130

4.76

17.5:1

13

206

1130

2280×755×1377

104GF

115

104

207/187

TD720GE

128/117

6

108

130

7.15

17.5:1

20

211

1365

2745×746×1357

121GF

133

121

240/218

TAD720GE

153/140

6

108

130

7.15

17.5:1

20

197

1399

2745×866×1357

149GF

164

149

296/268

TAD721GE

179/162

6

108

130

7.15

18.1:1

34

204

1410

2510×980×1515

165GF

181

165

326/305

TAD722GE

197/179

6

108

130

7.15

18.1:1

34

205

1480

2580×870×1495



 VOLVO Diesel generator!
