Specifications

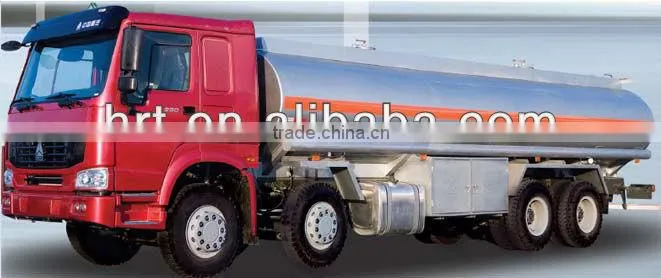

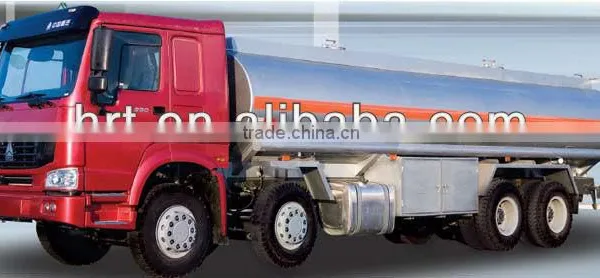

JHL5310GHY Chemical liquid tank truck 28CBM
convenient for the loading and unloading
stable center of gravity
Characteristic :
1. JHL5310GHY Chemical liquid tank truck 28CBM accord with Ergonomic design ,the frame bearing surface is low ,carrying convenient ,smooth transportation . Optimization of body structure can be divided into branch warehouses while transporting ,to achieve the different liquid packaging . Loading and unloading liquid can be measured by meter automatically.
2. The tank body can be made of stainless steel ,glass steel ,carbon steel and other materials ,and the interior has passed the strict treatment of acid alkali ,widespread use in methanol ,sulfuric acid ,hydrochloric acid , hydrogen peroxide and other liquid transportation .
Main specification:
|
Item |
Unit |
Value |
|
No.1 |
No.2 |
|||
1 |
Type
|
|
JHL5310GHY |
JHL9400GHY |
2 |
Overall dimension of truck (L*W*H) |
mm |
11950*2500*3700 |
12000*2498*3400 |
3 |
Effective volume of tank |
M3 |
28 |
38 |
4 |
Overall dimension of tank |
mm |
9150*2400*1500 |
11500*2380*1730 |
5 |
Vehicle gross weight |
kg |
31000 |
39950 |
6 |
Rated payload |
kg |
16360 |
27150 |
7 |
Chassis model |
|
ZZ13174667C |
|
8 |
Chassis wheelbase |
|
1800+4600+1350 1800+4575+1400 |
6550+1360+1360 |
9 |
Number of spring |
|
8/8/8,10/10/10 |
8/8/8,10/10/10 |
10 |
Tire size |
|
12.00R20 |
12.00R20 |
