Rotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power.
Rotary Joints and Rotary Unions allow the feed through of water, glycol, air, hydraulic, coolant, MQL, hot oil, steam, vacuum and a variety of other media. Rotary Joints and Rotary Unions that can be configured for installation at the end of a shaft or around-the-shaft.

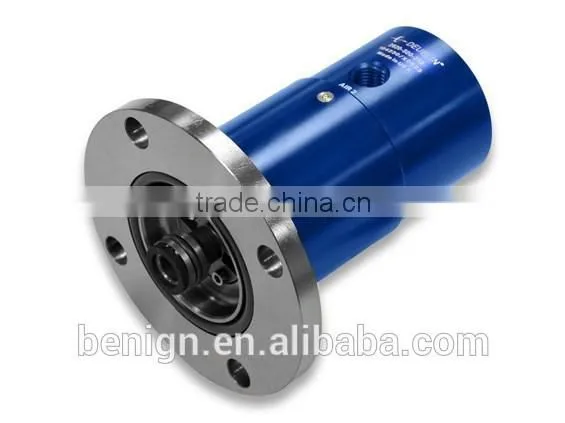

Deublin Rotating Union OIL/OIL 1/4NPT 108 FLNG 2620-000-252
- Two independent passages for applications such as clamping and unclamping, work piece sensing and cooling
- Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure
- Closed seals provide continuous containment of media
- Dual precision ball bearings for smooth operation
- Labyrinth protection for ball bearings
- Mounting options are compatible with DEUBLIN 2520 or 1579 Series unions
| Hose Connection | NPT | |
|---|---|---|
| Housing Connection | Radial | |
| Inner Passage Media | Hydraulic oil | |
| Inner Passage Supply Connectio | 1/4" | |
| Outer Passage Media | Hydraulic oil | |
| Outer Passage Supply Connectio | 1/4" | |
| Passages | Two Passages | |
| Rotor Threaded | Flanged |
| Max Inner Passage Pressure | 100 BAR | |
|---|---|---|
| Max Outer Passage Pressure | 30 BAR | |
| Max Speed | 7000 /MIN | |
| Maximum Flow | 68.89 LPM |
Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.
Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)
Website:
Website on :http://benign.en.
Contact Mr. Benign Chen
Department: Director/CEO/General Manager
Job Title: General Manager
Telephone: 86-0512-62890289
Mobile Phone: 18020285375
Fax: 86-0512-62890289
Zip: 215000
Thick Carton Box
Small Size(2-4 pcs per box) |
35mm*20mm*20mm |
Medium Size( 5-10 pcs per box) |
45mm*30mm*25mm |
Large Size( more than 10pcs per box) |
60mm*40mm*25mm |
Shipping
EMS, TNT, UPS, FEDEX Courier for small quantity.
Ocean transport for large quantity.
Warranty: Two year limited warranty from time of delivery.
