Curtis SepEx® motor controllers deliver smooth, silent and seamless control of separately excited (SEM) DC motors. SepEx® motor controllers eliminate the need for reversing contactors and provide regenerative braking to near zero speed.
Curtis PMC Model 1243 SepEx® programmable controllers provide smooth and seamless regenerative control of separately excited motors. An advanced MOSFET power section, combined with a sophisticated microprocessor provides very high efficiency, silent operation and reduced motor and battery losses.
Curtis PMC Model 1243 SepEx ® controllers are designedfor small material handling and other light industrial vehicles using separately excited motors. These include low lifts, stackers,personnel carriers and other industrial vehicles.
1243/1243 CAN
| Vehicle Type | Industrial |
| Application | Traction |
| Max Voltage [VDC] | 36 |
| Armature Current (2 min) [A] | 200 - 350 |
| Field Current (2 min) [A] | 25 - 35 |
| WalkAway® | No |
| Control Method | Speed |
| Field Mapping | Yes |
| MultiMode® | Yes |
| VCL | No |
| CANbus | Option |
| 840 Spyglass support | Yes |
| IP Rating | IP 53 |

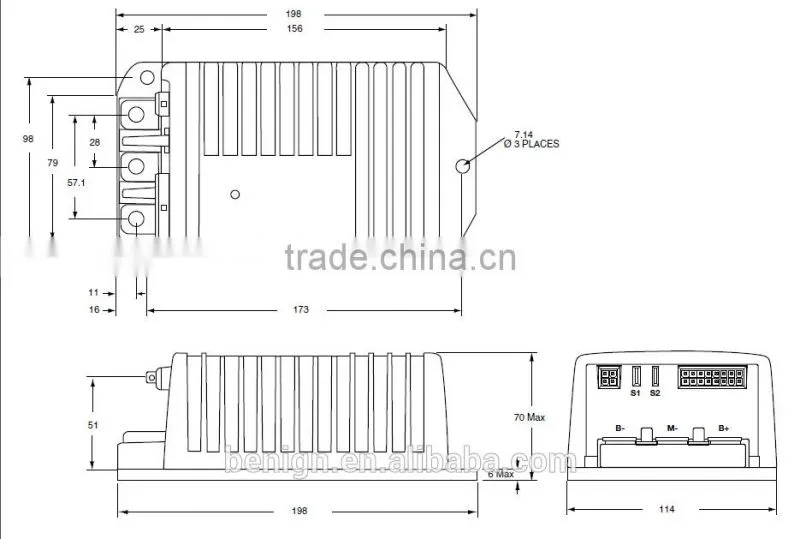

Unit: mm
Model |
Voltage (V) |
Armature Rating*(amps) 2 minutes 1hr |
Field Rating*(amps) 2 minutes 1hr |
1243-24XX |
24 |
350 100 |
35 15 |
1243-42XX |
24 - 36 |
200 80 |
25 15 |
1243-43XX |
24 - 36 |
300 100 |
35 15 |
