Specifications
Sewage suction truck JHL5051GXWpowerful vacuum suction device
vacuum suction
pressure discharge
high efficency

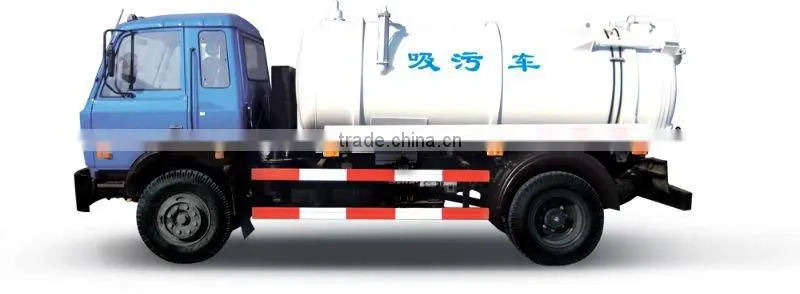

Sewage suction truck JHL5051GXW
powerful vacuum suction device
vacuum suction
pressure discharge
high efficency
Charact:
Vacuum pump of the truck makes tank body generate negative pressure and positive pressure, and ensures suction and pressure discharge functions. High pressure plunger
pump generates high pressure water jet, makes the nozzle generate reaction force and advance in pipe, has powerful dredging function on blockage material in pipe, and can
wash pipe and clean pipe wall effectively. The truck has various features such as low working negative pressure, high volume efficiency, large suction depth, quick loading
and unloading speed and large washing and dredging action force; at the same time, since all movements of the truck uses hydraulic drive, this makes its structure more
simple and compact and control system reliable, so the truck is typical product of mechanic, electric and hydraulic combination.
No. |
Item |
Unit |
Value |
1 |
Type |
|
JHL5051GXW |
2 |
Chassis type |
|
QL10508HARY |
3 |
Engine power |
kw |
70 |
4 |
Overall dimension of truck(L*W*H) |
mm |
5900*1860*2180 |
5 |
Overall dimension of tank(L*W*H) |
mm |
1100*2945 |
6 |
Effective capacity of tank |
m3 |
3.1 |
7 |
Axle distance |
mm |
3360 |
8 |
Axle load |
|
1920/3380 |
9 |
Max. speed |
km/h |
98 |
10 |
Front /Rear tread |
mm |
1385/1425 |
11 |
Front overhang/Rear overhang |
mm |
1015/1525 |
12 |
Approach/Departure angle |
° |
24/16 |
13 |
Total mass |
kg |
5300 |
14 |
Curb weight |
kg |
1850 |
15 |
Diameter of suction pipe |
mm |
100 |
16 |
Suction depth |
m |
≥8 |
