Specifications

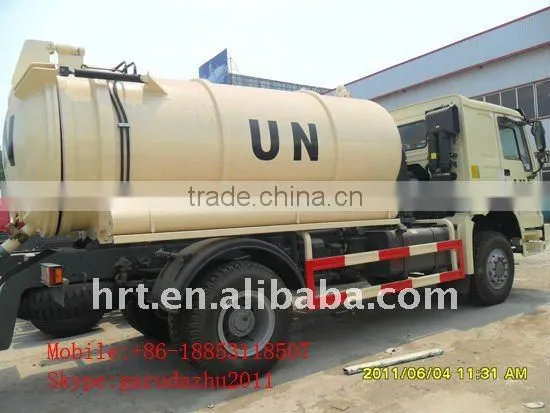

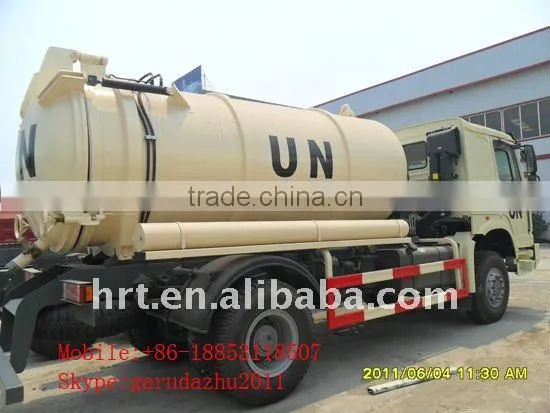

Sewage truck JHL5160GXW 10CBMEquipped with powerful vacuum suction device
vacuum suction and pressure discharge
Sewage truck JHL5160GXW 10CBM
Equipped with powerful vacuum suction device
vacuum suction and pressure discharge
JHL5160GXW high pressure washing and suction combination truck is produced by
importing technology of Germany Halle Environmental System Limited Company, uses
chassis II truck chassis of China Heavy-duty Truck Company,uses
automobile engine as power source, is equipped with importing high pressure water pump,
compression vacuum pump, oil pump and hydraulic motor, generates high pressure water
to wash and dredge pipe, forms various functions such as high vacuum degree suction of
slurry, and is used for washing underground sewage pipe, collecting and transporting liquid
wastes such as urban living liquid waste and construction mud.
Vacuum pump of the truck makes tank body generate negative pressure and positive
pressure, and ensures suction and pressure discharge functions. High pressure plunger
pump generates high pressure water jet, makes the nozzle generate reaction force and
advance in pipe, has powerful dredging function on blockage material in pipe, and can
wash pipe and clean pipe wall effectively. The truck has various features such as low
working negative pressure, high volume efficiency, large suction depth, quick loading
and unloading speed and large washing and dredging action force; at the same time,
since all movements of the truck uses hydraulic drive, this makes its structure more
simple and compact and control system reliable, so the truck is typical product of mechanic,
electric and hydraulic combination.
No. |
Item |
Unit |
Value/ Content |
No. |
Item |
Unit |
Value/ Content |
|
1 |
Type |
|
JHL5160GXW |
12 |
complete vehicle kerb mass |
kg |
7500 |
|
2 |
Chassis model |
|
ZZ1164G4715C1 |
13 |
total mass |
kg |
16000 |
|
Drive style |
|
4*2 |
14 |
Diameter of suction tube |
mm |
100 |
||
3 |
Engine power |
kw |
140 |
15 |
Suction depth |
m |
≥8 |
|
4 |
Overall dimensions(L*W*H) |
mm |
7750*2480*3260 |
16 |
Opening angle of the rear tank door |
. |
60 |
|
5 |
Tank dimensions(Diameter*Width) |
mm |
1650*5330 |
17 |
Lift angle of tank |
. |
30 |
|
6 |
Tank capacity |
m3 |
10 |
vacuum pump |
Type |
|
vane pump |
|
7 |
Axle distance |
m |
4700 |
pumping rate |
m3/h |
318 |
||
8 |
wheel base(front/rear) |
mm |
2020/1860 |
rated speed |
rpm |
1300 |
||
9 |
Front overhang |
mm |
1250 |
Max pump vacuum rate |
· a absolute value
|
10 |
||
10 |
Rear overhang |
mm |
1800 |
% |
90 |
|||
11 |
Max speed |
km/h |
99 |
|
||||
