Help CenterCurtis Battery State-of-Charge (BSOC) Instrumentation Model 906 for Use in Electrically Powered Vehicles
Related Products
-
Curtis Battery State-of-Charge (BSOC) Instrumentation Model 841 for Use in Material Handling VehiclesUS$ 50.00 - 50.00MOQ: 1 Piece -
Curtis Battery State-of-Charge Instrumentation Model 803 for Use in Electrically Powered VehiclesUS$ 50.00 - 50.00MOQ: 1 Piece
-
Curtis CAN & Serial Instrumentation - Programmable Model EnGageVII 3701T for Use in On- and Off-road Electric VehiclesUS$ 50.00 - 50.00MOQ: 1 Piece
-
Curtis CAN & Serial Instrumentation - Programmable Model EnGageVII 3701P for Use in On- and Off-road Electric VehiclesUS$ 50.00 - 50.00MOQ: 1 Piece
-
Curtis CAN & Serial Instrumentation - Programmable Model EnGageVI 3601T for Use in On- and Off-road Electric VehiclesUS$ 50.00 - 50.00MOQ: 1 Piece
Curtis offers the widest range of Battery State-of-Charge (BSOC) instruments in the industry and continues to develop new algorithms to improve accuracy as well methods of measuring the state-of-charge of other battery chemistries and alternative fuel sources.

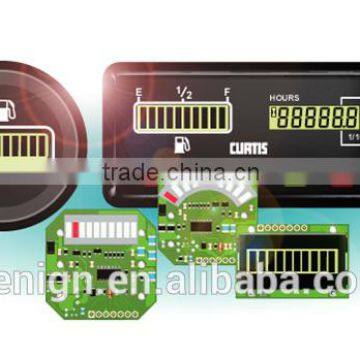

Model 906 is an inexpensive, one piece, easy to install battery fuel gauge. It is completely solid state and provides a reliable, accurate, and easy to read display of battery state-of-charge. Model 906 is available in six panel mount packages and a printed circuit board mounted module for custom dash panel applications.
906
| Function | BDI Only. |
| Lift Lockout | No |
| Display | Red, 10-bar LED or Tri-Color, 10-bar LED |
| Hour Meter | No |
| Output | Logic Level 0-5V |
| Mounting | U-bracket (D,R) or Snap-fit bracket (J,Y,Z) or Screws/Nuts (F,T) |
| Interconnect | 3/16 |
| Low "Fuel" Warning | Two LED Bars flash alternately |
| Adjustable | No |
| Housing | 52 mm round (R) or 24mmx48mm Rectangular (D) or 23mmx36mm Rectangular (F,J,T) or 28mmx41mm Rectangular (Y,Z) |
| Keyswitch Input | Yes |
| BDI Reset Method | CTR, OCR |
| Operating Voltage [VDC] | 12 - 48 |
This battery fuel gauge features Curtis patented technology and is ideal for golf cars, commercial cleaning equipment, mobility aids, electric bicycles, electric marine motors, medical devices, and similar equipment.
• All principal circuits are integrated in a single chip for
long-life reliability.

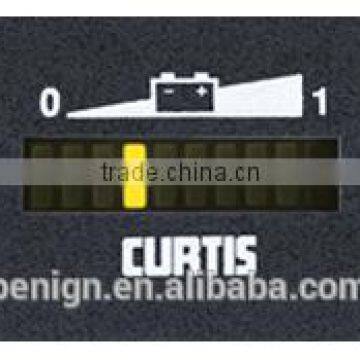

• A 10-bar LED displays the state-of-charge successively,
bar by bar, from full to empty.
• At 70% depth of discharge, a flashing LED signals an
“energy reserve” alert.
• At 80%, alternately flashing LEDs provides an “empty”
status warning.
• Model 906 is compact and easily installed in panel cutouts
as small as 36.8 X 24.1 mm, with as little as 35 mm
behind panel clearance needed, see dimensions of various
case styles.
• Recognizes improperly charged battery.
• Keyswitch activated LED display (state-of-charge is monitored
as long as 906 is connected to battery).
• Memory allows gauge to recall state-of-charge whenever
battery is disconnected.
• Three possible reset methods:
1. Open Circuit Reset (OCR): Upon reconnection of a
battery the gauge will reset if it measures 2.09 volts/
cell or higher (example “B” profile) (for units with
memory option).
2. High Voltage Reset (HVR): Gauge must measure
>2.35 volts per cell for 6 continuous minutes during
charging (example “B” profile).
3. Charge Tracking Reset (CTR): Display tracks charge
level during opportunity charging (requires gauge to
be connected to battery when charging).
OPTIONS
• The Output Signal option causes the voltage on pin 3 to
drop from 5 to 0 volts at 80% discharge. It can be used to
signal another component or to allow for the disabling of
a specified vehicle function, insuring against abusive deep
discharge conditions. The Output Signal can also be used
to drive the Curtis 1178 Relay Module.
• Special models and custom panels are available.
System Voltages: 12V, 24V, 36V, 48V
Operating voltage: +/–25% of nominal voltage
Operating temperature: –40°C to +85°C
Storage temperature: –50°C to +90°C
Shock & Vibration: Meets SAE J 1378
