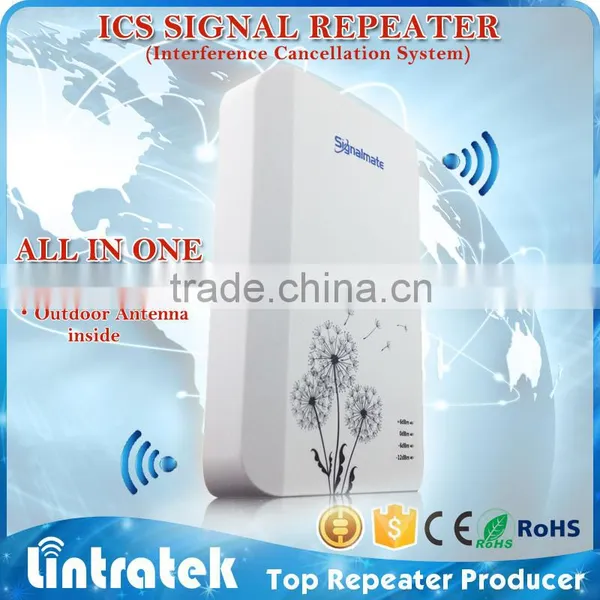

AIO All in one 10dbm antenna 2g 1800MHZ pico ICS DCS repeater for usa market
Specification should care about:
| Model No | ICS10-DCS | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | UL:1710-1785mhz | DL:1805-1880mhz | |
| Output Power | 10 ±2dBm | 12 ±2dBm | |
| Gain | 55 dB | 55 dB | |
| Bandwidth | Wide Band | ||
| Automatic Gain Control | >20dB | ||
| Ripple in Band | ≤5dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:90~265V, 50/ 60Hz;DC:12V 3A | ||
| Power Consumption | < 20W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 240*160*50mm | ||
| Weight | 1.5Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C |
||
Product functions
-1.AGC(Auto gain control)
with AGC can check the input/output signal of repeater, IF overload, system will adjust the gain, ensure won’t jamming base station!
-2.safe mode
When input signal and lose control, safe mode open! Shut off the amplification circuit, then under dormant state!
-3.Double ALC(Auto level control)
The automatic adjustable range of equipment’s gain dynamic reach 60db, ALC of system dual redundant! High reliability and high stability.
-4. Uplink & Downlink automatic linkage debugging

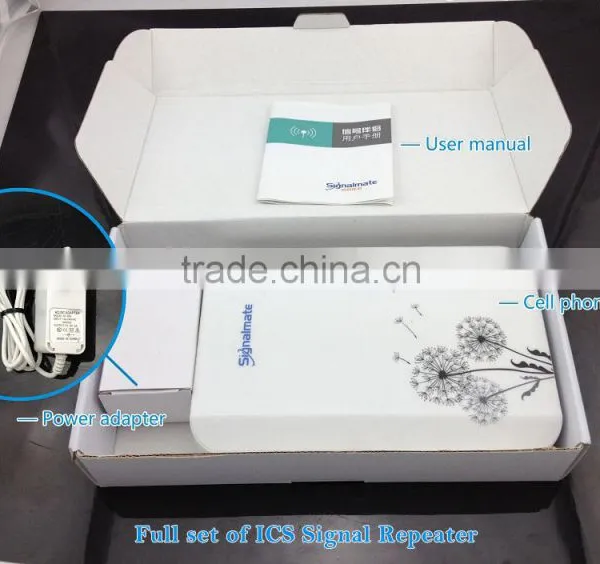

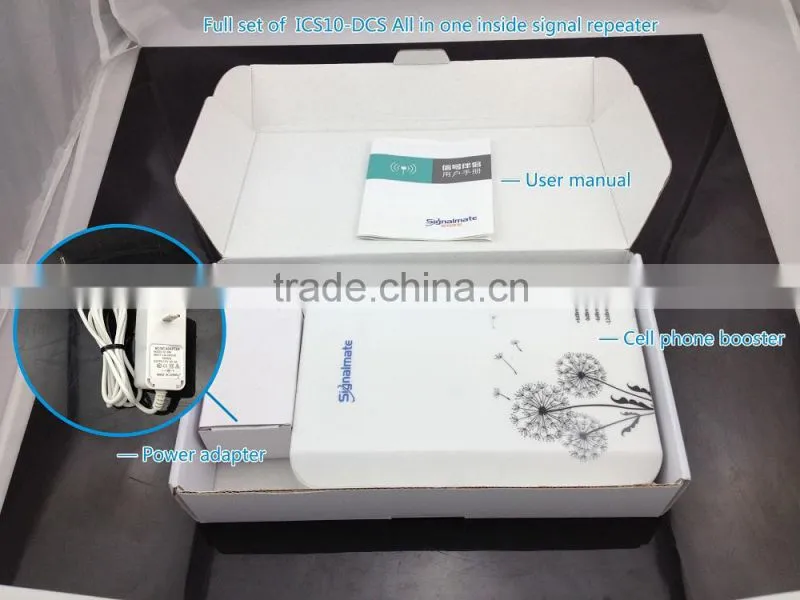

This kind of repeater consists of: (built in antenna)
— Power adapter .
— User manual .
— Cell phone booster .

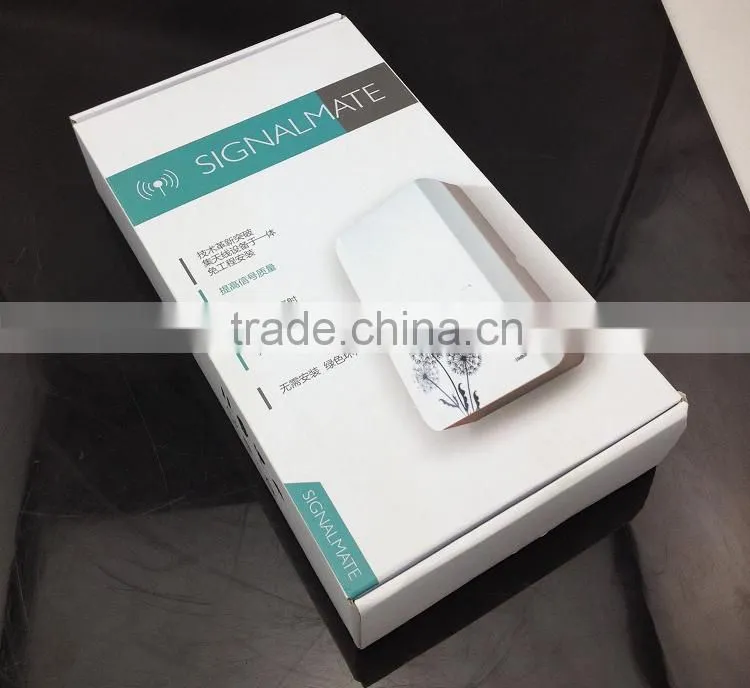

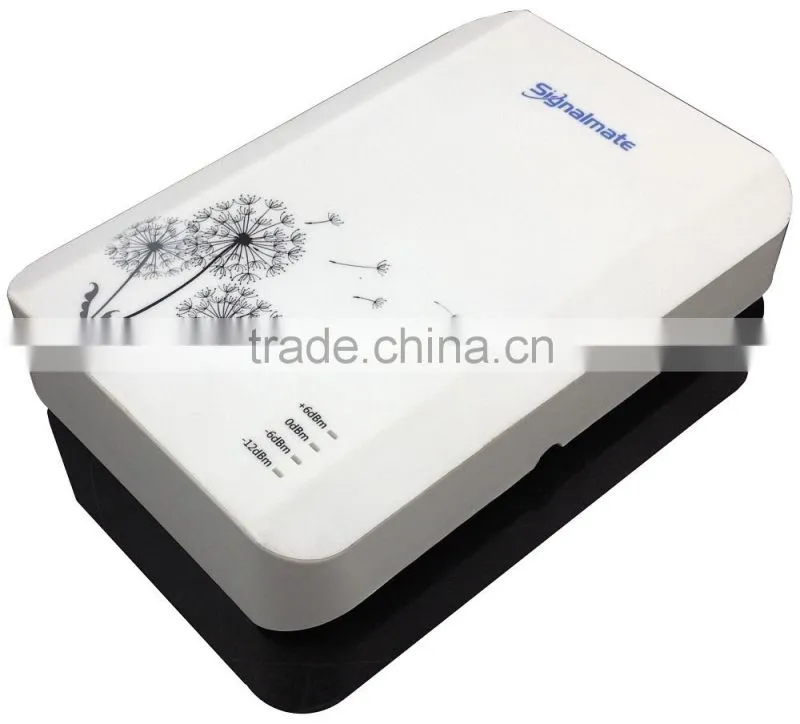

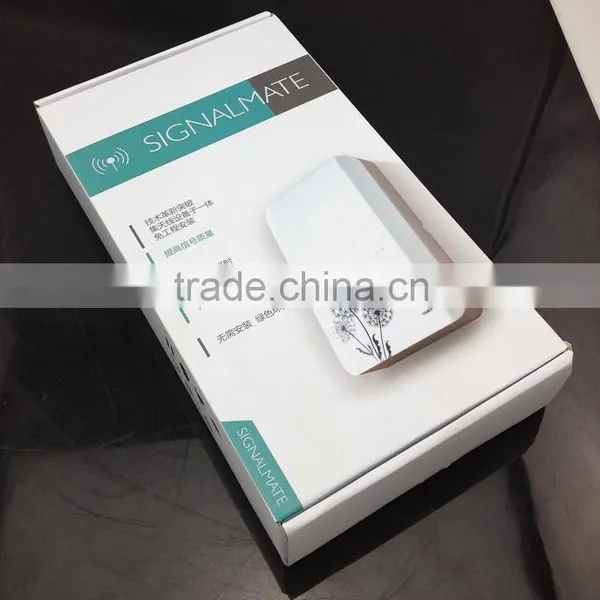

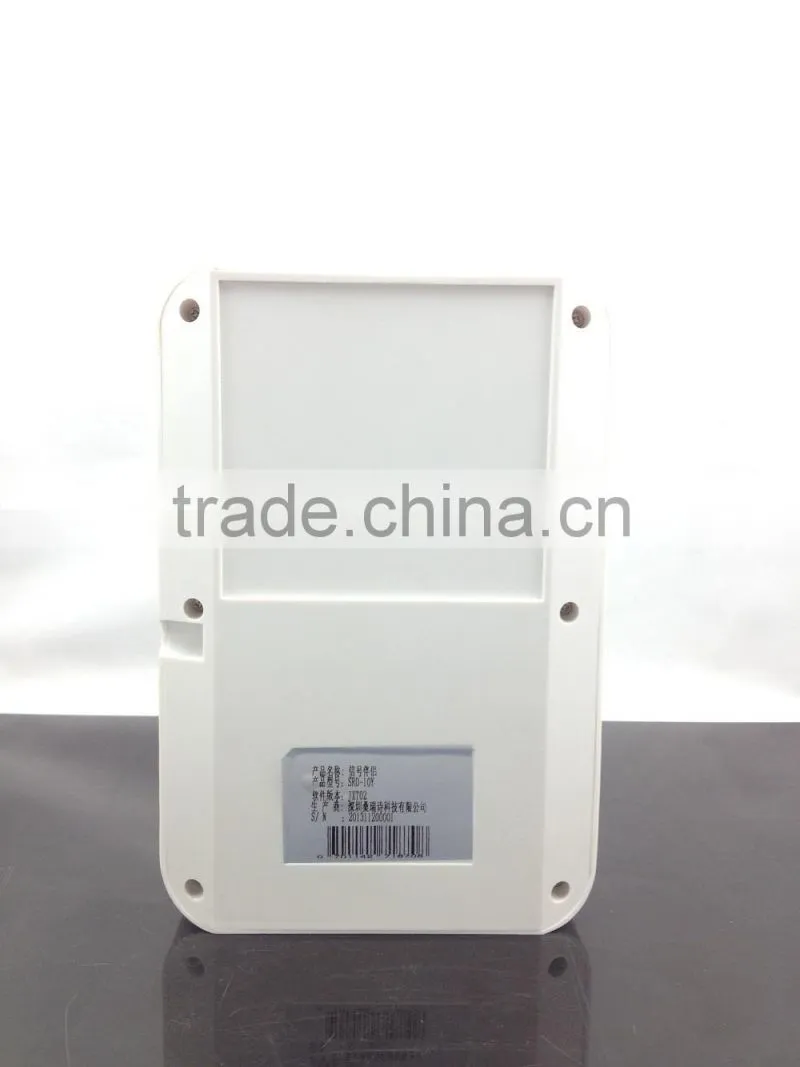

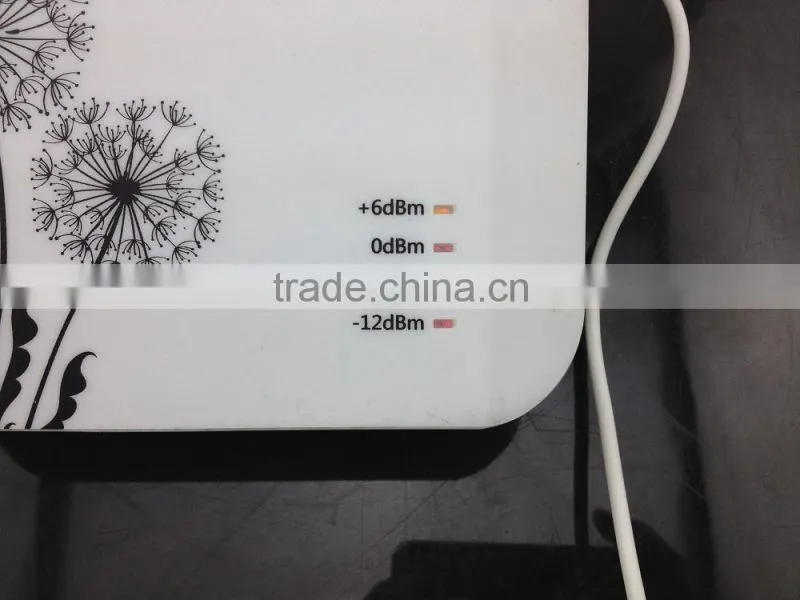

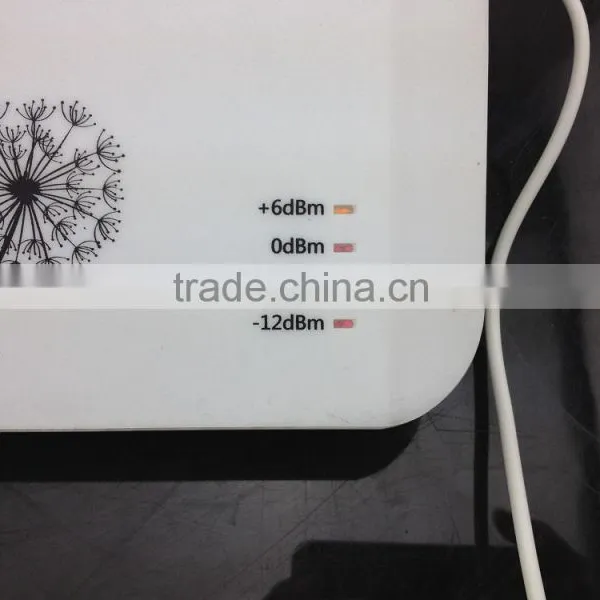

Product Pictures:
Certificates:
How can repeater bring your mobile phone better signal?
Shipping:
1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Sample within 1-2 days
2. Wholesales Orders : 3-5days according various quantities
3. OEM
5-10 days after receiving your sample confirmation and payment.
Warranty:
1. 2 years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
