2015 Indoor Antenna GSM Mobile Signal Receiver 2g Booster Signal Amplifier
US$ 10 - 35
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LINTRATEK
Model Number:
KW17A-GSM signal amplifier
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lintratek Repeater DCS Signal Booster Repeater 1800, Phone Signal AmplifierNegotiableMOQ: 5 Pieces -
10W Big Power Amplifier/900MHz GSM Signal Booster for Railway, Underground, Top-building, Outdoor UseNegotiableMOQ: 5 Pieces
-
LINTRATEK Gsm Repeater Wholesale New Model Signal Booster Big Power Cellphone Signal Repeater GSM/DCS/WCDMA BoosterNegotiableMOQ: 5 Pieces
-
LINTRATEK 900mhz Signal Repeater,big Power 5W Outdoor Gsm Repeater,good Signal EnhancerNegotiableMOQ: 5 Pieces
-
Cheapest GSM Signal Booster 900MHz Mobile Repeater 2g NetworkNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
LINTRATEK
Model Number
KW17A-GSM signal amplifier
2015 indoor antenna GSM mobile signal receiver 2g booster signal amplifier
Product Description
| Model No | KW17A-GSM signal amplifier | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | 890~915 MHz | 935 ~ 960 MHz | |
| Output Power | 15 ±2dBm | 17 ±2dBm | |
| Gain | 65 dB | 65 dB | |
| Bandwidth | Wide Band | ||
| Automatic Gain Control | >20dB | ||
| Ripple in Band | ≤5dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:90~265V, 50/ 60Hz;DC:12V 3A | ||
| Power Consumption | < 20W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 140*95*30mm | ||
| Weight | 0.7kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C |
||

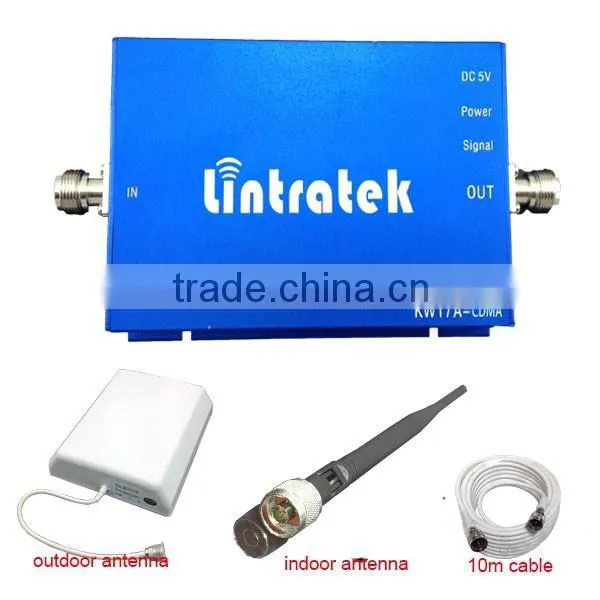

A regular cell phone repeater consists of (full kit):
- 1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
- 2 - Indoor Omni ceiling antenna( panel antenna)
- 3 – Power adapter
- 4 - User manual
- 5 - Cell phone repeater
- 6. 10 meters outdoor cable and 5 meter indoor cable
Signal Solution
Installation
Trade Shows
Company Information
Our Services
Transportation
FAQ
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
