5 BAR SIGNALdual band signal more strengh CDMA 850 & DCS1800 telecom signal amplifier/cheap signal repeater
Why do you need to buy repeater/booster?
What will be changed when using this products??
1 A cheap and immediate solution that would allow them have clear phone calls or higher speed broad band;
2 No more dropped calls! No more poor reception;
3 No more running to the windows or going outside to talk on your mobile phone;
4 Now you can reach everywhere with signal boosters;
How can repeater bring your mobile phone better signal?
•The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone repeater through the connection cable (coax).
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off

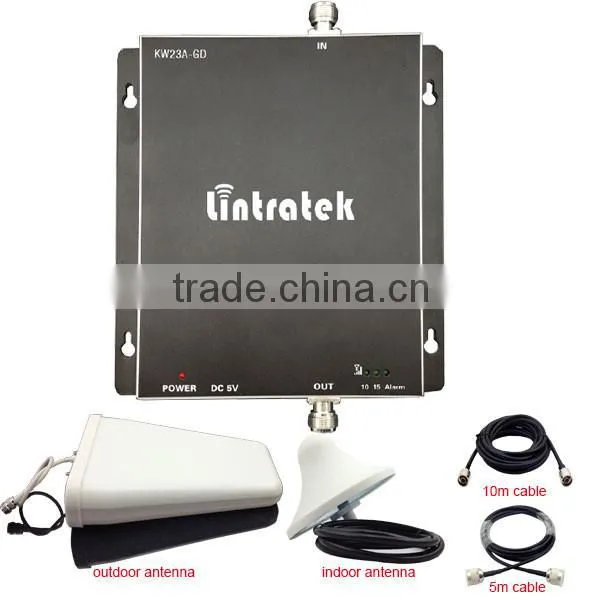

A regular cell phone repeater consists of (full kit)
- 1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
- 2 - Indoor Omni ceiling antenna( panel antenna)
- 3 – Power adapter
- 4 - User manual
- 5 - Cell phone repeater
-
6. 10 meters outdoor cable and 5 meter indoor cable
Specification should care about
Model No KW23A-CD Parameter data Uplink Downlink Frequency Range 824-849/1710-1785MHz 869-894/1805-1880MHz Output Power 20 ±2dBm 23 ±2dBm Gain 65±2dB 70±2 dB Bandwidth Wide Band Automatic Gain Control ≤ 20 Ripple in Band ≤4dB Intermodulation Products 9KHz~1GHz ≤ -36 dBm 1GHz~12.75GHz ≤ -30 dBm Spurious Emission 9KHz~1GHz ≤ -35 dBm 1GHz~12.75GHz ≤ -30 dBm Noise Figure @ max. gain ≤ 6 dB VSWR ≤2 MTBF >50000 hours Power Supply AC:90~265V, 50/ 60Hz;DC:12V 3A Power Comsumption < 10W Impedance 50 ohm Mechanical Specification RF Connector N-Female N Cooling Heatsink Convection cooling Dimensions (D x W xH ) 220*170*25(mm) Weight 1.5KG Installation Type Wall Installation Environment Conditions IP40 Humidity < 90% Operating Temperature -10℃ ~ 55℃
How should you install repeater (very easy and simple):

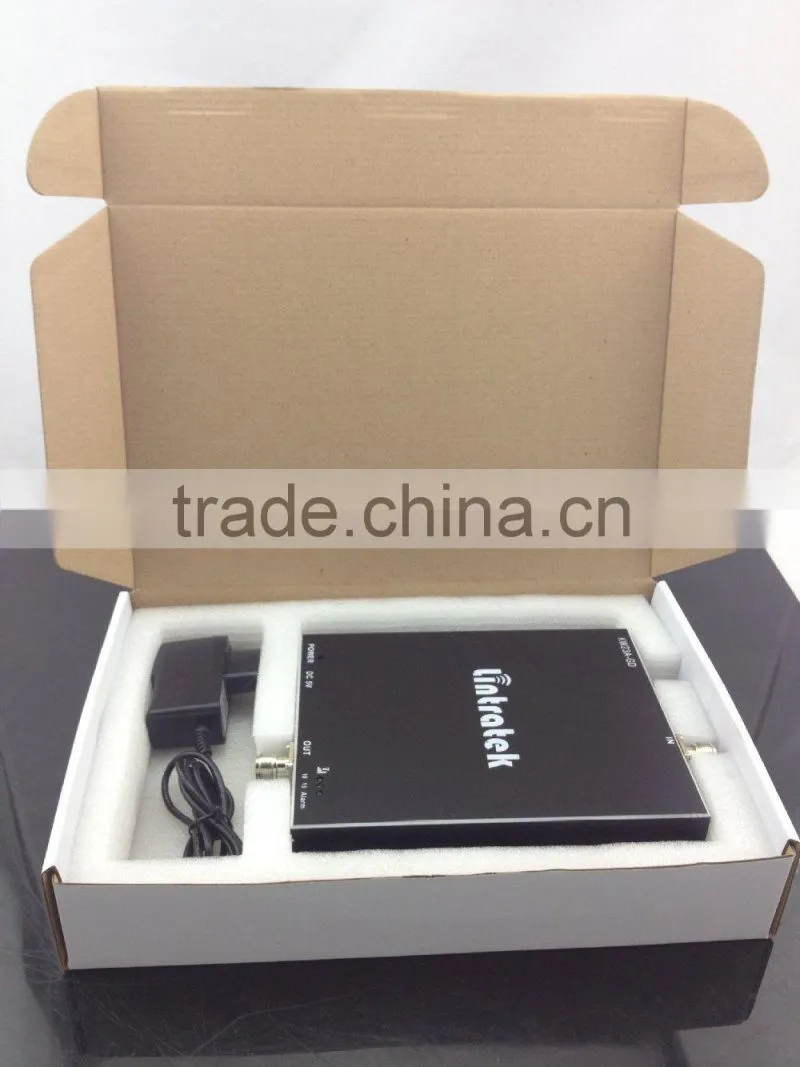

Repeater packing photo:
Shipping
- 1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
- 2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
- 3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
- 4. Normally, it will take around 3~7days from China to destination country. Please note that some remote place will need 1-3 days more.
- Delivery:
- 1. Sample within 1-2 days
- 2. Wholesales Orders : 3-5days according various quantities
- 3. OEM
- 5-10 days after receiving your sample confirmation and payment.
- Warranty:
- 1. 2 years warranty for the products.
- 2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
- 3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
