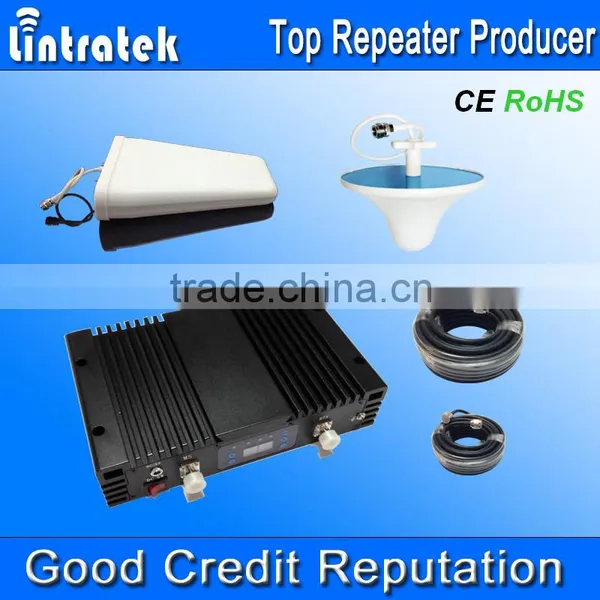

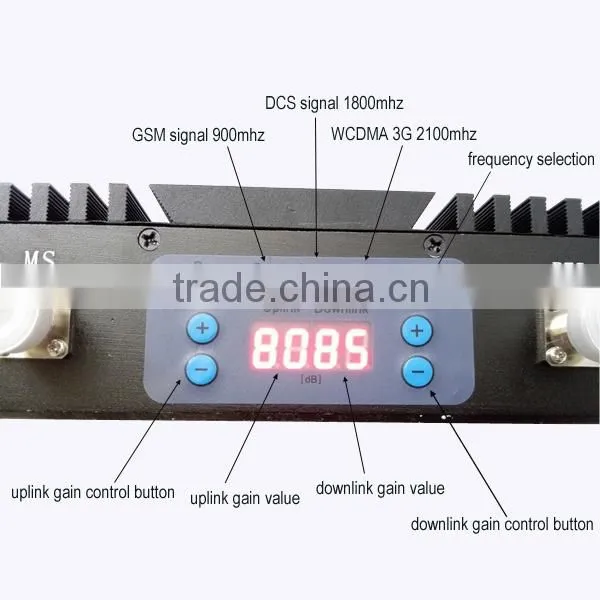

Booster 900/2100mhz with AGC MGC dual band repeater GSM WCDMA signal booster
Specification:
| Model No | KW27F-GW GSM WCDMA signal booster | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | DCS | 890-915/1920-1980 Mhz | 935-960/2110-2170 Mhz |
| Output Power | 24±2dBm | 27 ±2dBm | |
| Gain | 70 ±2 dB | 75±2dB | |
| Bandwidth | Wide Band | ||
| Ripple in Band | GSM≤5dB,DCS≤6dB,WCDMA≤5dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, DC+12V/3A | ||
| Power Comsumption | < 6W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Dimensions (D*W*H ) | 270*170*60 (mm) | ||
| weight | 3.8Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
After sale service
We have two years quality warranty for all customers,you can return goods to us when you receive defective repeater,but freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
