Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Meelo | Model Number: | X solo mini3 |
| FTA(Free To Air): | Yes | Type: | Digital | High Definition: | Yes |
Product Description
1200MHz Dual DMIPS Processor X SOLO mini 3 HD 1080P Satellite tv Receiver DVB-S2+DVB-T2/C Enigma2 Linux X SOLO mini3
ATTN:Ivy
Skype:live:spalivy
Whatsapp/Wechat:0086 13632566058
Highlight
- HD DIGITAL DVB-S2 add an extra DVB-S2 or Hybrid C/T2
- Linux Operating System
- Multimedia plug-in supported
- HD up to 1080p
- 1 x Smartcard-Reader
- 2 x USB2.0
- 100 Mbit Ethernet Interface
- Advanced EPG (Electronic Program Guide)
- Full automatic service scan
- Various OSD skins supported
- Cool silent fanless running
- Low deep-standby power consumption under 1 W

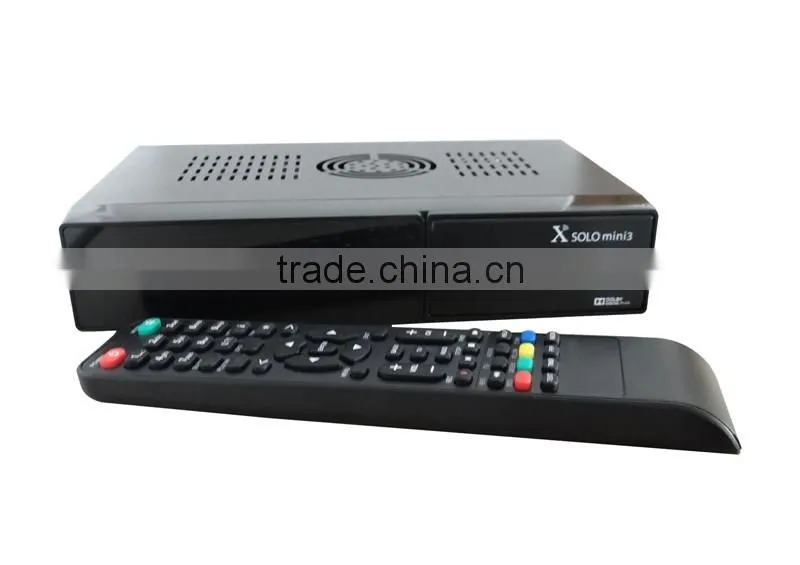

Pictures
Product Description
| New decoder!Dual DMIPS Processor X SOLO mini3 HD 1080P Satellite Receiver DVB-S2,DVB-T2/C Enigma2 Linux X SOLO mini 3 Twin Tuner | ||||||||||
| Ⅰ.General | ||||||||||
| 1.Produce Type Name | ||||||||||
| Produce Type Number | The STB,HD DIGITA DVB-S2 add an extra DVB-S2 or Hybrid C/T2 | |||||||||
| 2.Main Features | ||||||||||
| STB Type | X SOLO MINI3 | |||||||||
| Main Chipset | BCM7362ZZKFEB3G | |||||||||
| Func/Interface | RCA with CVBS, HD,S/PDIF out , ETHERNET, DUAL USB , smart card | |||||||||
| 3.Special Features | ||||||||||
| Heatsinking | Yes, Main Chip | |||||||||
| Encrypt | yes, | |||||||||
| Video Modulator | yes, | |||||||||
| TUNER Type | Integration in the main control chip | |||||||||
| Demodulator Type | Integration in the main control chip | |||||||||
| Power Supply | Input 100V ~ 240V 50/60Hz | |||||||||
| Ⅱ.Software Features | ||||||||||
| 1.Software General Features(DVB-S2,DVB-C/T2) | ||||||||||
| MPEG4 | SD&HD-compatible/MPEG-2/MPEG4/H.264 | |||||||||
| Large memory and fast CPU | Memory of 1 GB(512MB RAM & 512MB Flash),The CPU is a Dual 2000 Mipsel BCM processor | |||||||||
| OSD Language | Auto Languager seletion:English German French Portuguese Spanish Italian and so on | |||||||||
| Linux OS | Premium Twin HD is based in Linux and has many features that makes it unique.It supports HbbTV,YouTube,DLNA,has an embedded Media Player and a lot more. | |||||||||
| Additional tuner | Miraclebox Premium mini HD comes with one embedded DVB-S2 tuner.Despite its small size it is possibile to add an extra DVB-S2 or Hybrid C/T2 tuner.Combine it ad you want. | |||||||||
| PIP | PIP(picture in Picture)at the same transponder | |||||||||
| HD 1080P | HD-connection with Full HD 1080P | |||||||||
| EPG | Advanced EPG(Program Guide) Supported EPG recording/playback | |||||||||
| Channel Search | Channel search in automatic, manual and network search | |||||||||
| Parental Ctrl | Parental control for channels | |||||||||
| Easy Menu | Plug and Play installation, with an ease to use Menu System | |||||||||
| SoftUpgrade | Software upgrades through USB or RS232 | |||||||||
| ETHERNET | 10/100Mbit Ethernet connection, Support youtube and network media, CCCAM,Wireless Network with connected Miracle WIFI adapter | |||||||||
| CAS | 1×Smartcard readers | |||||||||
| Hard-drive and recording | 2× USB 2.0(1×Front and 1×Rear),You can easily connect an USB device,to record,Pause and playback | |||||||||
| Ⅲ.Hardware Features | ||||||||||
| 1.Front panel | ||||||||||
| Size | L:225MM W:150MM H:45MM | |||||||||
| LED | One blue LED and one red LED. | |||||||||
| USB | USB 2.0 High Speed HOST | |||||||||
| Smartcard | Smart card slot (Xcrypt and Conax embeded) | |||||||||
| IR | 38KHz | |||||||||
| 1.Back panel | ||||||||||

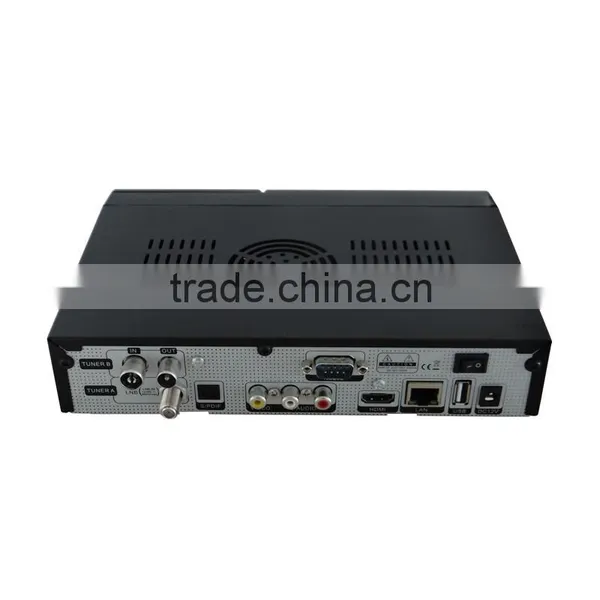

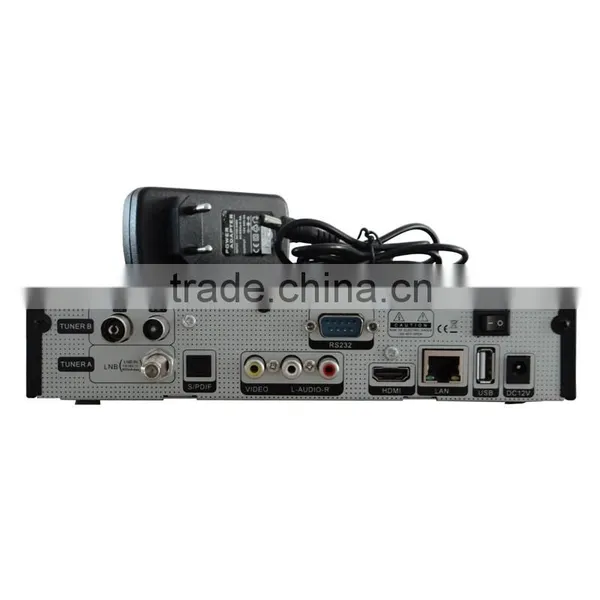

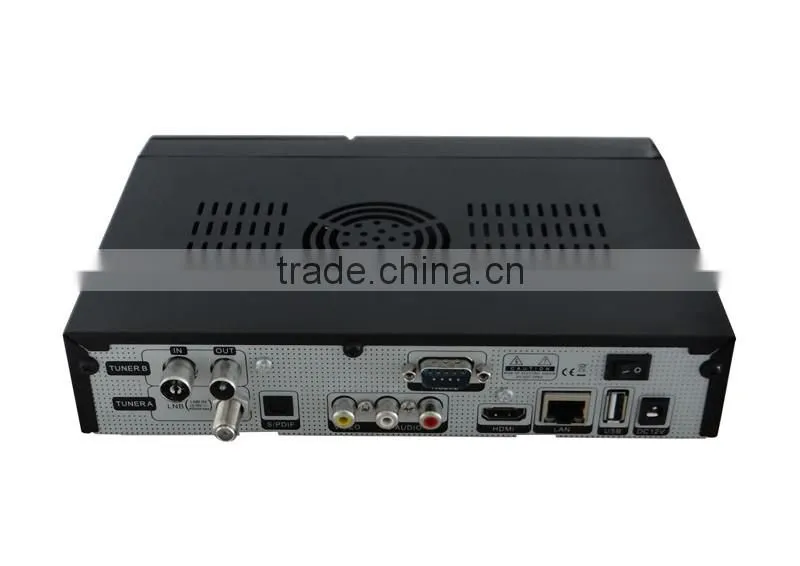

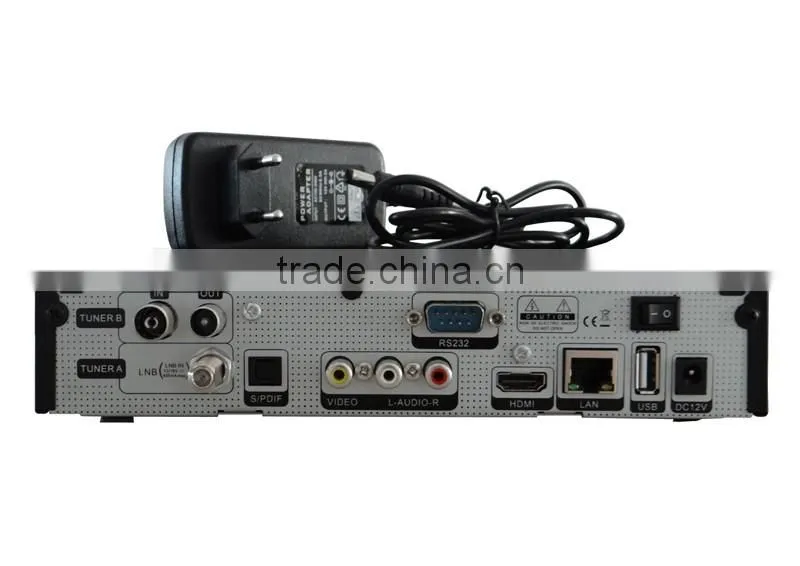

| Output Interface | Tuner A,TunerB, RCA with CVBS, HD,S/PDIF, RS232,ETHERNET,USB1(USB 2.0 High Speed HOST) | |||||||||
| HD | HD 576p, 720p, 1080i,1080P | |||||||||
| 3.STB Assembly | ||||||||||
| Configured according to customer requirements | ||||||||||
| 5.Accessories | ||||||||||
| Cable1 | HD Cable | |||||||||
| Cable1 | RS232 CABLE | |||||||||
| power adapter | 110-240V AC / 50-60Hz ,12V 2A | |||||||||

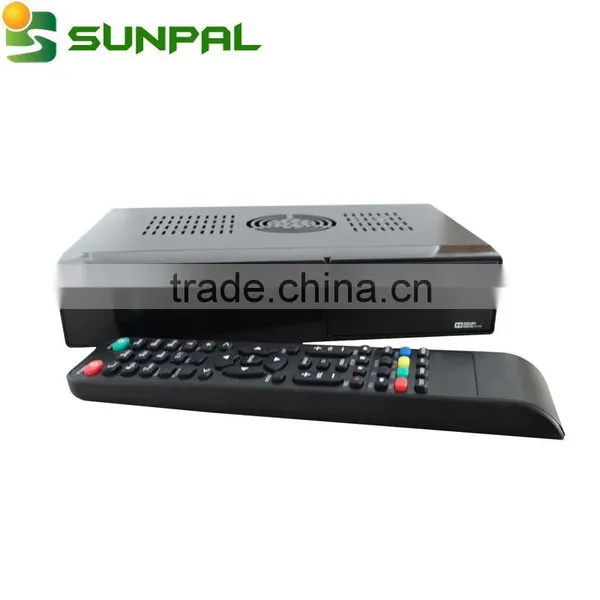

| Remote | 1XRemote control | |||||||||
| IV.Electric Performance | ||||||||||
| 1.Main Chip Sets | ||||||||||
| Flash Memory | 4Gb Serial Flash(256MB×16) | |||||||||
| DDR3 Memory | 1Gb(256MB×4) | |||||||||
| CPU | 1200MHz Dual DMIPS Processor | |||||||||
| Demodulator IC | Integration in the main control chip | |||||||||
| 2.DVB-S2 Tuner | ||||||||||
| Tuner Type | ||||||||||
| Input Frequency Range | 950MHZ-2150MHZ | |||||||||
| Input Impedance | 75Ω | |||||||||
| RF input Signal LEVEL | -80/-20dBM | |||||||||
| Active Ant Power | 13/18V DC @ 400mA MAX,Overload Protection | |||||||||
| 3.DVB-S2 Channel Decoder | ||||||||||
| Demod standard | DVB-S2 Standard | |||||||||
| MPEG Profile Level | MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD,MPEG4 AVC/H264 | |||||||||
| Demodulation | QPSK, 8PSK | |||||||||
| FFT SIZE | 2K,8K | |||||||||
| Code Rate | 1/2,2/3,3/4,5/6,7/8 | |||||||||
| Guard Intervals | 1/4,1/8,1/16,1/32 | |||||||||
| 4.DVB-T/T2/C Channel Decoder | ||||||||||
| Demod standard | Fully integrated LNA,Tuner,DVB-T2 & DVB-T & DVB-C demodulators | |||||||||
| DVB-T2 | EN 302 755, Supports all DVB-T2 modes,including:Single and multiple-PLPs;678MHZ,QPSK,16QPSK,64QPSK,256QPSK | |||||||||
| DVB-T | EN 300 744,6/7/8MHZ,QPSK,16QPSK,64QPSK | |||||||||
| DVB-C | EM 302 429,8MHZ,16/32/64/128/256QPSK | |||||||||
| 5.USB Decode | ||||||||||
| DVR supporting | Stereo/MONO/Left/Right | |||||||||
| Media Supporting | Dual USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card. | |||||||||
| File system | FAT12, FAT16, FAT32, NTFS (only support first partition) | |||||||||
| USB2.0 High Speed HOST | DVR with USB HDD, Time shifting with USB HDD | |||||||||
| 6.Video Decode | ||||||||||
| Video Decoding | MPEG-2,MPEG-4 compatible | |||||||||
| Input data rate | 2-45 Msymb/s | |||||||||
| Video Resolution | 576p, 720p, 1080i,1080P | |||||||||
| 7.Audio Decode | ||||||||||
| Audio Decoding | Dolby Digital,MPEG-4(AAC-HE) MPEG-1/2/3 | |||||||||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | |||||||||
| Sampling Frequency | 32/4.1/48kHz | |||||||||
| 8.AV Output | ||||||||||
| Video Bandwidth | 5.5MHz(-3dB) | |||||||||
| Video Impedance | 75Ω | |||||||||
| Video Voltage Level | 1.0 Vp-p | |||||||||
| Audio Freq. Range | 20~20KHz | |||||||||
| Audio Impedance | 600Ω | |||||||||
| Audio Voltage Level | 2V rms(5.6Vp-p) | |||||||||
| 9.Environment | ||||||||||
| Input Voltage | AC:110-240V / 50-60Hz ,DC:12V 2A | |||||||||
| Consumption | 35W Max / 1W Standby (it’s optional by customer’s board) | |||||||||
| Temperature | 0℃ to +50℃ | |||||||||
| Humidity | <95% | |||||||||
| 10 | Mechanical | |||||||||
| Mechanical Type | plastic + Iron | |||||||||
| Dimension | W:225mm D:150mm H:45mm | |||||||||
| Weight | 714.5G | |||||||||
| 11 | Packing | |||||||||
| Type | Chipboard,10PCS per Box for S mantel | |||||||||
| Outline Size | 445MM*350MM*418MM | |||||||||
| Color Box Size | 316MM*198MM*83MM | |||||||||
| Weight with Color Box | 1.31KG | |||||||||
| Weight with Outline BOX | 13.92KG | |||||||||
