Help CenterDX-QYAF5 Multifunctional Electric Wire Stripping Machine (factory Price)
Related Products
-
DX-QYAF5 Circular Blade Dual Channel Electric Copper Cable Wire Stripper ( Factory Price)US$ 500 - 600MOQ: 1 Set -
DX-QYAF5 Multi-functional Export-oriented Copper Wire Cable Peeling MachineUS$ 200 - 500MOQ: 1 Set
-
DX-QYAF5 Multi-function Armoured Cable Stripping Machine ( Factory Price)US$ 500 - 600MOQ: 1 Set
-
DX-QYAF5 Popular China Manufacturer Used Cable Stripper ( Factory Price)US$ 500 - 600MOQ: 1 Set
-
DX-QYAF5 Multi-function Dual Blades Electric Wire Stripper ( Factory Price)US$ 500 - 600MOQ: 1 Set

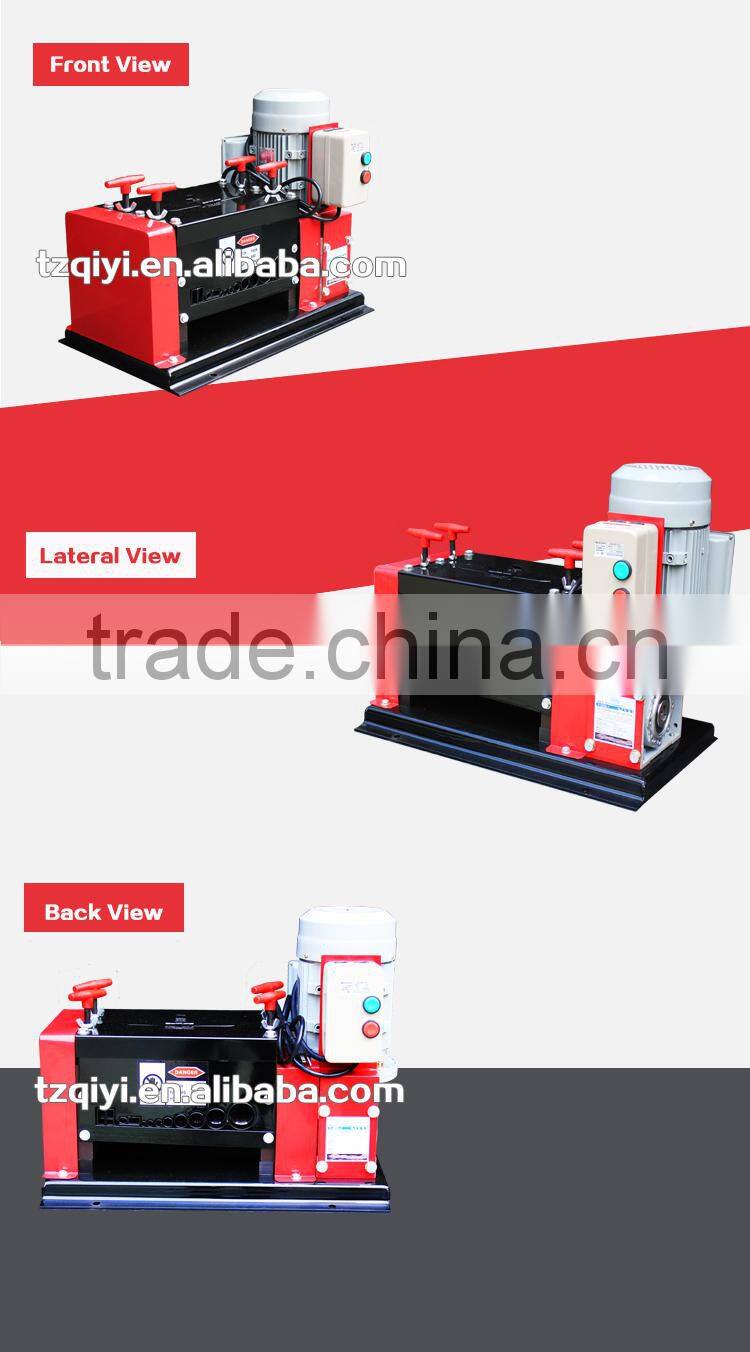

Model |
DX-QYAF5 |
Name |
Export-oriented horizontal wire stripping machine Horizontal Dual channel 5 knife wire stripping machine (front of the 5-slot) |
Applicable Scope |
dia.1.5-38mm |
Size |
63cm × 37cm × 48cm |
Weight |
77kg |
Voltage Power |
100v ,220v, 380v |
Capacity |
200kg-500kg |

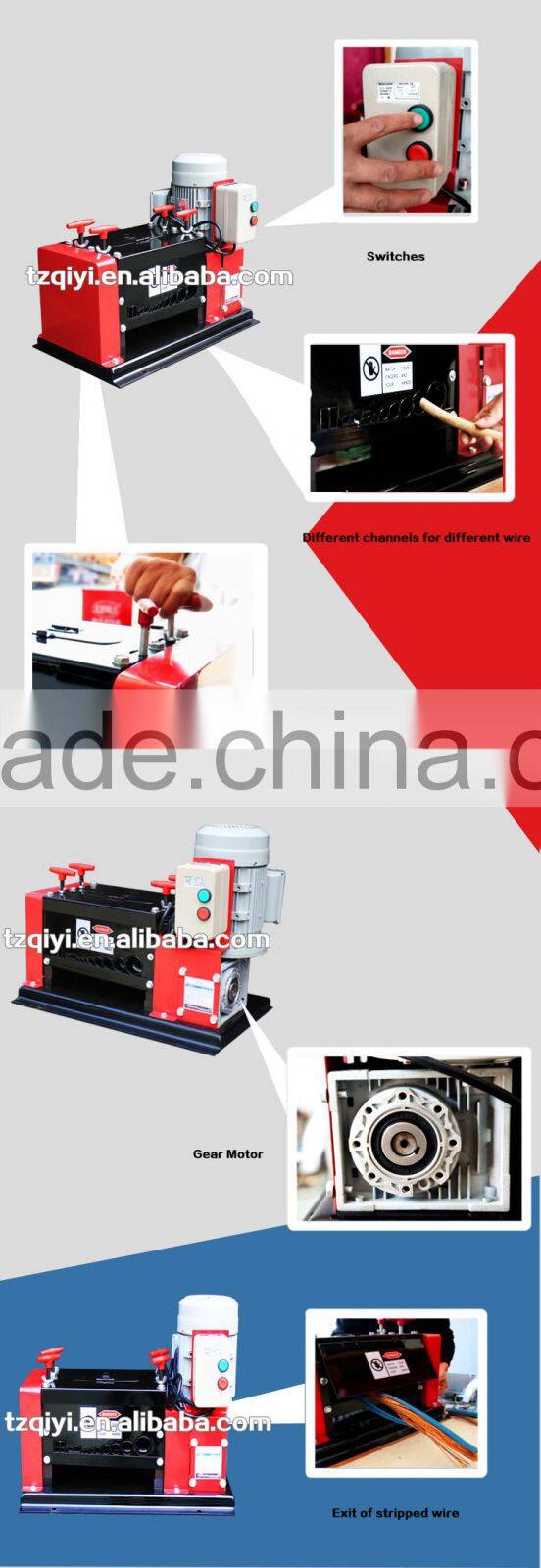

Functions and features |
This machine has the function of dual-channel which operated for the plastic sclerosis with hard appearance and low temperature. the more beautiful in appearance, compact, more convenient to move. |
5 knifes(the first biggest 5 slot)
Motor Power: 1.5KW
Motor Voltage: 220V/1.5KW 110V/1.5KW 380V/1.5KW
Processing Diameter: 1.5-38mm
Convenient for Recycling
Customized brand acceptable
Clour adjustable
PACKAGE
Treated Wood Case
Overall Dimension: 63X37X48cm
Machine Weight: 77kg
All Models
Model |
Applicable scope(mm) |
Size(cm) |
Output(kg/10h) |
Power(kw) |
Weight(kg) |
DX-QYF |
Φ1.5-Φ35 |
54*34*48 |
100-300 |
1.5 |
68 |
DX-QYAF5 |
Φ1.5-Φ38 |
63*37*48 |
200-500 |
1.5 |
77 |
DX-QY |
Φ6-Φ70 |
63*37*48 |
100-700 |
1.5 |
55 |
918-F |
Φ1-Φ35 |
54*52*84 |
100-300 |
1.5 |
81 |
918-AF5 |
Φ1-Φ38 |
55*52*84 |
100-500 |
1.5-2.2 |
89 |
918-KOB |
Φ1-Φ40 |
70*55*84 |
200-1000 |
2.2 |
110 |
918-QY6 |
Φ5-Φ90 |
84*78*120 |
200-3000 |
3 |
215 |
918-Press |
Φ1-Φ40 |
70*55*115 |
400-600 |
3-4 |
196 |
918-B |
Φ1.5-Φ98 |
77*55*118 |
200-5000 |
3-4 |
240 |
918-B120MM |
Φ1.5-Φ120 |
93*55*128 |
200-7000 |
4 |
280 |
918-150MM |
Φ8-Φ150 |
98*58*132 |
1000-8000 |
4-5.5 |
320 |
918-B200MM |
Φ50-Φ200 |
138*62*128 |
5000-12000 |
5.5 |
620 |
Maintenance
1. Operator must pay special attention to the safety of hands. FATIGUE OPERATION IS FORBIDEN !
2. The pressure should not be too tight. Overload work will shorter the life span of the machine.
3. If the cable cannot get through, operator has to check whether the belt is loose or the pressure is too light, or the blades are wrong directed.
4. If this machine works with heavy duty for a long time, operator has to check the transmission oil capacity, grease lubrication is required on the four shaft gears before working every three months.
5. Keep daily maintenance of the four bearing, any damager of bearing will cause shaft broken easily after continuous operating.
6. When work with bigger size cables, the upper shaft should be kept hanging on the same line by both sides.
7. Any loosing of the four lifting screw nuts of the transmission and motor have to be adjusted by fastening the chain and V-belt.
Note: the position of transmission and the motor have to be kept parallel
If the copper wire and rubber or plastic cannot be separated completely, please pay attention as below:
1, Choose the right feeding hole, adjust the positioning fixture via the diameter of cable‘
2,Adjust the gap between the drove-gears according to the diameter of cable.
Basically, the gap should be smaller than the diameter of cable.
3,Keep both sides of the long blades to be symmetrical, as well as the long blades and the position of fixture.

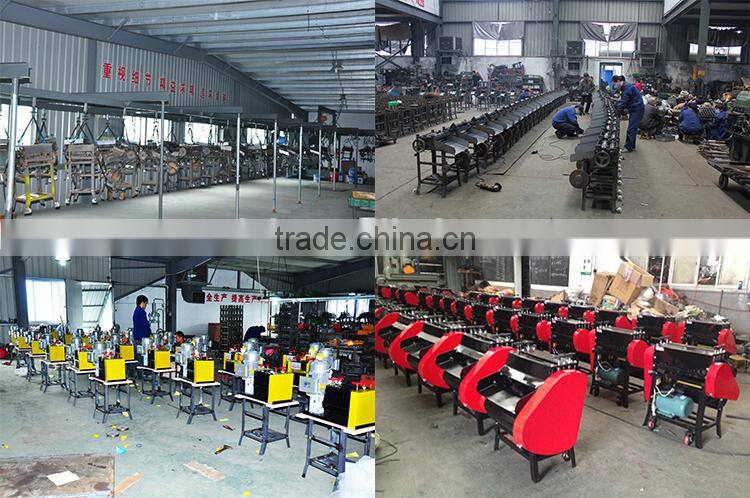

Workshop

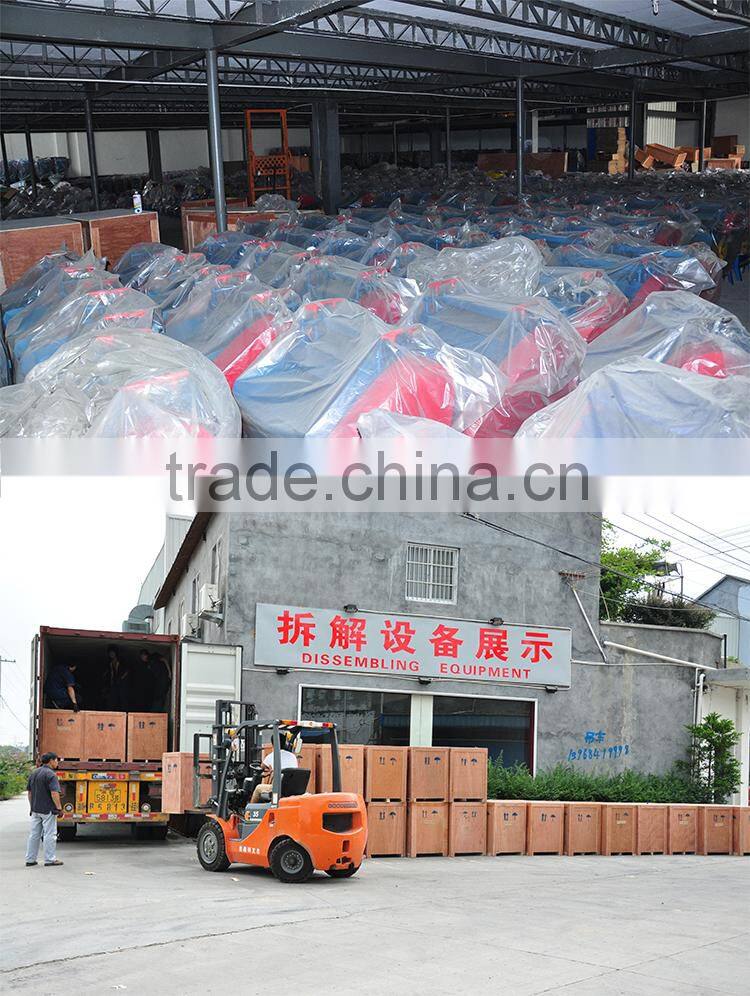

Package and shipping
Our Services
1) Lifelong Maintenance and considerate technical support.
2) Any problem before or after, you could find and talk with us anytime anywhere.
3) Technicians can be sent to abroad, door to door service.
4) Vedio/CD of test running and installation, Users’ Manual.
5) Complete parts& tools in box sent with machine.
We are a professional and experienced environmental protection dismantling machine manufacturer in China. We've specialized in field for a decade. Many of our products have been awarded national patents and utility model patents. So far, we have been certified by Quality Management System ISO 9001:2008 and CE. Every year, our sales volume is on the top among manufacturers in China. We have different models which have different function and capacity and we an make the most suitable solution according to your requirement.
Our products include: cable recycling machine, wire stripping machine, waste motor recycling machine, waste radiator recycling machine, pcb recycling machine, single shaft shredder, double shaft shredder, etc. Among them, cable recycling machine is our main product.
FAQ
1) Are you a factory or trade company?
We are professional dismantling machine manufacturer with own factory for 10 years, from a pure wire stripping machine producer, water-type copper wire recycling machine producer, to an experienced dry-type copper wire recycling machine and other environmental protection equipment producer.
2) How can I trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
b.Assessed by third party, national patents for all equipment, also CE, ISO.
c.Welcome to inspect anytime. We are near Shanghai airport.
d.About the machine, we do much better. Raw material, motor, outlook, overall design, stable ,smooth
3) How about the testing running & installation?
Before delivery, we have finished the test over 3 times.
If the machine you buy is of integral design, it doesn’t need installation at all. If it’s of parted design, we can send our technicians to your country to install and adjust.
4) Any warranty?
Under the proper usage, one year for whole machine except delicate parts.
5) Is your price competitive?
Only good-quality machine we supply. Surely we will give you best factory price based on superior product and service.
If you have any interest in this machine, please don't hesitate to contact me.
