SYCWM3-1800 Electric Robotic Arm
- 500 Set / Sets per Month
- Qingdao / Beijing/ Shanghai
- T/T Credit Card PayPal
- Material online identification and gripping robot for mining belt transport system material removal robot Foreign Object Removal Robot Robotic Manipulator
- deep learning platform 6 Axis Mining Robot Arm Robotic manipulator material removal robot
- robotic manipulator Material removal robot Foreign Object Removal Robot Robot Arm
- Material removal robot robotic manipulator Robot Arm Foreign Object Removal Robot
- For payload 1440mm industrial welding engraving automatic welder brazo 6 axis robot arm yaskawa robot
- For price 6 axis palletizer arc drill industrial robotic arm pendent welding fanuc robot arm
Product Details
Condition: | New | Vertical Travel(mm): | 1800mm | Horizonal Travel(mm): | 2400mm |
Application: | Other, Pick and put | Place of Origin: | Shandong, China | Brand Name: | SHENYU |
Model Number: | SYBWM3-1800 | Power(W): | 8000 | Certification: | CE,SGS |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Electric Robotic Arm SYCWM3-1800:
Features:
1. Traverse is mounted steel structure,high quality linear rail,driven by AC servo motor,high quality synchronous belt tomove the axis at high speed and strength with precise positioning;
2. Single beam structure on configured,high quality aluminum alloy material and linear rail on main body.Driven by AC servo motor,high quality gear wheel and rack to move the axis at high speed and strength,light weight,low noise anf with precise positioning;
3. The vertical arms incorporate a telescopic mechanism for times speed,high quality aluminum alloy material and linear rail on maain bidy.Driven by AC servo motor,high quality gear wheel and rack to move the axis at high speed and strength,light weight,low noise and with precise positioning,satisfying low workshop;
4. Driven by AC serovo motor for three axes,PLC control to carry out super high speed take-out acticity.32K color touch screen for convenient handle and 100 kinds of program memory.
Specifications:
Model | Unit | SYCWM3-1400 | SYCWM3-1600 | SYCWM3-1800 | SYCWM3-2000 |
Type | Telescopic type | ||||
Moulding machine size | ton | 470-700 | 700-1000 | 1000-1600 | More than1500 |
Vertical stroke | mm | 1400 | 1600 | 1800 | 2000 |
Crosswise stroke | mm | 900 | 900 | 1050. | 1250 |
Traverse stroke | mm | 1800 | 2100 | 2400 | 2800 |
Side angle pose | ° | 90 | |||
Max load (includes gripper) | Kg | 70 | 70 | 70 | 70 |
Minimun take time | Sec | 4.5 | 5 | 5.5 | 6 |
Dry cycle time(without gripper) | Sec | 15 | 20 | 25. | 30 |
Drive mode | Rampant, crosswise, arms up and down - a servo motor drive; Posture - cylinder drive | ||||
Working air pressure | Kgf/cm² | 6 | |||
Air consumption | NL/cycle | 20 | 26 | 28 | 30 |
Power consumption | KW | 2.5 | 6 | 8 | 10 |
Power | AC200±10%(50/60Hz) |
Machine size can be customized

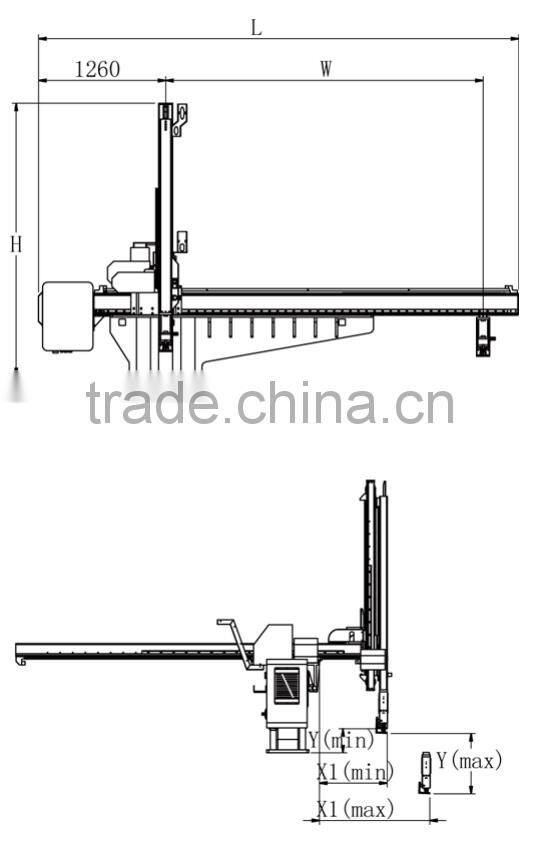

Model | H | L | Y1 | W | X1min | X1max |
SYWM3-1400 | 2150 | 3565 | 310 | 1850 | 450 | 1750 |
SYWM3-1600 | 2250 | 3765 | 310 | 2050 | 450 | 1850 |
SYWM3-1800 | 2350 | 3965 | 310 | 2250 | 450 | 1950 |
SYWM3-2000 | 2450 | 4265 | 310 | 2450 | 450 | 2050 |
Robot arm has been widely applied to household appliances, computer and peripherals products, photoelectric, cosmetic, automobile, clocks and watches, precision gear, PET bottle embryo, beach chair, audio-visual music, light guide, communication electronic, mobile phones, medical supplies, medicine packaging, food packaging, etc.
