Beam Robot Arm for Injection SYKSM2-900
US$ 3,000 - 8,000
MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Vertical Travel(mm):
900mm
Horizonal Travel(mm):
1500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Beijing/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SYCWM3-1600 Place Robot MachineUS$ 5,000 - 30,000MOQ: 2 Sets -
Hot Sale 3 Axis Robot Arm Plastic Industrial IML Robot Arm SYCWM3-1600US$ 5,000 - 30,000MOQ: 2 Sets
-
SYBWM1-900S Servo Robot Arm Traverse SeriesUS$ 3,000 - 8,000MOQ: 2 Sets
-
SYCWM3-1400 Mechanical RobotUS$ 5,000 - 18,000MOQ: 2 Sets
-
SYKSM2-700 Plastic Picking MachineUS$ 3,000 - 8,000MOQ: 2 Sets
Condition
New
Vertical Travel(mm)
900mm
Horizonal Travel(mm)
1500
Application
Other, Pick and put
Place of Origin
Shandong, China
Brand Name
SHENYU
Model Number
SYKSM2-900
Power(W)
2000W
Certification
CE,SGS
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas

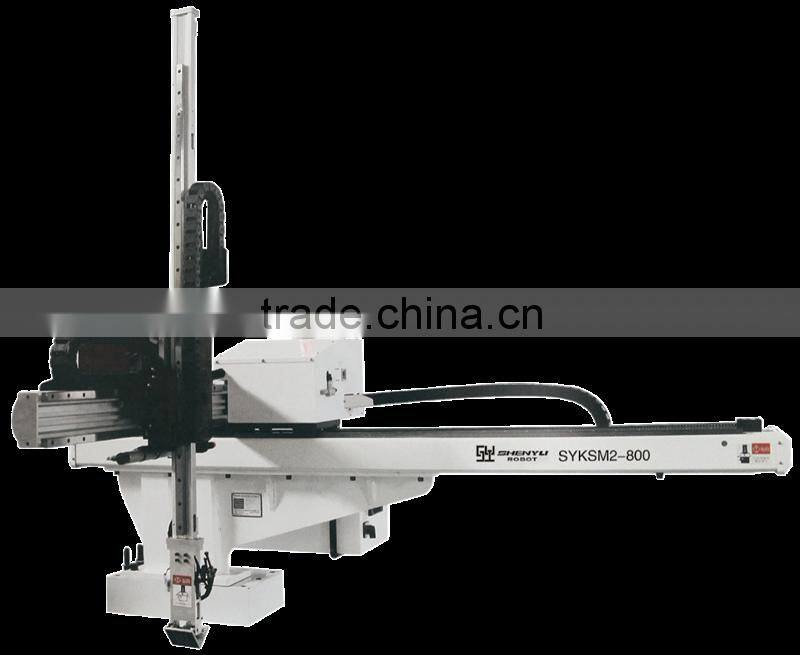

Beam robot arm for injection SYKSM2-900:
Specifications:
| Model | Unit | SYKSM2-900S |
| Type | Telescopic type | |
| Moulding machine size | ton | 160-300 |
| Vertical stroke | mm | 900 |
| Crosswise stroke | mm | 250 |
| Traverse stroke | mm | 1500 |
| Side angle pose | ° | 90 |
| Max load(Includes gripper) | Kg | 5 |
| Minimun take time | Sec | 1.2 |
| Dry cycle time(withou gripper) | Sec | 4 |
| Drive mode | Rampant, arms up and down - a servo motor; Stubbs - - Pressure | |
| Working air preesure | Kgf/cm² | 6 |
| Air consumption | NL/cycle | 10 |
| Power consumption | KW | 2 |
| Power | AC200±10%(50/60Hz) |
Machine size can be customized as your request.
Our factory:

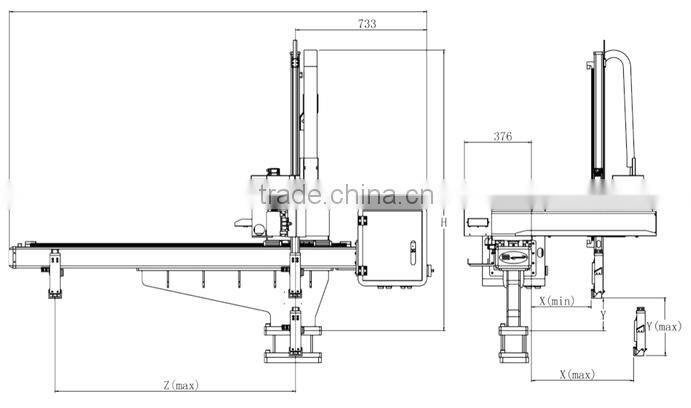

| Model | Z | Y | H | Xmin | Xmax |
| SYKSM2-700 | 1500 | 700 | 1600 | 160 | 730 |
| SYKSM2-800 | 1500 | 800 | 1700 | 160 | 730 |
| SYKSM2-900 | 1500 | 900 | 1800 | 160 | 730 |
