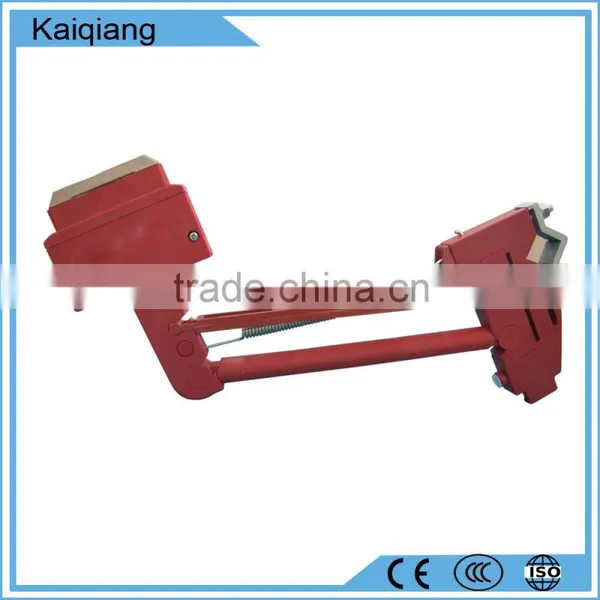

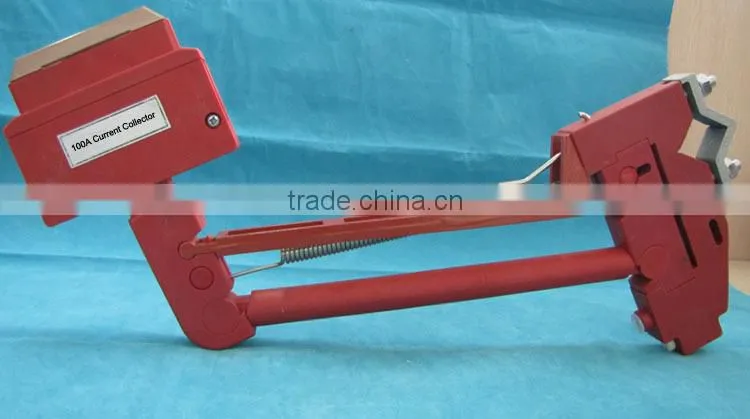

100A Double Isolation Collector
- 10000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
- Hand tool parts castings
- OEM/ODM steel air tool parts / needle bar bushing
- air chuck,air accessory,pneumatic tool parts
- Air conditioner parts develop stamping tooling die
- Investment Casting Pneumatic tools accessories with Stainless Steel and Alloy Steel Materials
- customized high quality Milling Tools
Product Details
Place of Origin: | Shandong, China | Brand Name: | kaiqiang | Model Number: | 100A Double Isolation Collector |
Product Description

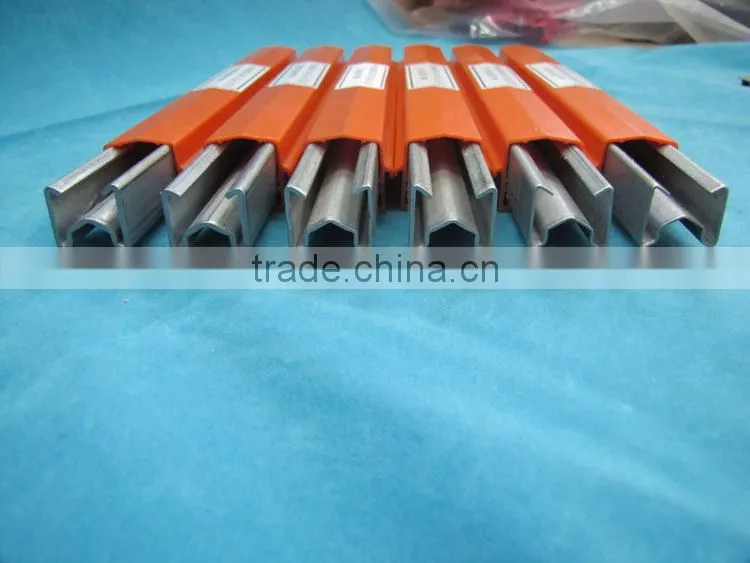

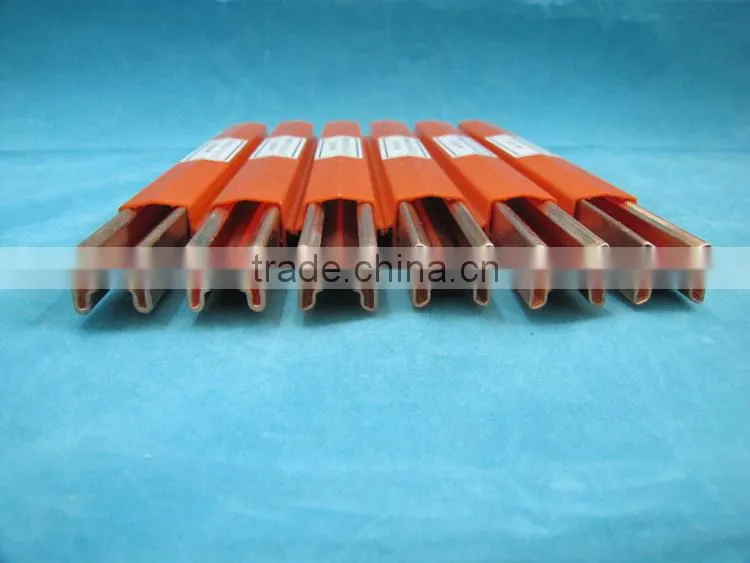

Conductor bar Specifications
We are the Conductor Bar System Manufacturer and all the products are produced by our moulds
Detailed Product Description
Detailed Product Description

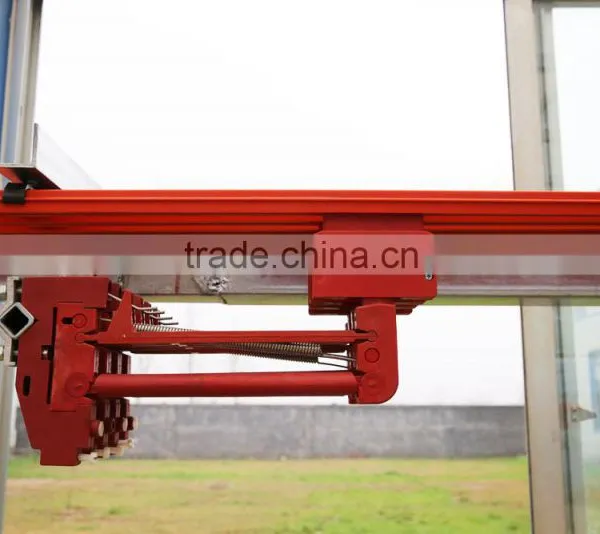

The sing pole conductor bar system is a modern power supply system using single pole insulated conductor rails.
It complies with the latest regulations and provides the electric energy for material handling equipment such as overhead cranes.
The aluminum conductor bar is provided with a proven and patented stainless steel contact surface. Any numbers of poles can be installed vertically or horizontally, on straight or curved systems.
The entire conductor rail system can be installed indoor or outdoor. It is insulated conforming to Current Safety Regulations. Ground insulation cover is marked yellow-green on one side over the entire length of the rail.
R Type: for curves R≥1500mm.
Approved and listed by: CCC, ISO9001, SGS and CE.
Application
The ranges of applications of Single Pole Insulated Conductor Bar System:
1 Overhead and elongated tracks for cranes.
2 Electric hoists, electric tools, stacking systems, monorail systems.
3 Monorail systems.
4 Other applications for supplying power to moving power load.
Top Quality Factory Price Insulated Crane Bus Bar, Kaiqiang Mobile Electrification System Busway -
Transfer Guides, Kaiqiang single pole series is similar with VAHLE, Insulated Conductor System
Single Pole Conductor Rail, Power rails, Conductor Bar, Bus Bar, DSL System, Conductor Trolley Bar, IGS
Features:
1.Quick and Easy Assembly
2.Lower AC Impedence and Excellent Electrial Conductivity
Applications:
1.Overhead Cranes,Monorails
2.Automated Storage and Retrieval Systems
Descriptions:
1.Expansion Sections not Required for Runs Less than 200m.
2.Permissible Ambient Temperature:-34°C ~85°C(Standard Cover),-80°C ~125°C(Medium Heat Cover)
3.You also need the following components to make up standard conductor bar systems:
Joints; Joint Covers; Hanger Clamps; Brackets; Power Feeds;End Covers;Current Collectors;Expansion Joints
4. Other customer-made types are available.

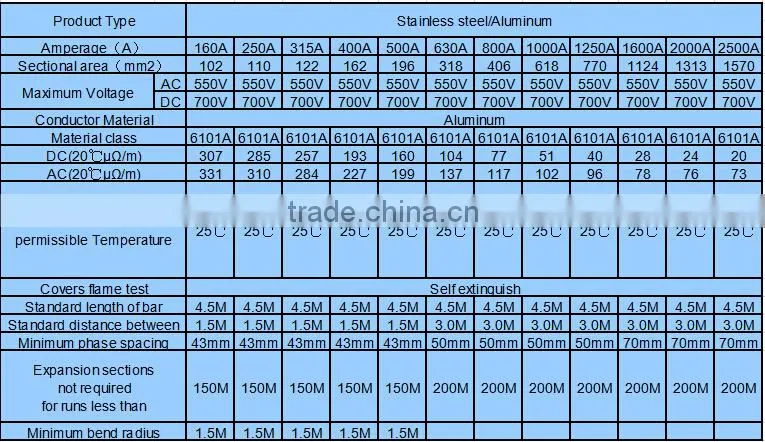

Product Type | ||||||||||

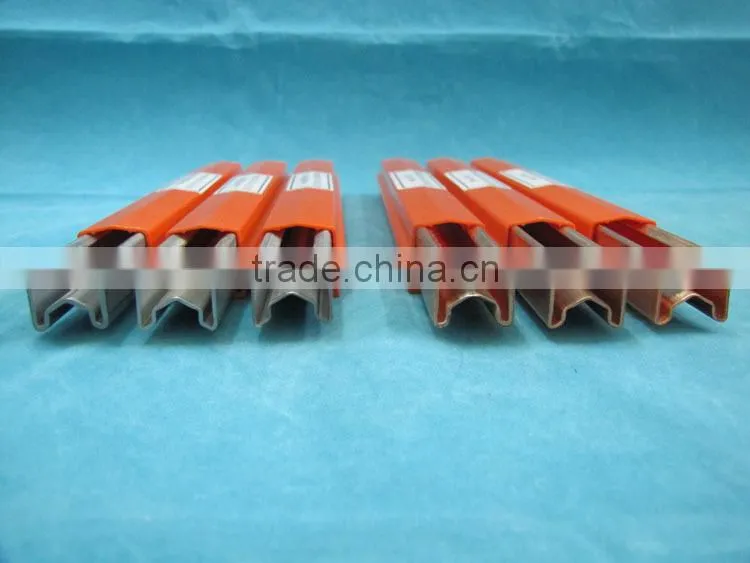

Galvanized steel | Copper | Stainless steel/Aluminum | ||||||||
Amperage(A) | 60A | 100A | 125A | 160A | 250A | 400A | 200A | 315A | 400A | |
Sectional area(mm2) | 50 | 63 | 93 | 50 | 63 | 93 | 104 | 120 | 157 | |
Maximum Voltage | AC | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V | 550V |
DC | 700A | 700A | 700A | 700A | 700A | 700A | 700A | 700A | 700A | |
Conductor Material | Galvanized steel | Copper | Aluminum | |||||||
Material class | M Steel | M Steel | M Steel | T2 | T2 | T2 | 6101A | 6101A | 6101A | |
DC(20℃μΩ/m) | 3584 | 2867 | 1933 | 342 | 274 | 184 | 301 | 261 | 199 | |
AC(20℃μΩ/m) | 3604 | 2891 | 1968 | 364 | 300 | 221 | 325 | 288 | 219 | |
Full load permissible Temperature | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | 25℃ | |
Covers flame test | Self extinguish | |||||||||
Standard length of bar | 4.5M | 4.5M | 4.5M | 4.5M | 4.5M | 4.5M | 4.5M | 4.5M | 4.5M | |
Standard distance between hanger clamp | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | |
Minimum phase spacing | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm | 43mm | |
Expansion sections not required for runs less than | 150M | 150M | 150M | 150M | 150M | 150M | 150M | 150M | 150M | |
Minimum bend radius | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M |

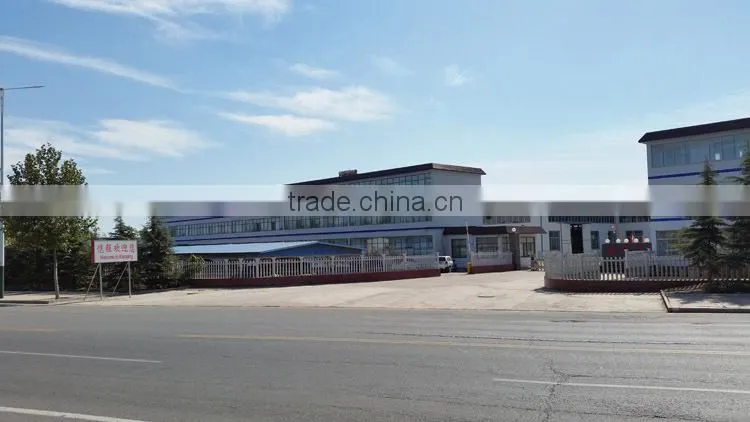

Shandong Linqu Kaiqiang Lifting Equipment CO., LTD., located in No. 6000 north ring road
of Linqu county over 40000 square meters, is a professional manufacturer specializing in research and
development, producing and sales. Our main fields are accessories for lifting equipment. Our main in
conductor bar system, festoon system, electrical chain hoist, and other lifting accessories. All our products
are well suit especially for all kinds of cranes.
"Quality is our life, integrity is our impetus", the most precious treasure of the Kaiqiang company, is the ultimate
driving force that keeps us moving on.

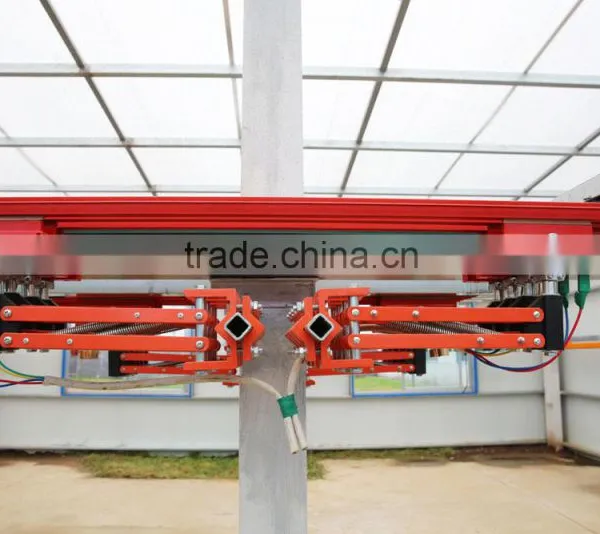

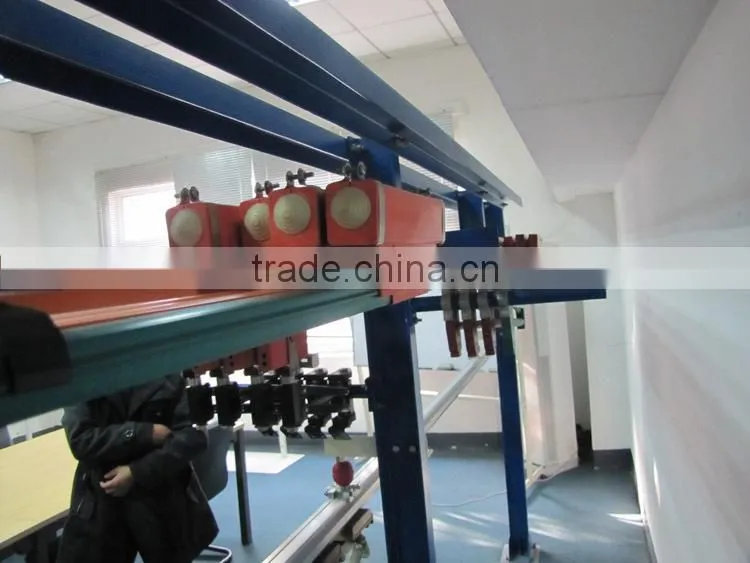

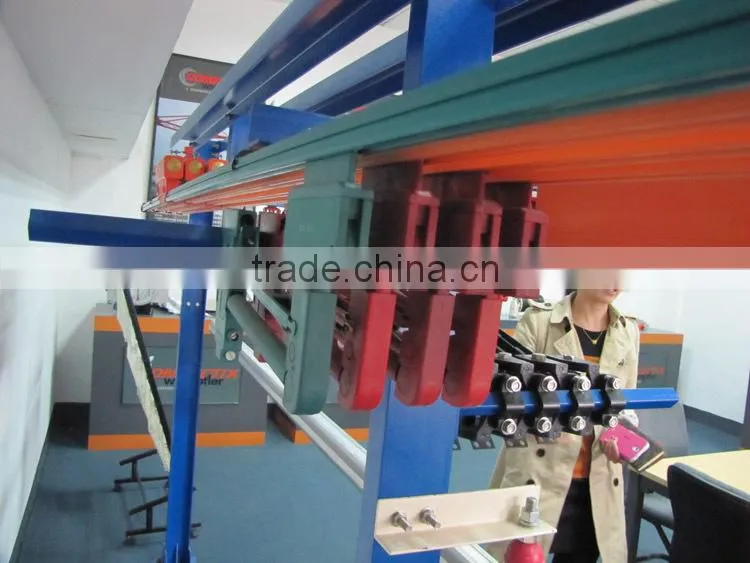

Conductor Bar Workshop and Engineering Project

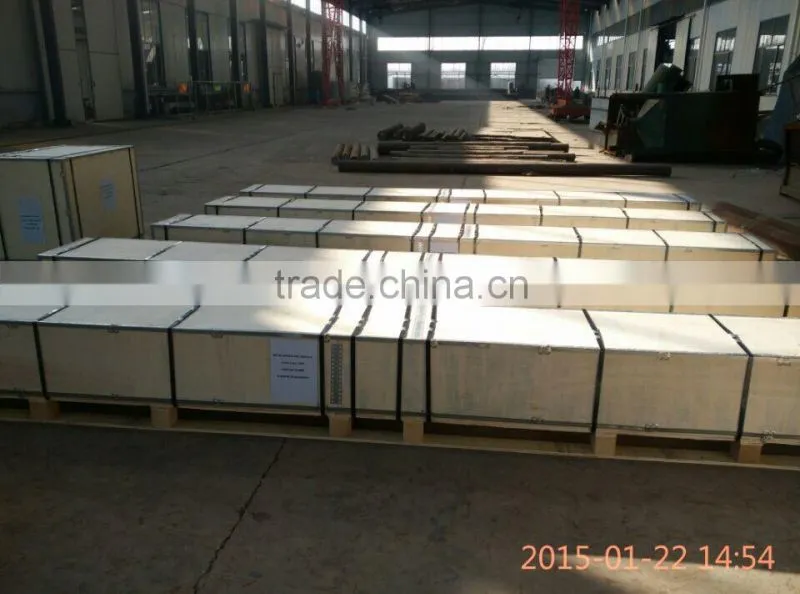

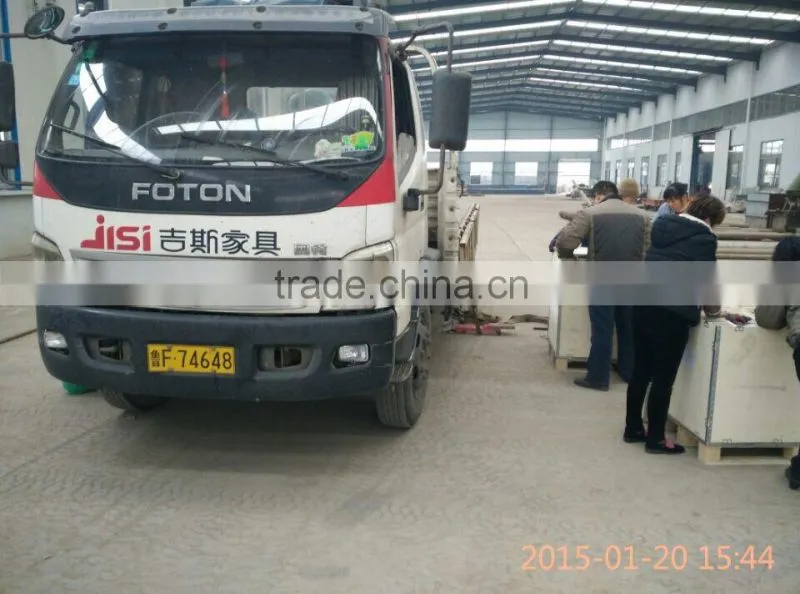

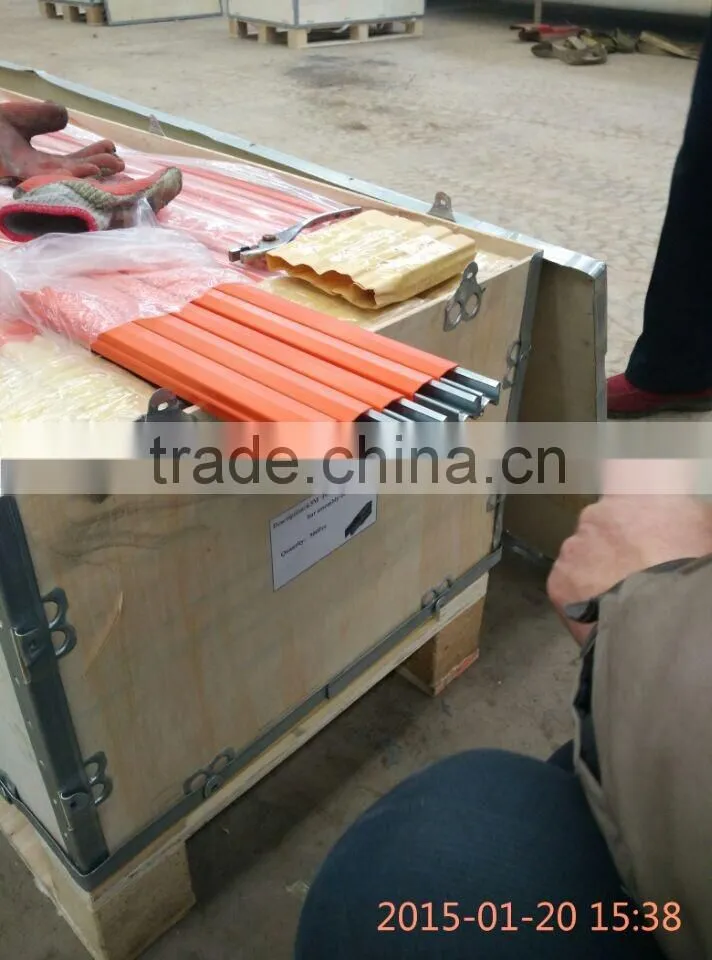

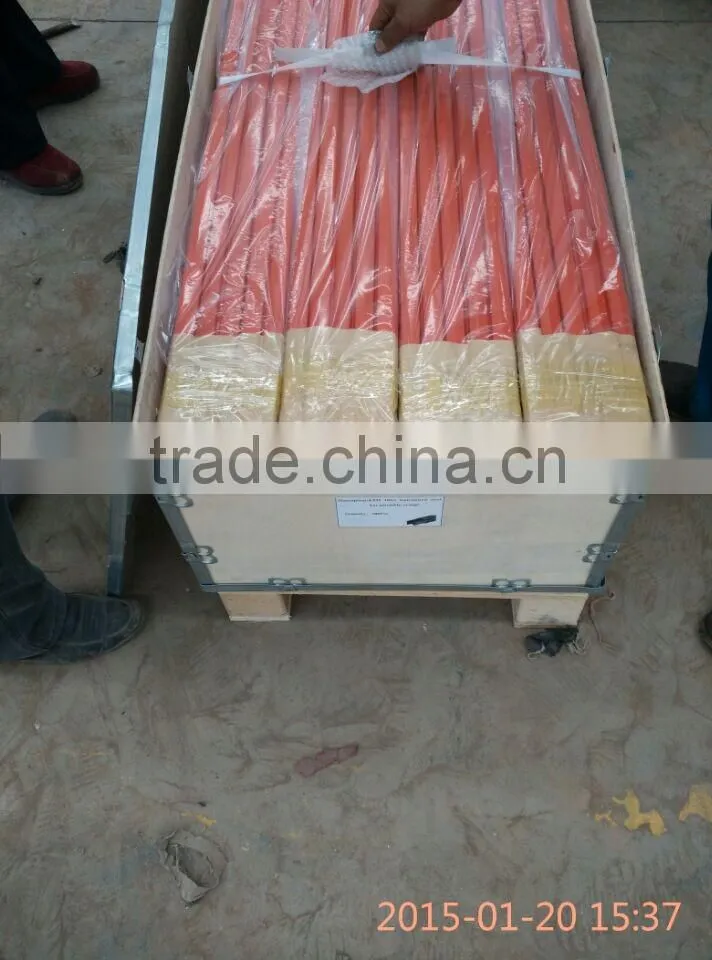

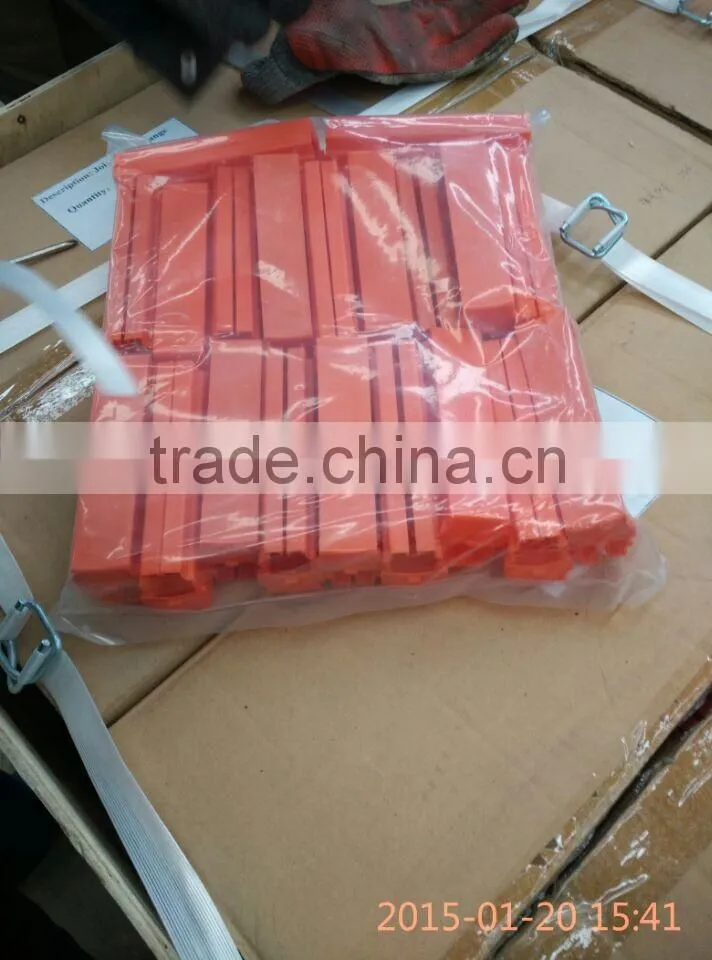

Conductor Bar Packing - MDF Wooden Box
, |
Sales Manager Linda
Skype: conductorbar
wechat: linda480846
Q Q: 1339352588
Telephone: 0086-156 3129 3989
