Specifications
we are the 4 core Flat Cable Manufacturer and have passed CE, IOS certifications.
Specifications

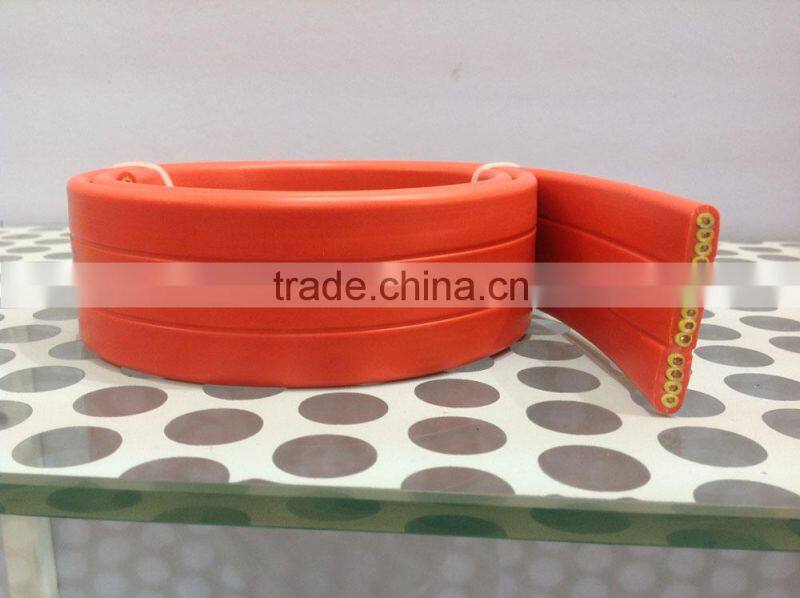

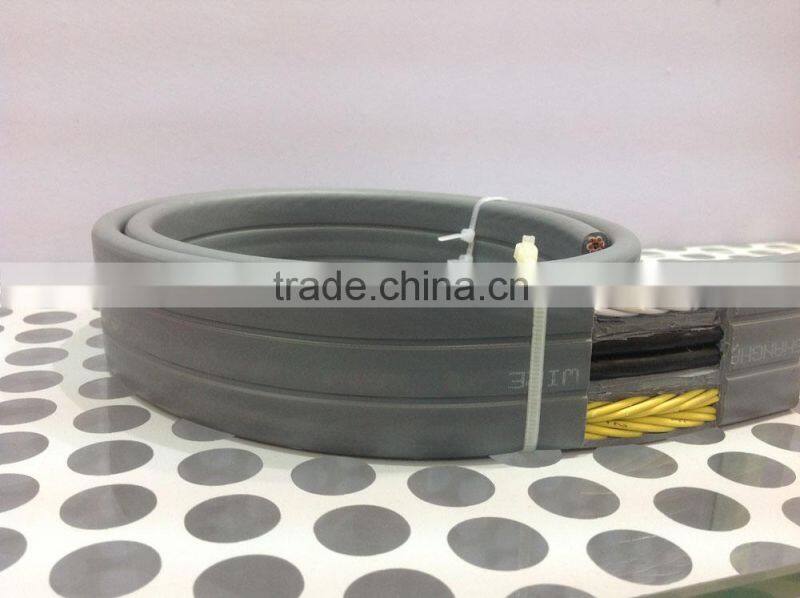

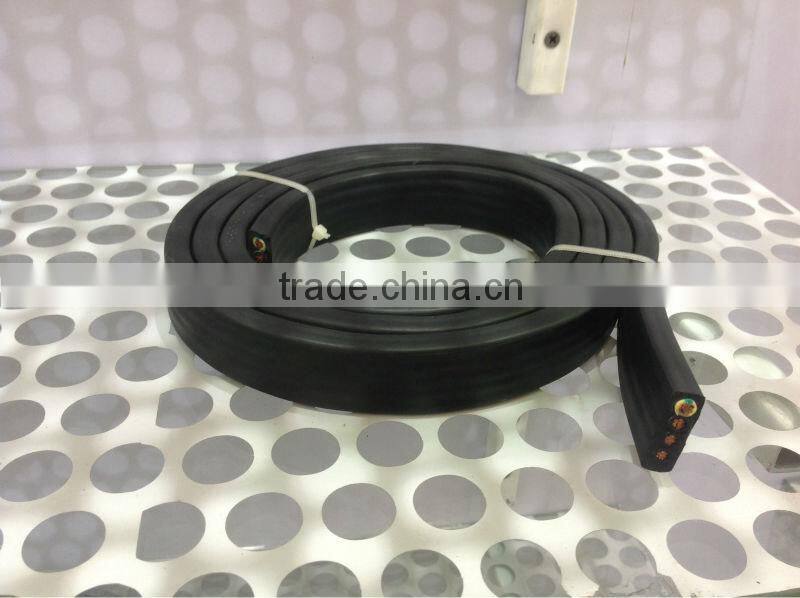

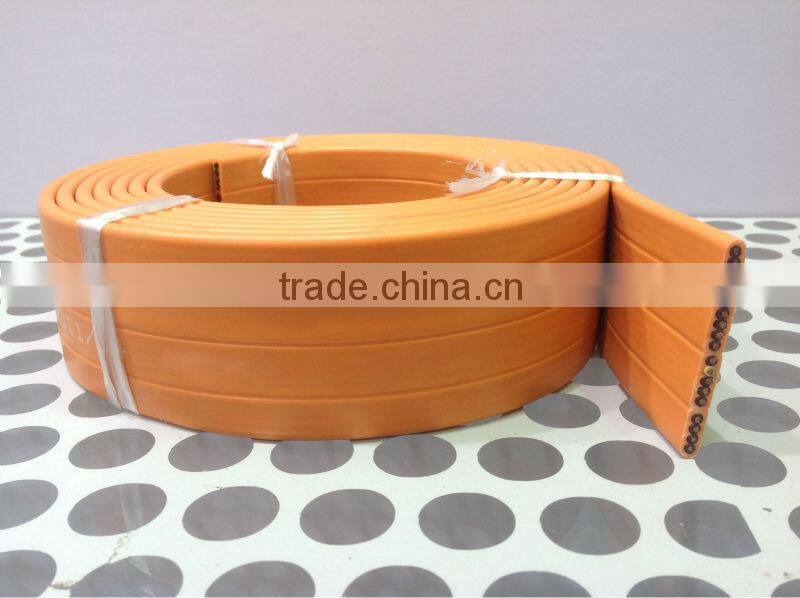

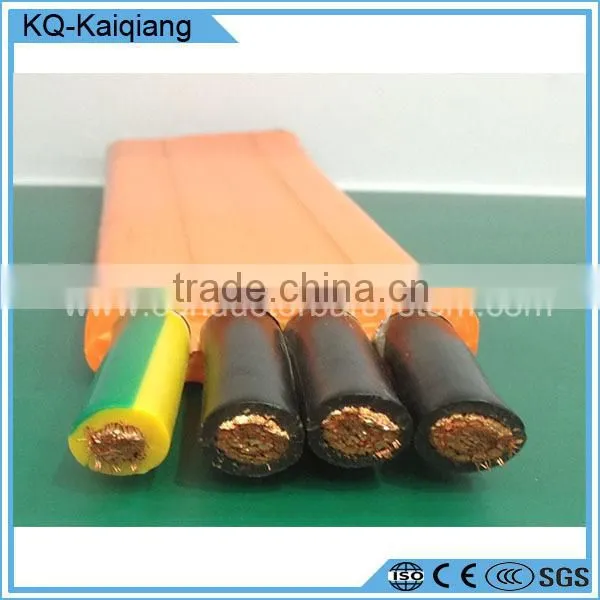

4 core Flat Cable
1. Applied in crane equipments
2. flexible NBR Jacket
3. high quality, competitive prices

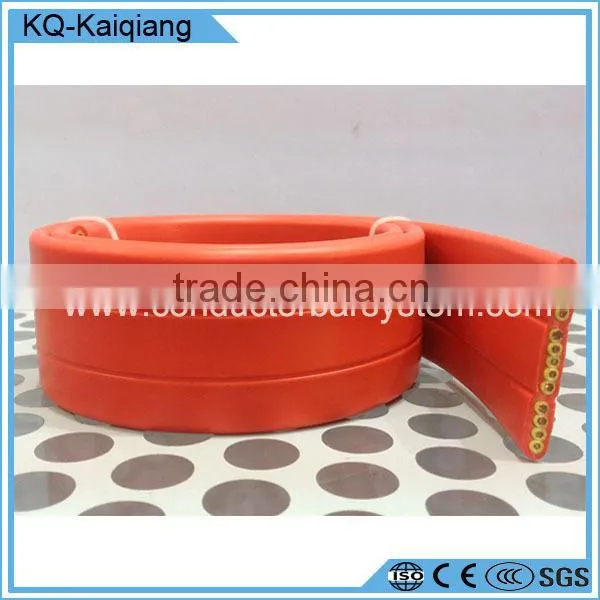

Flexible Flat Crane Cable for Control System
Applications:
As connecting and control cable for cranes and conveyors, it Is suitable for the places of railway stations, crane and other Related situations It is suitable as a control and connection cable for cranes and Conveyors on building sites, container goods railway stations And dockyards where operating conditions are rough.
Properties:
Sheath: Special polychloreprene(Butadiene-acrylonitrile rubber) , it remains fexible at -15C flame resistance and self-extinguishing

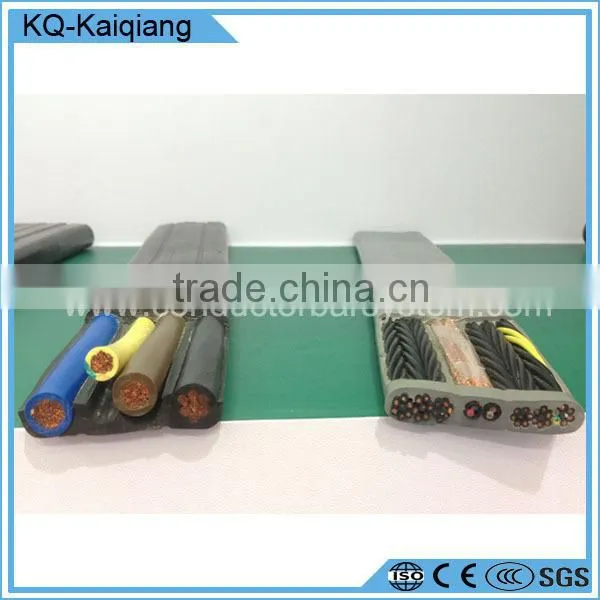

Structure:
Conductor: Superfine copper strands acc. To VDE 0295, class 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-exit Inguishing
Colour: Acc. To 227IEC (brown, blue, black, green/yellow)
5 cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber; Resistant to oil, flame retardant And self-exitinguishing;
Colour: Black(RAL9005) OR Grey(RAL 7001)
Standard: Acc. To VDE 0482, part 265-2-2 resp. EN 50265-2-1 and IEC60332-1
Technical data:
Rated voltage: ≤ 1.5mm: 300/500V ≥ 1.5mm: 450/750V
Test voltage: ≤ 1.5mm: 2500V ≥ 1.5mm: 3000 V
Minimum bending radius: 0.3m≤ L≤ 0.6M
Burning vertically test: GB/T1 8380.1-2001, IEC60332-1: 1993 test
Passedstandard: GB5023.6, IEC60227-6, EN50214.
Temperature range: -15C to +70C
Cables are recommender for installations where the suspended length
Doesnt exceed 80m: And the speed of travel does not exceed 4m/s.
If it more than this, with steel.
| Type | Cores | Sections(mm2) | width(mm) | thickness(mm) | Denity(kg/km) | Shape |
| YFFB | 8 | 1.25 | 28.4± 1.5 | 6.2± 0.5 | 335.2 | LINE TYPE |
| YFFB | 9 | 1.25 | 31.3± 2.0 | 6.2± 0.5 | 371.4 | LINE TYPE |
| YFFB | 10 | 1.25 | 34.2± 2.0 | 6.2± 0.5 | 407.6 | LINE TYPE |
| YFFB | 11 | 1.25 | 37.1± 2.0 | 6.2± 0.5 | 443.9 | LINE TYPE |
| YFFB | 12 | 1.25 | 40.0± 2.0 | 6.2± 0.5 | 480.1 | LINE TYPE |
| YFFB | 13 | 1.25 | 42.9± 2.0 | 6.2± 0.5 | 516.3 | LINE TYPE |
| YFFB | 14 | 1.25 | 46.8± 2.0 | 6.2± 0.5 | 561.2 | LINE TYPE |
| YFFB | 15 | 1.25 | 49.7± 2.0 | 6.2± 0.5 | 597.4 | LINE TYPE |
| YFFB | 16 | 1.25 | 52.6± 2.0 | 6.2± 0.5 | 633.6 | LINE TYPE |
| YFFB | 17 | 1.25 | 55.5± 2.0 | 6.2± 0.5 | 669.9 | LINE TYPE |
| YFFB | 18 | 1.25 | 59.4± 2.0 | 6.2± 0.5 | 714.8 | LINE TYPE |
| YFFB | 19 | 1.25 | 62.3± 2.5 | 6.2± 0.5 | 751 | LINE TYPE |
| YFFB | 20 | 1.25 | 65.2± 2.5 | 6.2± 0.5 | 787.2 | LINE TYPE |
| YFFB | 4 | 4 | 21.9± 1.5 | 7.3± 0.5 | 360.4 | LINE TYPE |
| YFFB | 5 | 4 | 27.3± 1.5 | 7.3± 0.5 | 447.3 | LINE TYPE |
| YFFB | 6 | 4 | 31.7± 2.0 | 7.3± 0.5 | 523.8 | LINE TYPE |
| YFFB | 7 | 4 | 36.1± 2.0 | 7.3± 0.5 | 600.3 | LINE TYPE |
| YFFB | 8 | 4 | 40.5± 2.0 | 7.3± 0.5 | 676.8 | LINE TYPE |
| YFFB | 9 | 4 | 44.9± 2.0 | 7.3± 0.5 | 753.3 | LINE TYPE |
| YFFB | 10 | 4 | 49.3± 2.0 | 7.3± 0.5 | 829.8 | LINE TYPE |
| YFFB | 11 | 4 | 53.7± 2.0 | 7.3± 0.5 | 906.3 | LINE TYPE |
| YFFB | 12 | 4 | 58.1± 2.0 | 7.3± 0.5 | 982.8 | LINE TYPE |
| YFFB | 13 | 4 | 62.5± 2.5 | 7.3± 0.5 | 1059.3 | LINE TYPE |
| YFFB | 14 | 4 | 67.9± 2.5 | 7.3± 0.5 | 1146.2 | LINE TYPE |
| YFFB | 15 | 4 | 72.3± 2.5 | 7.3± 0.5 | 1222.7 | LINE TYPE |
| YFFB | 16 | 4 | 76.7± 2.5 | 7.3± 0.5 | 1299.2 | LINE TYPE |
| YFFB | 17 | 4 | 81.1± 2.5 | 7.3± 0.5 | 1375.7 | LINE TYPE |
| YFFB | 18 | 4 | 86.5± 2.5 | 7.3± 0.5 | 1462.5 | LINE TYPE |
| YFFB | 19 | 4 | 90.9± 2.5 | 7.3± 0.5 | 1539 | LINE TYPE |
| YFFB | 4 | 6 | 26.9± 1.5 | 8.0± 0.5 | 498.1 | LINE TYPE |
| YFFB | 5 | 6 | 32.0± 2.0 | 8.0± 0.5 | 601.7 | LINE TYPE |
| YFFB | 6 | 6 | 38.7± 2.0 | 8.0± 0.5 | 723.4 | LINE TYPE |
| YFFB | 7 | 6 | 42.2± 2.0 | 8.0± 0.5 | 809 | LINE TYPE |
| YFFB | 8 | 6 | 48.9± 2.0 | 8.0± 0.5 | 930.7 | LINE TYPE |
| YFFB | 9 | 6 | 54.0± 2.0 | 8.0± 0.5 | 1034.3 | LINE TYPE |
| YFFB | 10 | 6 | 59.1± 2.0 | 8.0± 0.5 | 1138 | LINE TYPE |
| YFFB | 11 | 6 | 62.6± 2.5 | 8.0± 0.5 | 1223.5 | LINE TYPE |
| YFFB | 12 | 6 | 67.7± 2.5 | 8.0± 0.5 | 1327.1 | LINE TYPE |
| YFFB | 13 | 6 | 72.8± 2.5 | 8.0± 0.5 | 1430.7 | LINE TYPE |
| YFFB | 14 | 6 | 79.5± 2.5 | 8.0± 0.5 | 1552.5 | LINE TYPE |
| YFFB | 15 | 6 | 84.6± 2.5 | 8.0± 0.5 | 1656.1 | LINE TYPE |
| YFFB | 16 | 6 | 89.7± 2.5 | 8.0± 0.5 | 1759.7 | LINE TYPE |

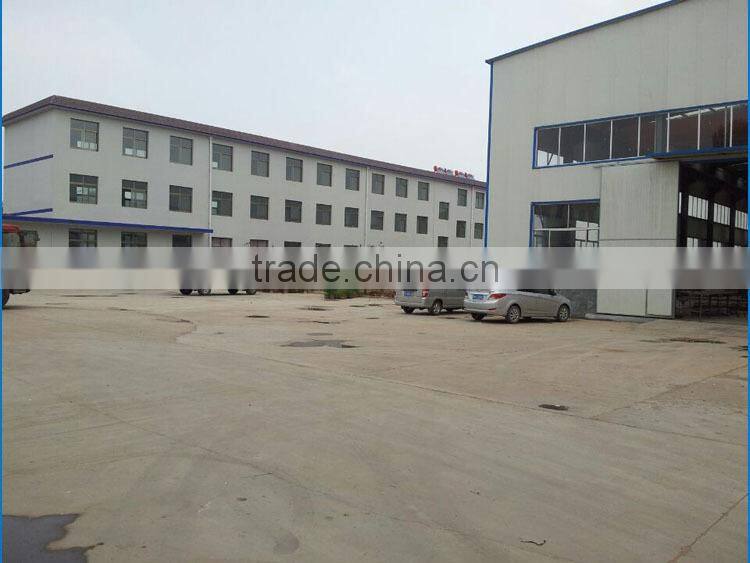

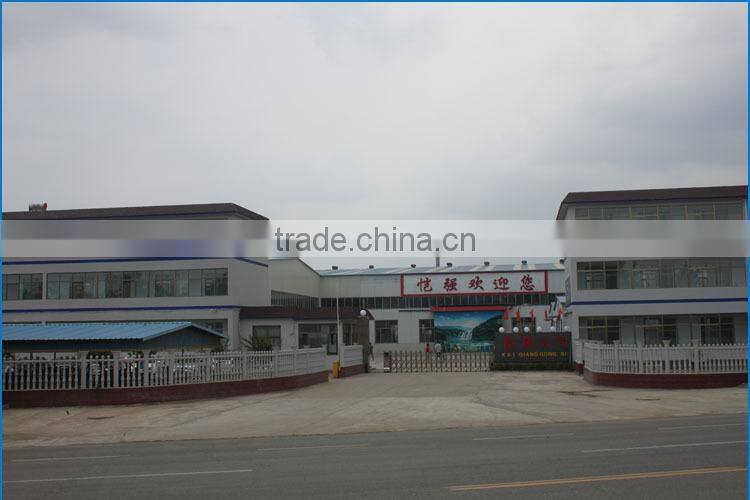

Shandong Linqu Kaiqiang Lifting Equipment CO., LTD., located in No. 6000 north ring road
of Linqu county over 40000 square meters, is a professional manufacturer specializing in research and
development, producing and sales. Our main fields are accessories for lifting equipment. Our main in
conductor bar system, festoon system, electrical chain hoist, and other lifting accessories. All our products
are well suit especially for all kinds of cranes.
"Quality is our life, integrity is our impetus", the most precious treasure of the Kaiqiang company, is the ultimate
driving force that keeps us moving on.
Shandong Kaiqiang Electric Equipment CO., LTD. is a professional manufacturer that specialized in research
development producting and sales. The feature products are Conductor Bar Systems, and aluminum mould.
Our products are optimally designed according to the advanced technology and equipment introduced from
France.
Our company has passed the certification of ISO9001:2000, reached the international standards of DIN534438,
NFEN60529-92, NFC32-070-91 and VDE0470, and met the certification of JB6391.1-92 and JB6391.2-92.
"Quality is our life, integrity is our impetus", the most precious treasure of the Kaiqiang company, is the ultimate
driving force that keeps us moving on.
