Specifications
Specificationspact structure2.operated convenient3.widely used4.handle or remote control5. exported many countries

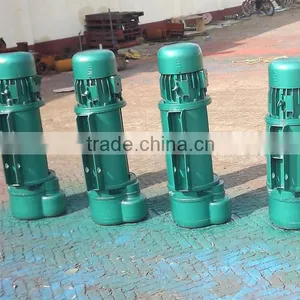

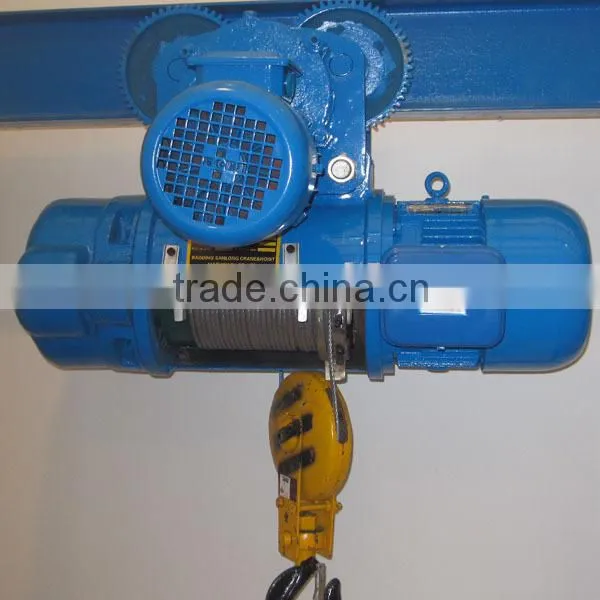

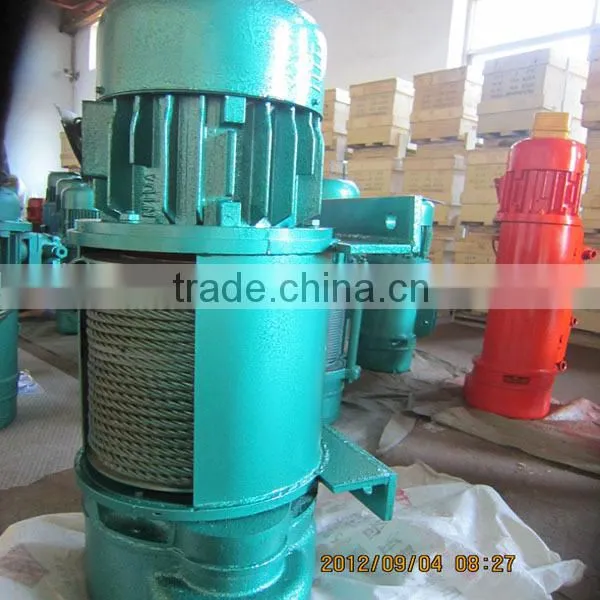

Electric cable hoist
CD1, MD1 type wire - rope electric hoist is a kind of light - saml lifting equipment with advantages of tight structure light weight, small volume, wide common use and convenient peration etc. If reducers with hard gear surface are applied, it will have long life and high mechanical efficiency. Conic rotor brake motors are equipped which has safety limiter in both up and down direcuons.
MD1 type electric hoists have fast and stow lifting speeds which make it lift steady and accurately.
CD1, MD1 type wire - rope electric hoists can be widely used to hoist heavy objects, or installed on the straight or curve I - steel beam of single-girder cranes. They can also be used together with Electric.
Hoist Double - Girder, gantry crane and slewing cranes. All the above has made the electric hoists common in industrial and mine enterprises, railway, wharfs and warehouses.
Technical Information
| MODEL | lifting capacity(TON) |
lifting height(METER) |
lifting speed (m/min) |
traveling speed (m/min) |
weight (kg) |
carton size (cm) 6m ropes basic |
| CD1-6D | 1 TON | 6M | 8M/MIN | 20M/MIN 30M/MIN |
145KG | 104CMx35CMx45CM |
| CD1-9D | 9M | 158KG | ||||
| CD1-12D | 12M | 180KG | ||||
| CD1-18D | 18M | 195KG | ||||
| CD1-24D | 24M | 208KG | ||||
| CD1-30D | 30M | 222KG | ||||
| CD2-6D | 2 TONS | 6M | 8M/MIN | 20M/MIN 30M/MIN |
235KG | 113CMx43CMx48CM |
| CD2-9D | 9M | 248KG | ||||
| CD2-12D | 12M | 396KG | ||||
| CD2-18D | 18M | 320KG | ||||
| CD2-24D | 24M | 340KG | ||||
| CD2-30D | 30M | 365KG | ||||
| CD3-6D | 3 TONS | 6M | 8M/MIN | 20M/MIN 30M/MIN |
280KG | 123CMx46CMx51CM |
| CD3-9D | 9M | 300KG | ||||
| CD3-12D | 12M | 350KG | ||||
| CD3-18D | 18M | 380KG | ||||
| CD3-24D | 24M | 405KG | ||||
| CD3-30D | 30M | 435KG | ||||
| CD5-6D | 5TONS | 6M | 8M/MIN | 20M/MIN 30M/MIN |
445KG | 140CMx51CMx60CM |
| CD5-9D | 9M | 470KG | ||||
| CD5-12D | 12M | 555KG | ||||
| CD5-18D | 18M | 590KG | ||||
| CD5-24D | 24M | 630KG | ||||
| CD5-30D | 30M | 670KG | ||||
| CD10-9D | 10TONS | 9M | 7M/MIN | 20M/MIN 30M/MIN |
1010KG | 162CMx72CMx72CM |
| CD10-12D | 12M | 1063KG | ||||
| CD10-18D | 18M | 1166KG | ||||
| CD10-24D | 24M | 1263KG | ||||
| CD10-30D | 30M | 1317KG |
Shandong Kaiqiang Electric Equipment CO., LTD. is a professional manufacturer that specialized in research
development producting and sales. The feature products are Conductor Bar Systems, and aluminum mould.
Our products are optimally designed according to the advanced technology and equipment introduced from
France.
Our company has passed the certification of ISO9001:2000, reached the international standards of DIN534438,
NFEN60529-92, NFC32-070-91 and VDE0470, and met the certification of JB6391.1-92 and JB6391.2-92.
"Quality is our life, integrity is our impetus", the most precious treasure of the Kaiqiang company, is the ultimate
driving force that keeps us moving on.
1 Q: What is your MOQ?
A, If you have agent in China arrange the delivery shipping for you, there will be no MOQ limited.
B, If you need us to arrange the delivery shipping, the MOQ will be 200 meters bus bar and mixed order can be
accepted.
2 Cooperation Procedure:
A, First send us an inquiry for quote, please be specific on products category, products name, products material,
product ampere, product quantity and required delivery time.
B, Then we will send you our best price with our company information.
C,We are glad to send you samples to let you test our products quality. We have our own Express company, so
we promise give you the bottom price of the Freight.
D, We may contact you for clarification or options during this period, please carefully review our quote, please
don’t hesitate to call or email us if you have any question or need any advice, make necessary revisions.
E, After confirming all the information by you, we will prepare a copy of PI (Proforma Invoice) or Purchase
Agreement; we will attach our Bank information.
F, When received your payment, we will start the production at once; when the good are finished, we will take all
the pictures from difference angle for your reference. Then we will arrange the shipment for you at once. At
last we will send you the Commercial Invoice and Packing List, especial the Original B/L.
