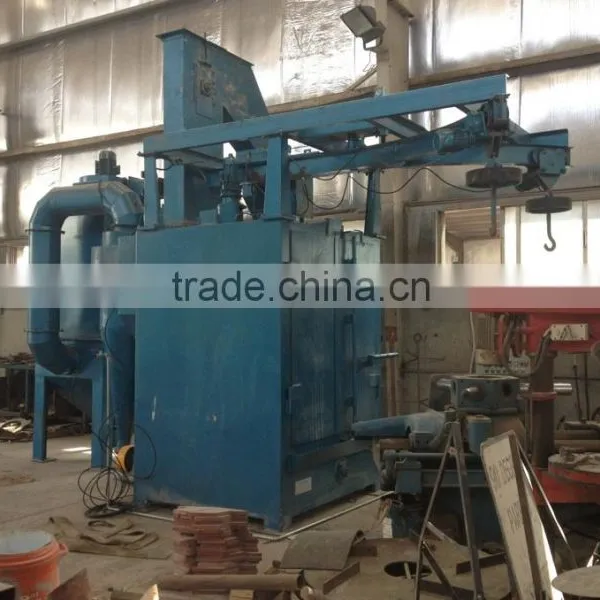

Casting Machineries Hook Type Shot Blasting Machine Sand Blasting photo-2

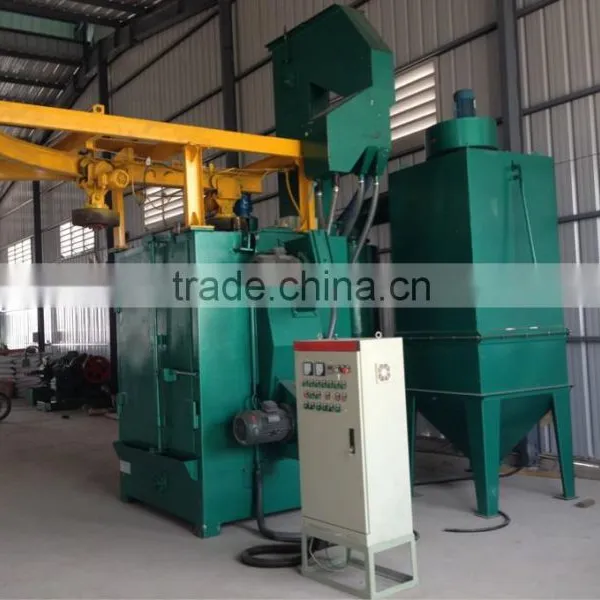

Casting Machineries Hook Type Shot Blasting Machine Sand Blasting photo-3

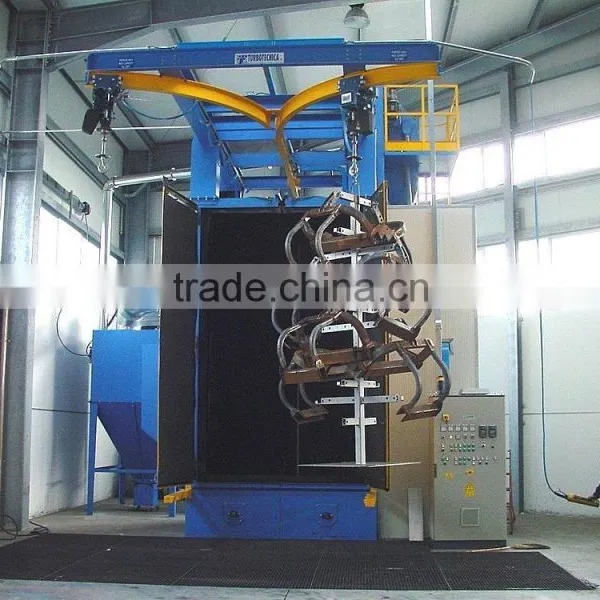

Casting Machineries Hook Type Shot Blasting Machine Sand Blasting photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Xinxing
Model Number:
Q376
Contact Supplier Request Quote Chat Now
Xinxing Casting Technology Development Department
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Xinxing
Model Number Q376

These series of shot blasting machine are suitable for cleaning and reinforcing the surface of various kinds of big, medium and small casting pieces, forge pieces and welded parts. And is especially suitable for long and thin parts which could not be collided.





Main Technique Parameter





Q375

Q376

Q378

Blast wheel

Rotate speed

3200r/min

3100r/min

2980r/min

Diameter of impeller

Φ360mm

Φ360mm

Φ420mm

Blasting amount

2x100kg/min

2x100kg/min

2x190kg/min

Size of cleaning room(m)

1.4x1.4x1.8

1.4x1.4x1.8

1.7x1.65x2.1

Maximum size of workpieces(mm)

Φ600x1200

Φ600x1200

Φ900x1500

Maximum weight of loading

600kg

600kg

800kg

Quantity of hook

1

1

2

Promoting amount of hoisting machine

15t/h

15t/h

25t/h

Wind amount of dust removal

3000m3/h

3000m3/h

3650m3/h

Total power

19kw

19.8kw

27.6kw

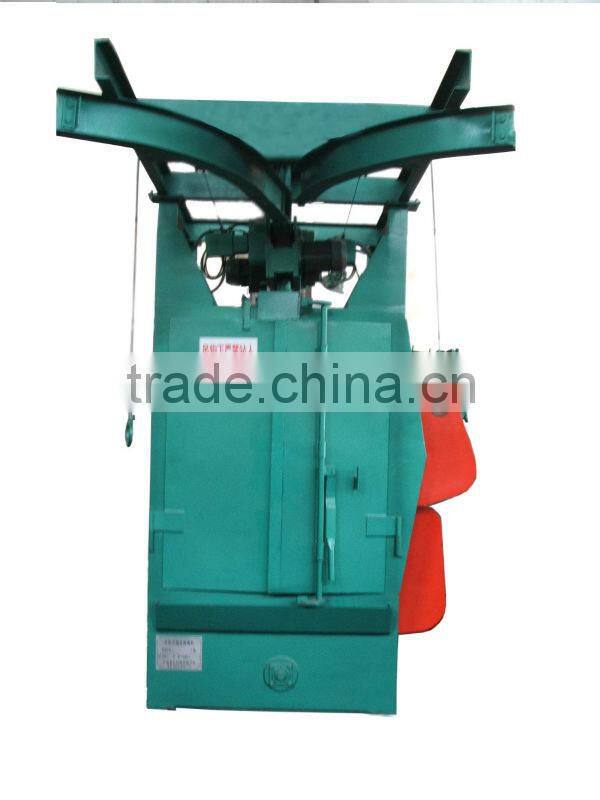

Casting machineries Hook Type Shot Blasting Machine sand blasting

Casting machineries Hook Type Shot Blasting Machine sand blastingCasting machineries Hook Type Shot Blasting Machine sand blasting

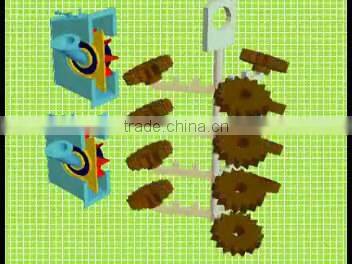

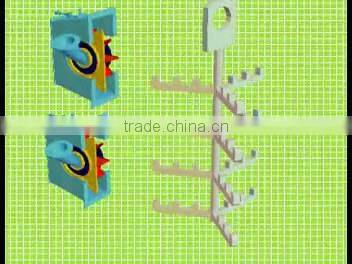

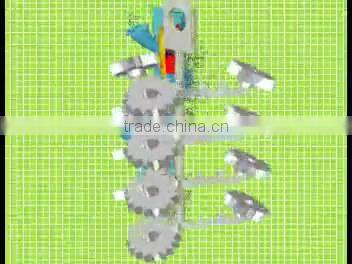

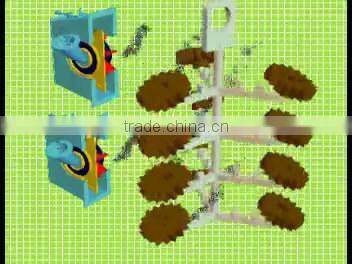

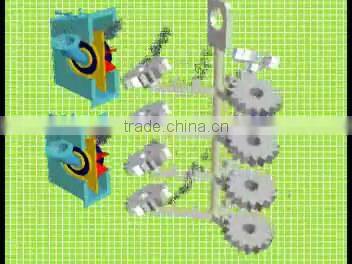

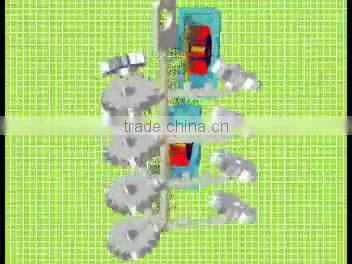

Working principle:

Casting machineries Hook Type Shot Blasting Machine sand blasting





Casting machineries Hook Type Shot Blasting Machine sand blasting



Casting machineries Hook Type Shot Blasting Machine sand blasting



Casting machineries Hook Type Shot Blasting Machine sand blasting



Casting machineries Hook Type Shot Blasting Machine sand blasting



Casting machineries Hook Type Shot Blasting Machine sand blasting



Cast Whole process

Xinxing casting technical development department is doing various casting machine,green sand casting machine is the most popular casting method.Can doing various parts,like iron ,copper,and many other kind parts.We can provide the whole process machine ,include mould desgin,jolt squeeze moulding machine,loose sand machine,sand core machine,induction furnace,and surface cleaning machine(like shot blasting machine ).We can provide the technical support,and we have more than 20 years experience.

Casting machineries Hook Type Shot Blasting Machine sand blasting

Simple green sand casting process ,suitable for mould no need to put sand core .

Casting machineries Hook Type Shot Blasting Machine sand blasting

This process can making the product which need to put sand core in the mould.And include the surface cleaning,can doing various kind of parts.



After-Sales Service

Casting machineries Hook Type Shot Blasting Machine sand blasting

1, One year warranty service.

2, Sending professional engineer to installation,

    debugging and training.

3, Provide video for teaching, installation instruction, and other

    relevant technical documents.

4, We have more than 20 years experienced casting engineer to

    solve any your problem.
