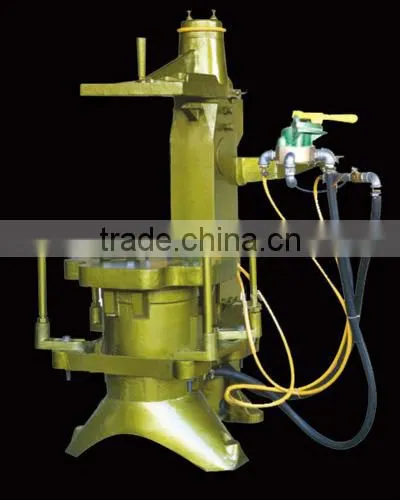

Pneumatic Moulding Machine:
This machine is applied to mass production of small-type castings, such as crafts, machine accessories, decorating lights, water warm and other castings, especially widely used in water warm sand casting field. It can produce castings with smooth surface and high precision size, which can control weight easily with high efficiency.
Main technical parameter:
Type |
ZJZ1 |
ZJZ2 |
Work table sizemm |
530X460 |
650X600 |
|
The distance between clips and work table mm |
550 |
550 |
Pressure strengthN |
30000 |
43000 |
Vibration strengthN |
1700 |
3000 |
Productivity/h |
40~60 |
40~60 |
|
Machine weight kg |
400 |
800 |
The use of pressure Mpa |
0.6 |
0.6 |
Any further request, pls contact me

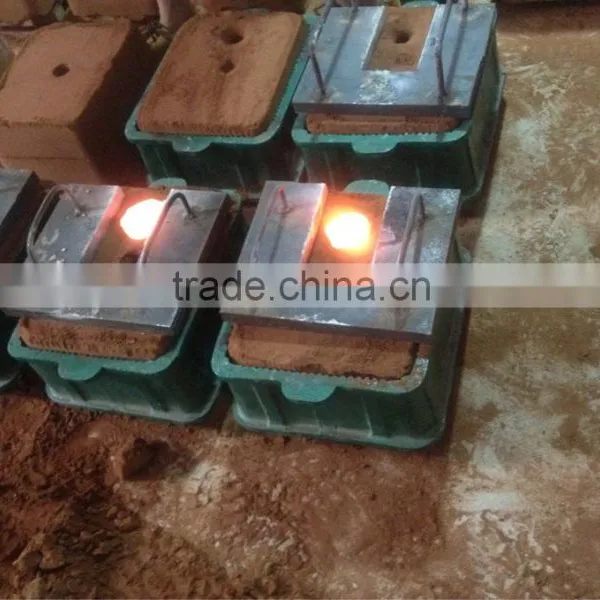

Sand box with finish moulding and pouring .
This is disk series(Moulding plate size:500*600mm)
This moulding plate size is 600*850mm.
This moulding plate size is 800*1000mm.

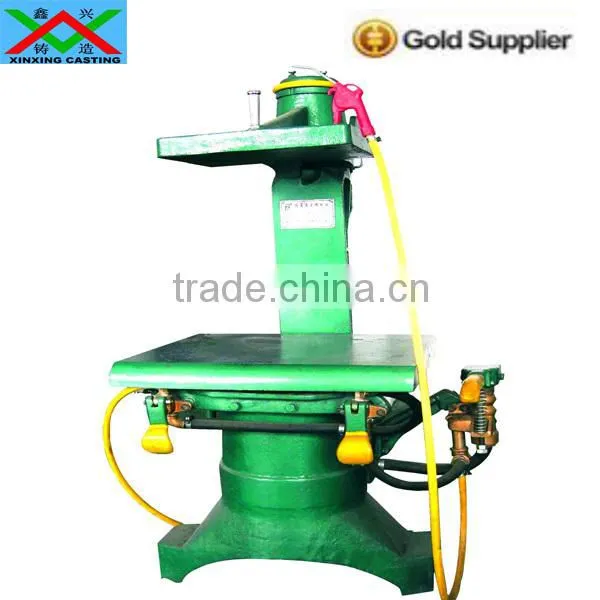

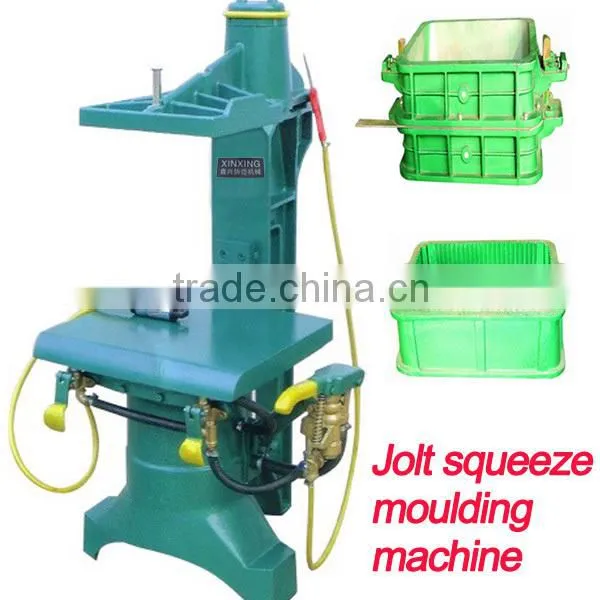

This is ZJZ1(Mold plate size:Max 530*460mm)
Xinxing casting technical development department is doing various casting machine,green sand casting machine is the most popular casting method.Can doing various parts,like iron ,copper,and many other kind parts.We can provide the whole process machine ,include mould desgin,jolt squeeze moulding machine,loose sand machine,sand core machine,induction furnace,and surface cleaning machine(like shot blasting machine ).We can provide the technical support,and we have more than 20 years experience.
Simple green sand casting process ,suitable for mould no need to put sand core .

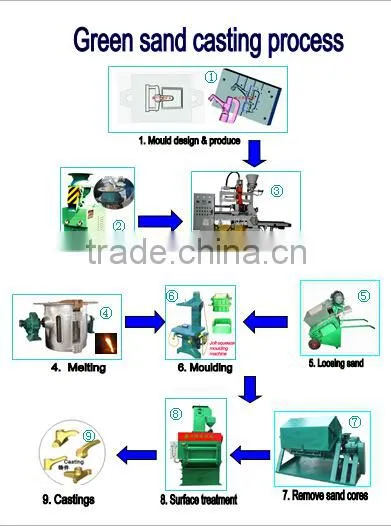

This process can making the product which need to put sand core in the mould.And include the surface cleaning,can doing various kind of parts.
