China high quality Half-size cup card Supports DiskOnChip2000 SSD
- 5000 Carton / Cartons per Month
- SheKou ChiWan
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Products Status: | Stock | Type: | Embedded Industrial Motherboard | Brand Name: | PONTRON |
Model Number: | PT-H4861 | Place of Origin: | Guangdong, China |
Product Description
Model No:PT-H4861
Main feature
.Onboard STPC 133MHz CPU
·Onboard 32M RAM
·2 x RS232
.40pin IDE and CF(Optional)
.Supports LAN/PC104(Optional)
.Supports DiskOnChip2000 SSD
Specification
CPU | Onboard STPC133MHz |
Chipset | STPC Consumer II 133 |
Memory | Onboard 32M RAM |
Storage | 1*40pin IDE, DiskOnChip2000 ,1*CF (Optional) |
Expansion Slots | PC/104(Optional) |
Back Panel I/O Port | 1 x VGA |
1 x RJ45 10/100M LAN(Optional) | |
1 x RS232 | |
1 x PS/2 KB&MS | |
Internal I/O Port | 1 x RS232 header |
1 x LPT header | |
1 x 40pin IDE | |
1 x CF(Optional) | |
Watchdog Timer | Software programmable |
Bus Standard | Half-size ISA |
Power supply | DC5V AT/ATX |
Dimension | 185 x 122mm |
OS | Linux/DOS |
Operating Temperature | 0°C ~ 60°C |
Storage Temperature | -20°C ~ 80°C |
Storage Humidity | 5~90%@40°C(non-condensing) |
Ordering information
PT-H4861 | Half-size ISA CPU Card, W/STPC133MHz/32M Ram/1*VGA/1*COM/1*PS2 KB/MS/LPT/IDE |

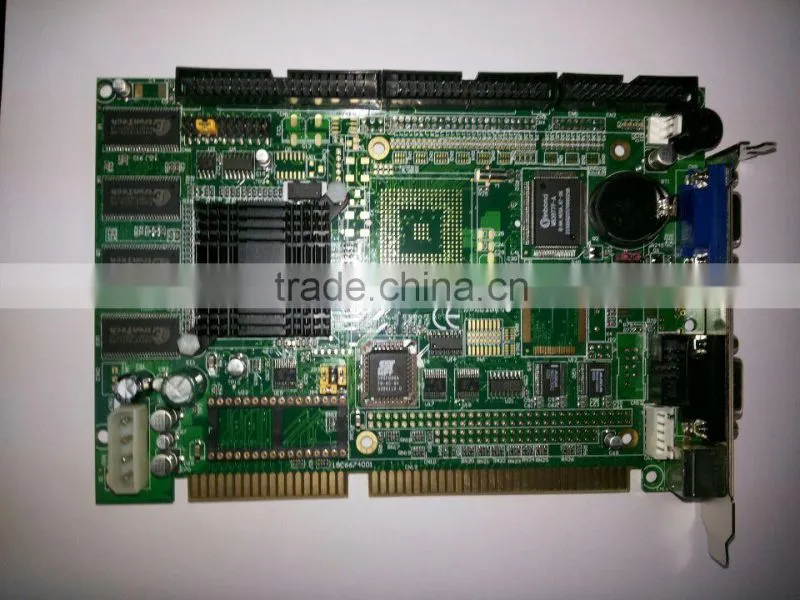

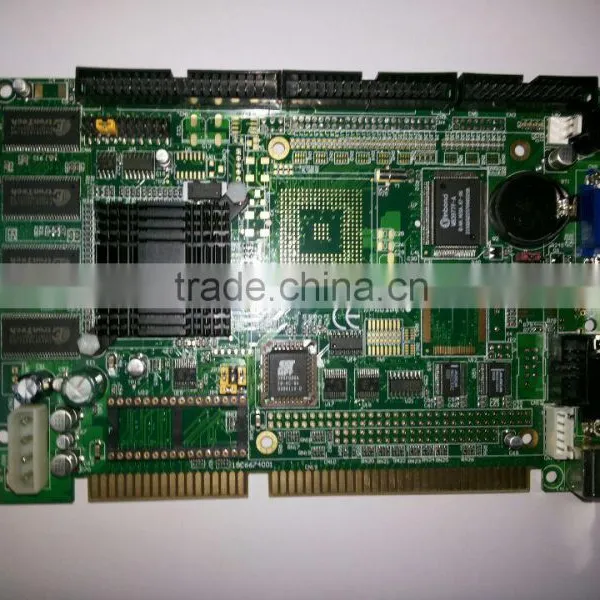

product pictures:
More Products:
Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.
Our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.
We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.
In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.
PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.
Packaging: Duoble package 424mm(L) 348mm(W) 80mm(H) ;570mm(L) 430mm(W) 173mm(H).
Delivery time: Within 1day after order and samples are confirmed.
