Intel 945GC+ICH7 Full-sized Mother Board, With 1VGA, 1*USB, 2*LAN, 1*PS2 KB/MS.

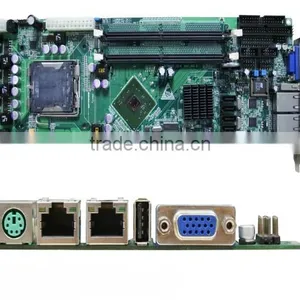

Intel 945GC+ICH7 Full-sized Mother Board, With 1VGA, 1*USB, 2*LAN, 1*PS2 KB/MS. thumbnail-1
Intel 945GC+ICH7 Full-sized Mother Board, With 1VGA, 1*USB, 2*LAN, 1*PS2 KB/MS. thumbnail-2

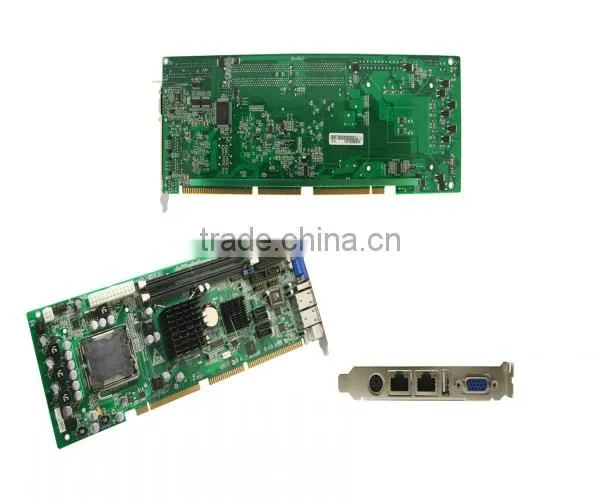

Intel 945GC+ICH7 Full-sized Mother Board, With 1VGA, 1*USB, 2*LAN, 1*PS2 KB/MS. photo-1
Intel 945GC+ICH7 Full-sized Mother Board, With 1VGA, 1*USB, 2*LAN, 1*PS2 KB/MS. photo-2
US$ 160 - 168 MOQ: 1 Carton
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
PONTRON
Contact Supplier Request Quote Chat Now
Shenzhen Pontron Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SheKou ChiWan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Industrial Motherboard
Brand Name PONTRON
Model Number PT-F945A
Place of Origin Guangdong, China
Product Description



Model No:PT-F945A

Main feature :

·Intel 945GC+ICH7 Chipset

.Support Intel LGA775 Core2 Duo,Pentium,Celeron Series CPU

·2 x 240Pin DDR2 Slot Support 533/667 Memory

·2 x 10/100/1000M Gigabit Ethernet LAN

.1 x RS232,1 x RS232/485,8 x USB,4 x SATA

Introduction

PT-F945A is full sized mother board supporting Intel LGA775 Core2 Duo,Pentium,Celeron Series CPU, with Intel 945GC+ICH7 Chipset, having 2 x 240Pin slot Supporting DDR2 533/667 Memory, Max up to 4GB, 4* SATA socket. With expansion socket of 32Bit, 16bit ISA. It has 1*VGA, 1*USB 2.0, 2*RJ45 10/100/1000M LAN, 1*PS2 KB/MS with internal 1*RS232, 1*RS232/485 header, 7* USB 2.0 header, 1*LPT header, 1*FDD. It can completely be compatible with PICMG1.0 backplane. PT-F945A can be widely used for automation, industrial acquisition data system, Intelligent transportation, Equipment application.

Specification:

CPU

Support Intel LGA775 Core2 Duo,Pentium,Celeron Series CPU

Chipset

Intel 945GC+ICH7 Chipset

Memory

2 x 240Pin slot,Support DDR2 533/667 Memory Up to 4GB

Storage

4 x SATA

Expansion Slots

Support 32Bit,16Bit ISA

Back Panel

I/O Port

1 x VGA

1 x USB

2 x RJ45 10/100/1000M LAN

1 x PS/2 KB&MS

Internal

 I/O Port

1 x RS232,1 x RS232/485 header

7 x USB2.0 header

1 x LPT header

1 x FDD

Watchdog Timer

255levels,1~255sec

Bus Standard

PICMG1.0 Full Size

Power supply

ATX/AT

Dimension

338 x 122mm

Operating Temperature

0°C ~ 60°C

Storage Temperature

-20°C ~ 80°C

Storage Humidity

5~90%@40°C(non-condensing)

Ordering information

PT-F945A

Intel 945GC+ICH7 full-sized mother board, with 1VGA, 1*USB, 1*LAN, 1*PS2 KB/MS.

PT- F945B

Intel 945GC+ICH7 full-sized mother board, with 1VGA, 1*USB, 2*LAN, 1*PS2 KB/MS.

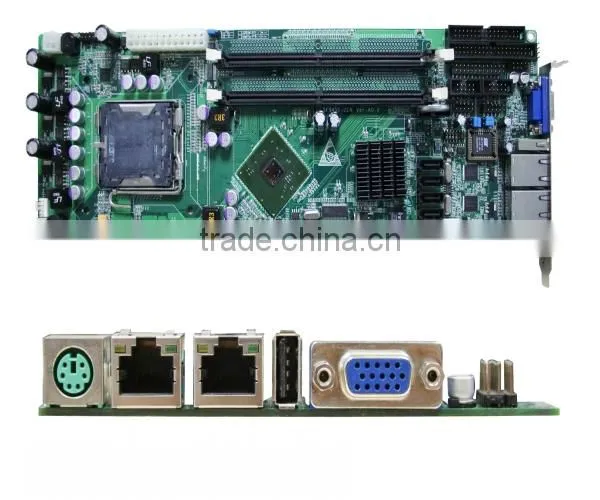

 product pictures:

Intel 945GC+ICH7 full-sized mother board, with 1VGA, 1*USB, 2*LAN, 1*PS2 KB/MS.Intel 945GC+ICH7 full-sized mother board, with 1VGA, 1*USB, 2*LAN, 1*PS2 KB/MS.



More Products:



Company Information

  Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.


  Our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.


  We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.


  In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.


  PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.



Our Services



Packaging & Shipping

Packaging: Duoble package 424mm(L) 348mm(W) 80mm(H) ;570mm(L) 430mm(W) 173mm(H).

Delivery time: Within 1day after order and samples are confirmed.
