Main features:
·19’’LCD display/Touchpad mouse/104 Keyboard with Digital Zone/E-Switch.
·Excellent video effects, the best resolution is up to 1280*1024 @ 75HZ.
·Support DC2B, and can detect the screen model without switching the computer.
·PS/2 keyboard and mouse are connected to control computer.
·Withdrawing installation design, the length can be adjusted to fit the rack space.
·Humanized design,can be installed and removed by only one person, which improves the efficiency of the administrator.
·To switch the host computer though the hotkey or OSD menu, which can manage1 computers.
·Password security protection, only authorized users can view and manage on-line computer.
·Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
·Support various operating system: Microsoft, Linux, Unix, etc.
Specification:
Model: |
KVM-19001U |
KVM-1901P |
KVM-1901M |
|
Computer Connections: |
Direct 1, Max: 1 |
|||
Cable port: |
D-SUB15 (LED, USB/PSII/ USB&PSII keyboard, mouse).OSD switch Support. |
|||
LEDs port |
1 |
|||
Switch mode: |
Hotkey, OSD menu |
|||
Switch Scan Time: |
1-255 second (OSD adjustable) |
|||
LCD |
Size |
19" TFT LED |
||
Resolution |
1280*1024 |
|||
lor |
16.7M |
|||
Brightness |
300nits |
|||
Contrast ratio |
700:1 |
|||
Pixel Pitch |
0.297 x 0.297 mm |
|||
Keyboard/Mouse |
104 Mechanical mute Keyboard Touchpad |
|||
|
|
|||
Power Input |
AC100-240V 47-63Hz, 35W |
|||
Cabinet Material |
high-strength and Anti-corrosive steel plate |
|||
Color |
Insulated black paint (optional) |
|||
Dimension ( L x W x H ) |
586mm*480mm*44mm |
|||
Gross Weight |
20KG |
|||
For Cabinet |
800-1040mm |
|||
Storage Temp |
-30℃~70℃ |
|||
Operating Temp |
-10℃~60℃ |
|||
|
|
|||
Humidity: |
0%-80%RH |
|||
Certificate: |
CCC, FCC, CE |
|||
Ordering information:
KVM-1901U |
1U Rack mount 19" TFT LED W/ 1 port KVM switch, W/ 12V power supply, W/ USB cable. |
KVM-1901P |
1U Rack mount 19" TFT LED W/ 1 port KVM switch, W/ 12V power supply, W/ PSII cable |
KVM-1901M |
1U Rack mount 19" TFT LED W/ 1 port KVM switch, W/ 12V power supply, W/ PSII&USB cable |

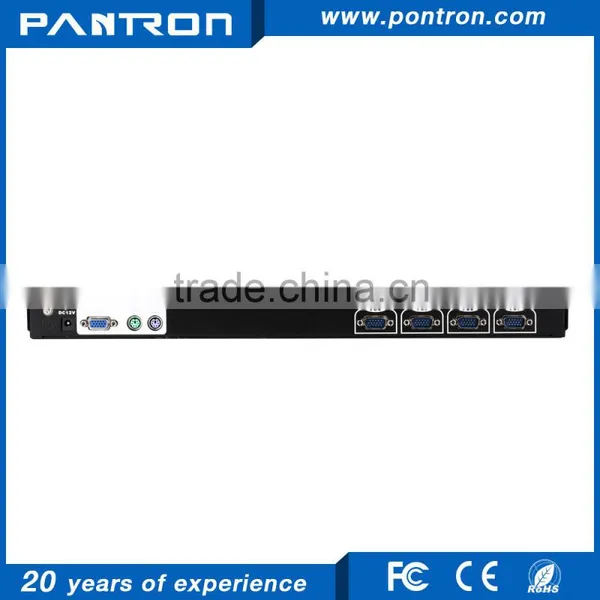

product picture:
More Products:
Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.
Our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.
We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.
In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.
PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.
Packaging: Duoble package 424mm(L) 348mm(W) 80mm(H) ;570mm(L) 430mm(W) 173mm(H).
Delivery time: Within 1day after order and samples are confirmed.
