Main feature :
l 19’’ rack mount 6U height Industrial Workstations
l 12.1" high brightness LCD
l Support Intel 845, Intel945, Intel G41 full-sized mother board
l 6114P4 backplane
l 2*2.5’’ SATA HDD space
l 1*5.25’’ CD-ROM space
Introduction:
IPC-685 is a workstation integrated with the LCD display, keyboard, sliding touch mouse and industrial CPU board.
· It is a cost-effective integrated solution and can be installed in 19 "racks including 12.1" high brightness LCD,
·multi-slot passive backplane ,with drawing 88keys keyboard, industrial Switching Power Supply and Touchpad whose structures are compact and all convenient to install.
·It is suitable for the users of traditional IPC and new automation products and easy to maintain and upgrade. It can be used for Industrial Automation/Server/transportation/ Equipment/Banking&commerce etc.
Specification:
System | ||
Mother board |
Supports full-sizd Intel 845/Intel 945/Intel G41 |
|
CPU |
Supports Intel LGA775 Core2 Duo,Pentium,Celeron Series, Core2 Quad,Celeron Series CPU. |
|
Backplane |
6114P4 backplane, with 4*PCI slot,10*ISA,2*PICMG1.0 slot, With 10 expansion slots |
|
CD-ROM |
1* 5.25" CD-ROM position |
|
HDD space |
2*2.5''HDD bay |
|
Drawing keyboard |
88 keys |
|
Touch pad |
Support |
|
Operating System |
Support WIN7, Windows XP, VISTA, etc. |
|
Structure | ||
Height |
19″6U Rackmount workstations |
|
Front panel |
10mm thick high-strength aluminum alloy front Panel. |
|
Color |
White/Black (Optional) |
|
Dimension |
483mm*460mm*266mm |
|
I/O |
1*VGA |
|
2*RJ45 | ||
1*PS2/KB&Mice | ||
2*USB 2.0(Front), 2*USB 2.0 (back), Max up to 8*USB 2.0 | ||
1*LPT | ||
1*Line out/in (Optional) | ||
1*MIC | ||
2*COM | ||
Power supply | ||
Power rate |
300W-600W power supply (Optional) |
|
Power input |
100~240VAC@47-63Hz |
|
Output Voltage/Current |
3.3V output:28A B32 |
|
5V output:30A | ||
12V output:20A | ||
MTBF |
120,000 hours |
|
Safety |
UL/CSA/TUV/CE/3C |
|
Type |
ATX/AT(optional) |
|
LCD Panel |
Size |
12.1'' FTF LCD screen |
Aspect Ratio |
4:3 |
|
Contract ratio |
400:1 |
|
Brightness |
250cd/m2 |
|
Resolution |
1024x768 |
|
Pitch |
0.297 x 0.297 mm |
|
Color |
16.7M |
|
Backlight |
LED backlight |
|
Life |
10,000hrs |
|
Touch screen | ||
Touch type |
5 wires resistive touch panel (Optional) |
|
Resolution |
continuous |
|
Resistance |
300 |
|
Interface |
USB/RS-232 (Optional) |
|
Operating System |
Supports WIN7, VISTA, Windows NT, UNIX, LINUX ,NOVELL, DOS etc. |
|
Environment | ||
Operating Temp |
-10 ℃~50 ℃ |
|
Storage Temp |
-20℃~60℃ |
|
Operating Humidity |
5%-95% Non-condensing |
|
Vibration |
5-17Hz,0.1-inch double amplitude displacement; 17-640Hz ,1.56 peak-peak acceleration |
|
Impact |
10G peak-peak acceleration, 15MS duration in each direction of the X, Y, Z axis |
|
EMC |
CE/FCC |
|
Ordering Information
IPC-685 |
12.1" Industrial workstation, w/6U height chassis, w//300WATX power supply, W/6114P4 backplane |
IPC-685T |
12.1" Industrial workstation, w/6U height chassis, w//300WATX power supply, W/ 6114P4 backplane, w/5 wires touch screen |

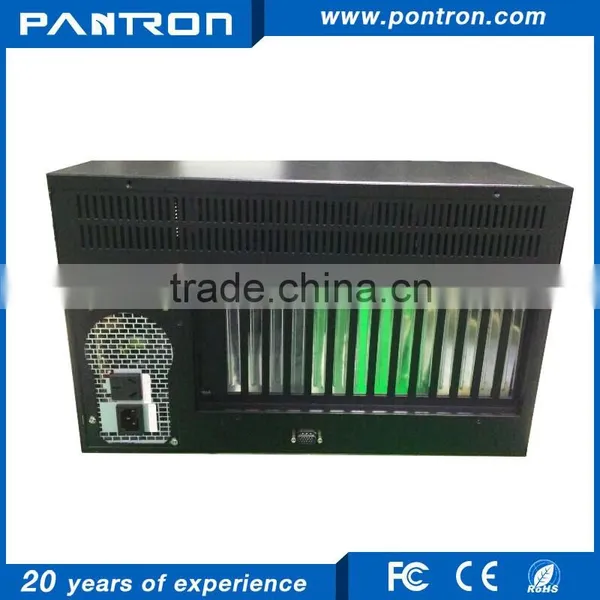

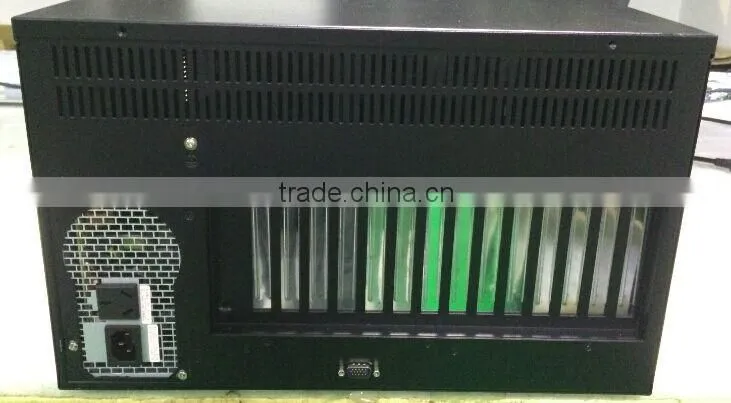

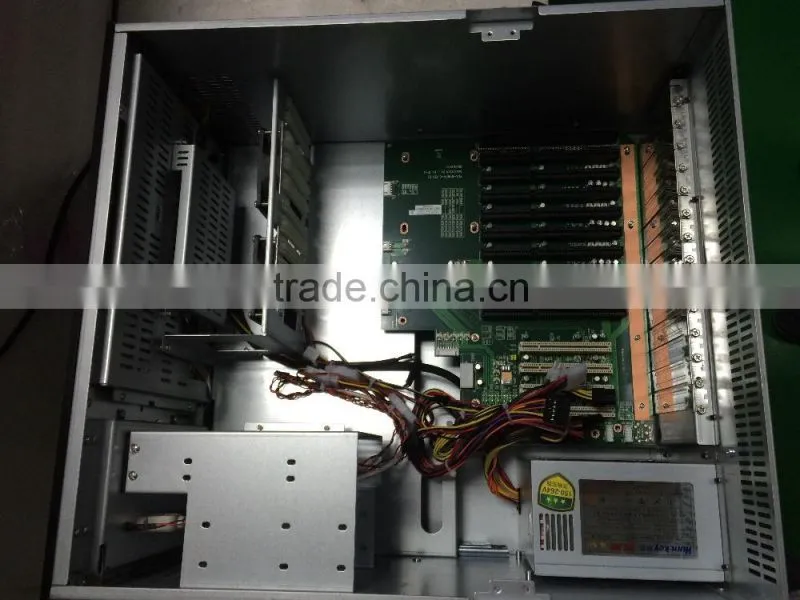

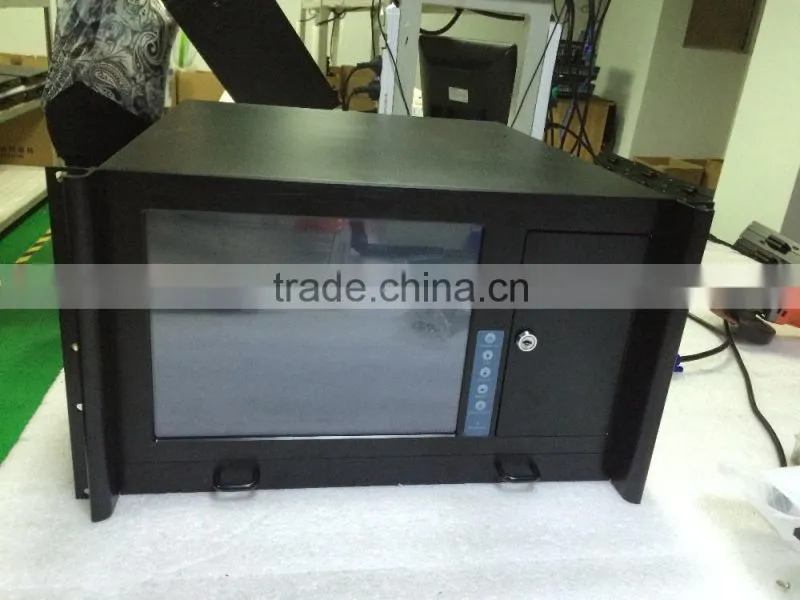

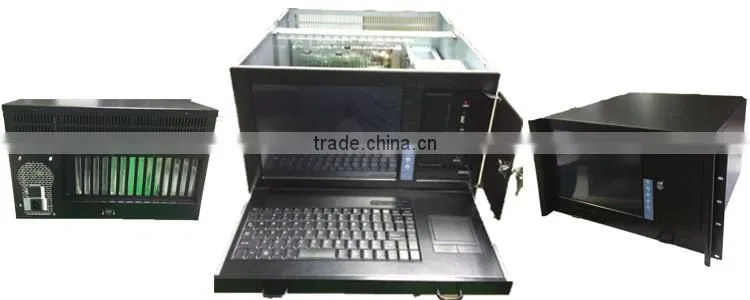

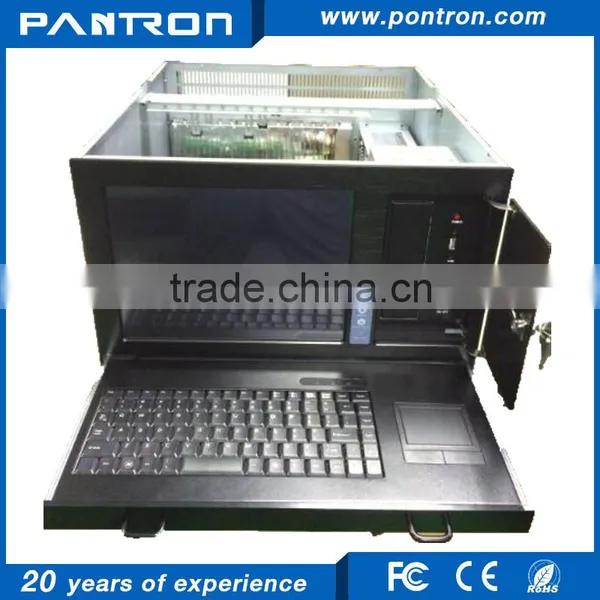

product picture:
More Products:
Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.
Our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.
We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.
In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.
PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.
Packaging: Duoble package 424mm(L) 348mm(W) 80mm(H) ;570mm(L) 430mm(W) 173mm(H).
Delivery time: Within 1day after order and samples are confirmed.
