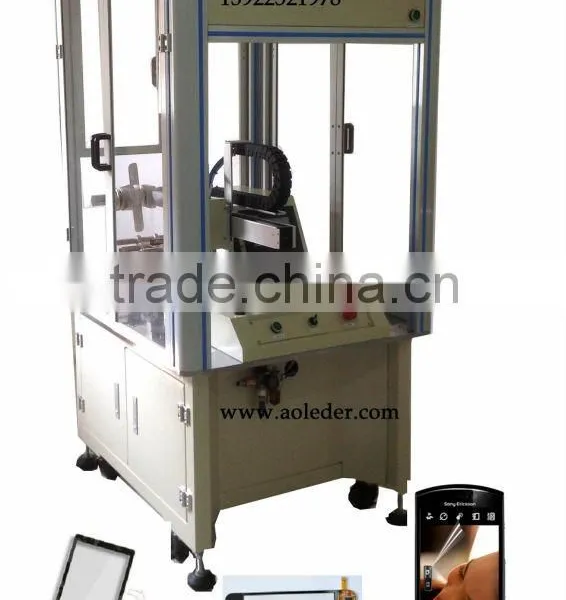

Help CenterAutomatic High Precision Mobile Phone Film Covering Equipment
Related Products
-
High Precision Automatic Touch Lens Screen Protector Fixed MachineUS$ 1 - 50,000MOQ: 1 Set -
Mobile Phone Explosion Proof Film Sticking MachineUS$ 1 - 50,000MOQ: 1 Set
-
Cell Phones Touch Glass Anti Scattering Film Attach DeviceUS$ 1 - 50,000MOQ: 1 Set
-
Screen Guard MachineUS$ 1 - 2MOQ: 1 Set
-
Mobile Phone Glass Lens Anti Scattering Film Coating DeviceUS$ 1 - 48,652MOQ: 1 Set
Specifications
1,Cover protective film and riot film on the screen of mobile phones,GPS etc.2,High precision, no bubble,distortion,scratch
Applications:
The machine is mainly used to automatically stick the protective film,explosion-proof film, polarizing film with speediness and hign precision on the panel of mobile phone, GPS, tablet PC, MP4, digital cameras products etc.
Key Advantages:
1,The machine can ensure that sticking film without bubble, distortion and scratch, which may be caused by manual operation.
2,Have the novel design, beautiful shape and reasonable structure.
3.Have convenient operation,hign precision,high efficiency.
4.Select advanced imported accessories and equipments ,reliable quality, stable performance.
Specifications:
| 1,The efficiency of sticking :10~20pcs/min 2,Sticking accuracy: ± 0.05mm 3,Maximum stick size: 2.5~5.0 inches 4,Correction methods: XY correction 5,Stick results: smooth,without folds,no bubble 6,Work cleanliness:class 100 FFU (optional) 7,Working voltage: AC220V/50Hz 8,Gas supply pressure: ≥ 0.4Mpa 9,Machine dimension:950(L)*850(W)*1720(H)mm 10,Weight: about 450KG |
Main advantages:
1, An automatic sticking film machine equipped with a worker for placing and recovering the panel, it can replace about five workers in production, greatly enhance the efficiency.
2,The automatic sticking film machine covers an area of less than 1 square meters, while it benefits to the manufacturers's clean room management and maintenance.
3, The automatic sticking film machines mechanization operation, to ensure that the sticking film process is stable, quality assurance and stability, to avoid the manual sticking film quality is not stable.
4, The automatic sticking film machine adopts imported advanced important precision parts, stable operation, no vibration, to ensure that the automatic sticking film with high location accuracy, a whole day can maintain high stability operation.
5, The automatic sticking machine adopts imported PLC control, touch screen human-machine interface, parameter setting through simple and intuitive, easy operation.
6, The automatic sticking machine is once purchased, correct operation and proper maintenance can be used more than five years.
7, The automatic sticking film machine adopts the high requirements of Japan, Germany, Taiwan and other well-known brands of spare parts production and assembly, based on the film factory process saves the manpower cost, management cost, building cost, and improve production efficiency, greatly improve the quality of the product, and enhance customer market competitiveness.
