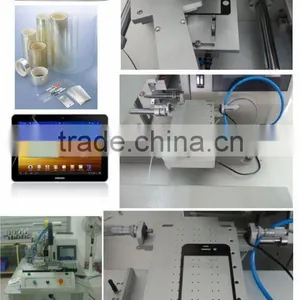

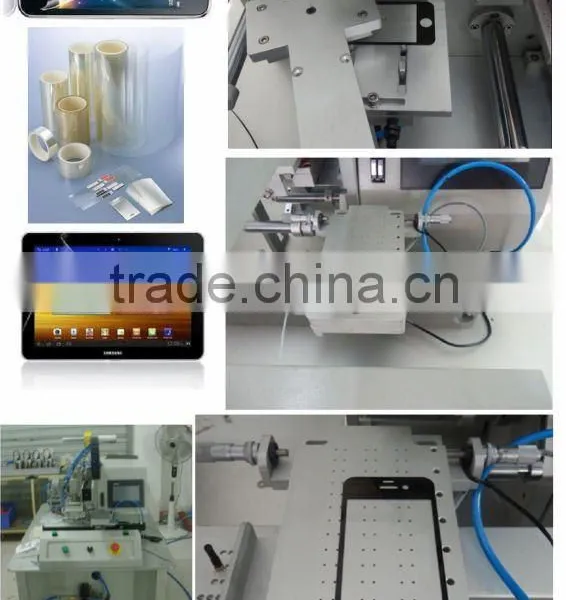

Help CenterAutomatic Single Sheet and Roll Film Touch Panel Sensor Glass Protection Film Lamination Machine
Related Products
-
Automatic Multi-function Touch Screen Panel Cover Glass Protective Film Laminator MachineUS$ 1 - 50,000MOQ: 1 Set -
Pre-scoring V-cut Pcb Cutting Factory Machine With Low StressNegotiableMOQ: 1 Set
-
Touch Screen Sticking Film MachineUS$ 1 - 33,869MOQ: 1 Set
-
Touch Screen Sticking Film MachineUS$ 1 - 33,869MOQ: 1 Set
-
Touch Screen Sticking Film MachineUS$ 1 - 33,869MOQ: 1 Set
Specifications
single sheet and roll film laminator machine1,smooth,no any bubble,no folds,no scratch
2,high precision,high efficiency
Applications:
This machine is one of the automation equipment series in company, with high efficiency and automation degree, convenient operation, automatic film feeding, automatic tear film, automatic laminating continuous composite motion mode.
The multifunctional laminating machine is used mainly for laminating the single sheet or film roll on the screen/panel/grass of the digital products.The digital products include that mobile phones,PDA,GPS,digital photo frame,digital camera, LCD, touch screen, OELD,MP4 ect. The sheet and film include the protective film,explosion-proof film,polarizer film,functional thin film,double-sided tape,insulating film, shading treatment film etc.
Laminated film product surface smooth, no bubbles, no wrinkles, completely solve the manual sticking film low efficiency without high quality problem, make your business to reduce costs and improve efficiency.
Characteristics:
1, can laminate the single sheet or roll film by two ways.
2, the creative roller position control eliminates the linear bubble.
3, according to the film type diaphragm attached to the demand for change.
4, the main components imported aluminum alloy, through strict precision machining and grinding and surface treatment, make the machine keep stable for a long time work, equipment parts precision without the stress deformation effects.
5, machine top mounting FFU, strictly meet the clean environment.
6, servo motor driven feed, imported brands fiber sensor.
7, precision mechanical hand to achieve lamination action.
8, module using right-angle edge positioning vacuum adsorption fixed position, avoid scratching, simple operation.
9, imported PLC control, interface using color screen human-machine interface, can set the parameters and store multiple groups of different products.
10, photoelectric inductive XY achieve two-axis calibration function, and equip with the micrometer can make the XY orientation precision slight adjust , thus ensure high fitting precision.
11, use the professional structure to achieve no bubbles film attachment, product surface with smooth, no bubbles, no wrinkles.
12, use LED lighting, energy-saving lamp, save cost.
13, the machine structure humanity, safe operation, beautiful shape.
Specifications and parameters:
1,Tracheal diameter:Diameter 12mm
2,Working pressure: ≥ 0.4Mpa
3,Working voltage:220V 50HZ
4,Feed rate: adjustable
5,Sticking accuracy:±0.1mm
6,Sticking size:2-5 inches
7,Correction mode: X, Y correction
8,Work cleanliness: class 100 FFU high efficiency filtering device(optional)
9,incoming film type: single sheet, roll film
10,Sticking efficiency:12~16pcs/min
11,Machine dimension: 1250(L)*450(W)*1980(H)mm
