Product Details
Place of Origin: | Guangdong, China | Brand Name: | ChuangWei ***PCB separator | Model Number: | CWVC-1SJ ***PCB separator |
Product Description

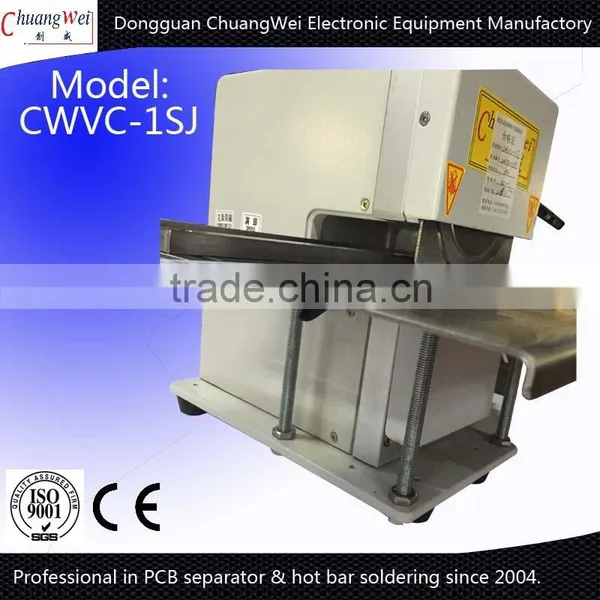

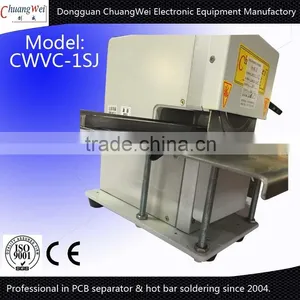

Chuangwei motor-driven V-CUT PCB separator
1.Max. PCB separation length:unlimited
2.The price is very economical
3.Safety use and easy operation
4.Blade can be re-grinded to use
Chuangwei motor-driven V-CUT PCB separator specifications:
Model | CWVC-1SJ |
Max. PCB separation length | unlimited |
PCB separation thickness | 1.0-3.5mm |
Blade amount | upper and lower 2 circular blades |
PCB separation mode | lower circular blade with motor-driven |
PCB separation speed | 0~400mm/s |
Voltage and Power | 110/220 V 60W |
PCB separator Size | 420X 280 X 400mm |
PCB separator Weight | 25Kg |
workbench | optional(can make different length according to your board) |
Staff allocated | one person hold PCB and feed between the circular blades for separation,fix position on pre-scored V groove |
Chuangwei motor-driven V-CUT PCB separator features:
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
*** Chuangwei motor-driven V-CUT PCB separator motion video please see below: ***
/watch?v=ssiEW4hqQxo
/edit?ns=1&video_id=_KHLRBnb7rs
***Chuangwei PCB separator machine***
***From 2004 we started to development,manufacture,sale,service for PCB separator machine, until now,we have produced different kind PCB separator machine type for manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB separator machine base your actual requires. (any shape,length,thickness of electronic and digital products PCB, FR4 PCB , FR6 PCB ,aluminium PCB, copper PCB, LED strip,LED tubes PCB,solar energy PCB and soft material FPC etc.)
***Any interest please contact us freely.
***Chuangwei PCB separator machine***
seaworthy plywood case,safe, no need to fumigated (free):
Products List:
PCB Separator CE Certificate:
***Any interest please contact us freely.
***Chuangwei PCB separator machine***
*** Chuangwei motor-driven V-CUT PCB separator motion video please see below: ***
/watch?v=ssiEW4hqQxo
/edit?ns=1&video_id=_KHLRBnb7rs
Try us,you will find it is a good choice buying our PCB separator machine finally.
