Home > Products > Mobile&Accessories Industry > V-CUT pcb depanelizer Applicable PCB: FR4 and aluminum board*CWVC-1SJ
V-CUT pcb depanelizer Applicable PCB: FR4 and aluminum board*CWVC-1SJ
- 500 Set / Sets per Month
- SHENZHEN/HONGKONG
- T/T
- automatic toroidal winding machine Replace JOVIL toroidal winder by (SS900B6 series final coil OD 10~81mm)
- Replace RUFF toroidal winder by (SS900B6 series final coil OD 10~80mm)toroid winding machine
- (SS900B6 series) automatic toroidal winding machine
- Replace VC toroidal winder by (SS900B6 series) automatic toroid winding machine
- SS966T 6 spindles automatic fine wire twisting transformer coil winding machine
- SS810 Automatic high torsion electric power transformer coil winding machine
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | ChuangWei PCB depanelizer |
Model Number: | CWVC-1SJ PCB depanelizer | Voltage: | 110V/220V | Power(W): | 60W |
Weight: | 25KG | Dimension(L*W*H): | 420X 280 X 400mm | Certification: | CE |
Warranty: | 1 year | After-sales Service Provided: | Overseas service center available |
Product Description
The most professional PCB depanelizer machine manufacturers in China.
Chuangwei motor-driven V-CUT PCB depanelizer machine
1.Max. PCB depaneling length:unlimited
2.The price is very economical
3.Safety use and easy operation
4.Blade can be re-grinded to use
Chuangwei motor-driven V-CUT PCB depanelizer machine specifications:

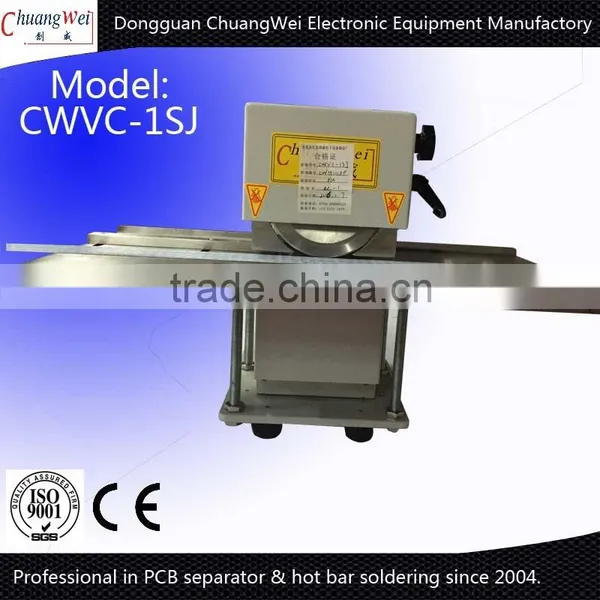

Model | CWVC-1SJ |
Max. PCB depaneling length | unlimited |
PCB depaneling thickness | 1.0-3.5mm |
Blade amount | up and down 2 circular blades |
PCB depaneling mode | down circular blade with motor-driven |
PCB depaneling speed | 0~400mm/s |
Voltage and Power | 110/220V 60W |
PCB depanelizer size | 420X 280 X 400mm |
PCB depanelizer weight | 25Kg |
workbench | optional(can make different length according to your board) |
`
Chuangwei motor-driven V-CUT PCB depanelizer machine features :
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
**Chuangwei motor-driven V-CUT PCB depanelizer machine video please see below:**
/watch?v=ssiEW4hqQxo
/edit?ns=1&video_id=_KHLRBnb7rs
/v_show/id_XNTkwMTM0NDc2.html
***Chuangwei PCB depanelizer machine***
***From 2004 we started to development,manufacture,sale,service for PCB depanelizer machine, until now,we have produced different kind PCB depanelizer machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB depanelizer machine base your actual requires.
***PCB depanelizer machine mainly applies to depanel various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
***Chuangwei PCB depanelizer machine***
If you are interested in any of our products please feel free to contact us.
We are looking forward to hearing from you.
seaworthy plywood case,safe, no need to fumigated(PCB depanelizer machine CWVC-1S) (free):
ChuangWei more related PCB depanelizer machine:
ChuangWei PCB depanelizer machine CE Certificate:
*Any interest please contact us freely.
***Chuangwei PCB depanelizer machine***
The most professional PCB depanelizer machine manufacturers in China.
