led strip making equipment production line



led strip making equipment Semiautomatic solder paste printing machine

PCB sizeMax:L400*W240mm
Printing areaL500*320mm
Location modeDatum needle
Power gas4—6kg/cm2
Frame sizeL(550-650mm)*W(370*470)
Platen trimmingFront/Rear±mm,   Left/Right±10mm
Printing precision±0.2mm
Repeatability accuracy±0.2mm
Powre sourceAC220V  50HZ/60HZ
PCB thickness0.2-2.0mm
Net weight230kgs
DimensionL800*W700*H1700mm

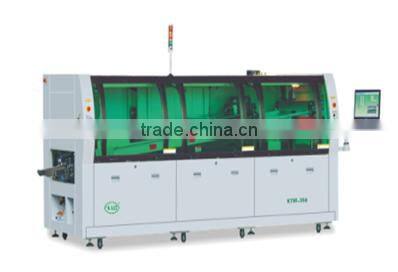

led strip making equipment 8 zones reflow soldering machine:

independent heating area8
operation systemWindows7
control systemComputer  +PLC
Overheat/lower heat alarmsound and light
Temperature controlledPID+SSR
saftyUPS backup power
Temperature curve test wire4 pcs
PCB Temp. deviation±2°C(250X200mm pcb
Temp. precision±1°C
PCB width50~400 mm
Rail to the ground900±20 mm
Warming up timeabout 25±5 min
Transfer rate300~2000 mm/min
Weight2095 kg
Dimension5310x1353x1490(mm)









led strip making equipment wave soldering machine:elding machine circuit board/inverter welding



PCB board width

Max.50~350mm

PCB conveyor height

750±50mm

PCB conveyor speed

0~1800mm/min

PCB conveyor angle

3~7 degree

PCB conveyor direction

L→R/R→L(option)

PCB component height

Max.100mm

Waves quantity

2

Pre-heating zone

1200mm

Pre-heating zone quantity

2

Pre-heating capacity

8kw

Pre-heating temperature

Normal temperature~250℃

Heating method

IR

Cooling zone quantity

1

Cooling method

Normal wind

Soldering type

Lead free/standard

Wave solder pot power

5kw

Solder volume

Approx.250kg

Wave solder pot temperature

Normal temperature~300℃,precision±1-2℃

Temperature control

P.I.D+SSR

Control fashion

PLD + computer

Flux capacity

Max5.2L

Flux flow

10~100ml/min

Spray fashion

SMC Cylinder and nozzle

Power

380V

Power for heating up

max.15kw

Standard running power

Approx.7kw

Air

4~7KG/CM2

Frame size

L2600×W1380×H1650mm

Machine dimension

L3300×W1380×H1650mm

Weight

Approx.1000kg



led strip making equipment PCB Loader & PCB  unloader:

Dimension: L1350×W710×H1200mm(loader)  L1980×W710×H1200mm(unloader)

Conveyor Height: 900mm±20mm(adjustable)

Net weight: 140kg

Air consumption: 100L/h

Air pressure: 4-6bar

Power source: AC220V, 50/60Hz

Power: 150W

Workbin change over time: 45 seconds

Lifting step: 10mm,20mm, 30mm, 40mm, 50mm (Optional)

Push rod dimension: 20mm

Control: Mitsubishi PLC

PCB positioning: AC braking motor+photoelectric sensor

Loading rack dimension: L355×W320×H565mm

PCB dimension: (50-250)*(80-330)mm

Edge of fixing: Front edge

Conveying direction: L-R / R-L (Optional)

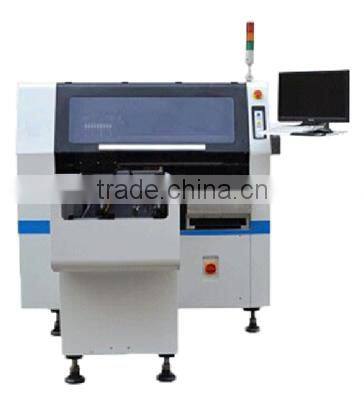

led strip making equipment Pick and Place Machine



 Why us:

1.Engineers available to service machinery oversea

2.Mature technique & forerunner to process makes high quality machinery

3.Effective customer service

4.One year warranty for the machines except accessories
