LED light tube PCB board production line
PCB board production line Semiautomatic solder paste printing machine
| PCB size | Max:L400*W240mm |
| Printing area | L500*320mm |
| Location mode | Datum needle |
| Power gas | 4—6kg/cm2 |
| Frame size | L(550-650mm)*W(370*470) |
| Platen trimming | Front/Rear±mm, Left/Right±10mm |
| Printing precision | ±0.2mm |
| Repeatability accuracy | ±0.2mm |
| Powre source | AC220V 50HZ/60HZ |
| PCB thickness | 0.2-2.0mm |
| Net weight | 230kgs |
| Dimension | L800*W700*H1700mm |
PCB board production line 8 zones reflow soldering machine:
| independent heating area | 8 |
| operation system | Windows7 |
| control system | Computer +PLC |
| Overheat/lower heat alarm | sound and light |
| Temperature controlled | PID+SSR |
| safty | UPS backup power |
| Temperature curve test wire | 4 pcs |
| PCB Temp. deviation | ±2°C(250X200mm pcb |
| Temp. precision | ±1°C |
| PCB width | 50~400 mm |
| Rail to the ground | 900±20 mm |
| Warming up time | about 25±5 min |
| Transfer rate | 300~2000 mm/min |
| Weight | 2095 kg |
| Dimension | 5310x1353x1490(mm) |

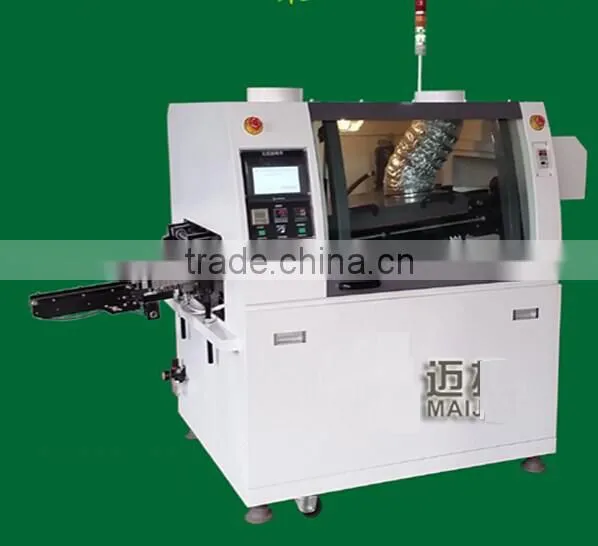

PCB board production line wave soldering machine:elding machine circuit board/inverter welding
PCB board width |
Max.50~350mm |
PCB conveyor height |
750±50mm |
PCB conveyor speed |
0~1800mm/min |
PCB conveyor angle |
3~7 degree |
PCB conveyor direction |
L→R/R→L(option) |
PCB component height |
Max.100mm |
Waves quantity |
2 |
Pre-heating zone |
1200mm |
Pre-heating zone quantity |
2 |
Pre-heating capacity |
8kw |
Pre-heating temperature |
Normal temperature~250℃ |
Heating method |
IR |
Cooling zone quantity |
1 |
Cooling method |
Normal wind |
Soldering type |
Lead free/standard |
Wave solder pot power |
5kw |
Solder volume |
Approx.250kg |
Wave solder pot temperature |
Normal temperature~300℃,precision±1-2℃ |
Temperature control |
P.I.D+SSR |
Control fashion |
PLD + computer |
Flux capacity |
Max5.2L |
Flux flow |
10~100ml/min |
Spray fashion |
SMC Cylinder and nozzle |
Power |
380V |
Power for heating up |
max.15kw |
Standard running power |
Approx.7kw |
Air |
4~7KG/CM2 |
Frame size |
L2600×W1380×H1650mm |
Machine dimension |
L3300×W1380×H1650mm |
Weight |
Approx.1000kg |

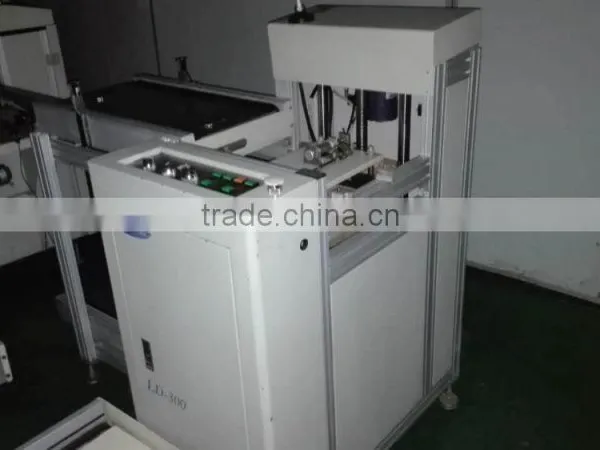

PCB board production line PCB Loader & PCB unloader:
PCB board production line Pick and Place Machine
OUR PARTNERS:welding machine circuit board/inverter welding machine circuit board
