Aluminium pcb separator machine
Aluminium pcb separator machine sepecification:
Max cutting length | No limit |
Min cutting length | 100mm |
Cutting width | 8-225mm |
Blade quantity | max 9 sets |
Min PCB width | 8mm |
PCB thickness | 0.8-3.5mm |
Feeding speed | 0-500mm/s |
Blade material(auto-lock function) | Imported high precision steel |
Voltage | 110-220V |
Dimension | 1155*405*330mm |
Packaging weight | 70kgs |
Aluminium pcb separator machine features:
1. 9 pairs of blades is available
2. Configuration of the blades is adjusted toindividual PCB
3. Sensors are used to monitor the separating process
4. The PCBs are placed either by hand or they feed automatically
by a loading station
5. Easy operating
6. Could be adjusted according to PCB sizes and customers'
requirements
7. Could be customized made as customers' request

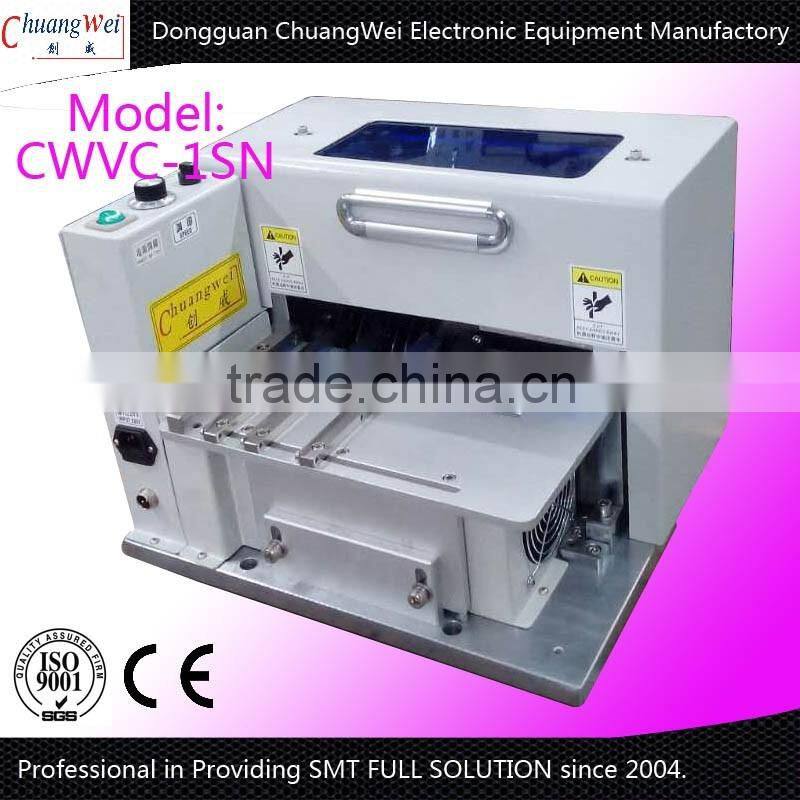

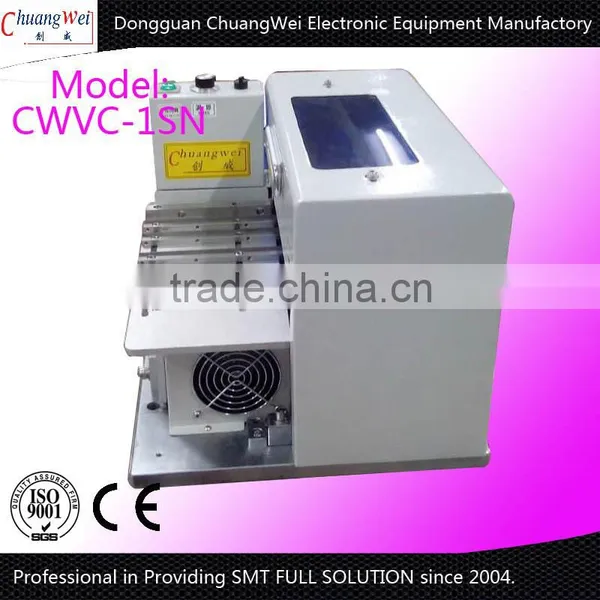

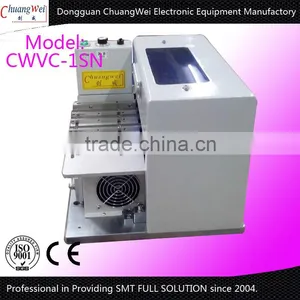

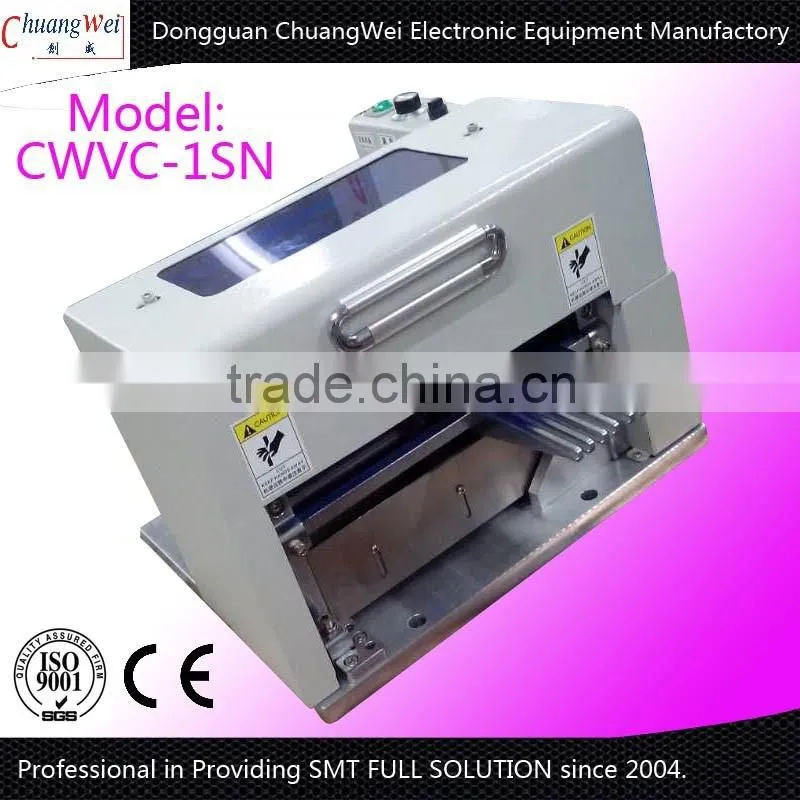

Aluminium pcb separator machine photos:
Aluminium pcb separator machine CE certificate:
Aluminium pcb separator machine customer list:
