Help Center16-50 T/h Stone Production Equipment for Mini Stone Crushing Plant
Related Products
-
90 T/h Mini Stone Crusher Machine Price for Cement PlantUS$ 10,000 - 100,000MOQ: 1 Set -
50 T/h Stone Crusher Machine Price in India for Mini Cement Production LineUS$ 10,000 - 100,000MOQ: 1 Set
-
2014 Hot Sale in India Capacity 15 T/h Mini Stone Crusher Machine PriceUS$ 26,000 - 100,000MOQ: 1 Set
-
Mini Stone Crusher Price for Stone CrushingUS$ 26,000 - 100,000MOQ: 1 Set
-
Capacity 50-90 T/h Stone Hammer Crusher for Bluestone Production LineUS$ 26,000 - 100,000MOQ: 1 Set
Specifications
stone production equipment1.big feed head,high stave cavity
2.blow bar is anti-impact,anti-attrition,the impulse is big
1.Application of stone production equipment :
- The impact crusher is used for crushing various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc.
- It is used to crush coarse, medium and fine stones whose compressive strength is no more than 300MPa and Moh's hardness is lower than the 8th degree, such as limestone, basalt, granite, concrete, slag, cement block, etc.
2.Descriptions of stone production equipment :
- It is famous for its superior performance, steadily working and longer working life. Subject to advance technology, results and customers’ feedbacks and abundant experience in the crushing industry, we design and produce PF series impact crushers with high efficiency and good performance.

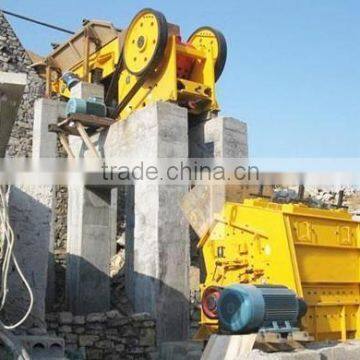

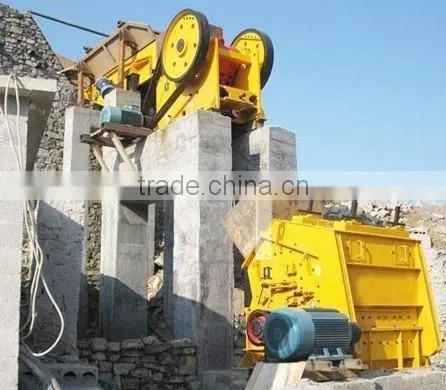

- It is always matched with jaw crusher or hammer crusher as the secondary procedure.
3.Advantages of stone production equipment :
- The impact crusher with Big feed head,high stave cavity,high adaptation material degree of hardness,big block,fewproduct stone powder.
- The impact board and the board hammergap can be facilitatly adjusted, the controlment material granularity isactive, the grain shape is good. small stone impact crusher

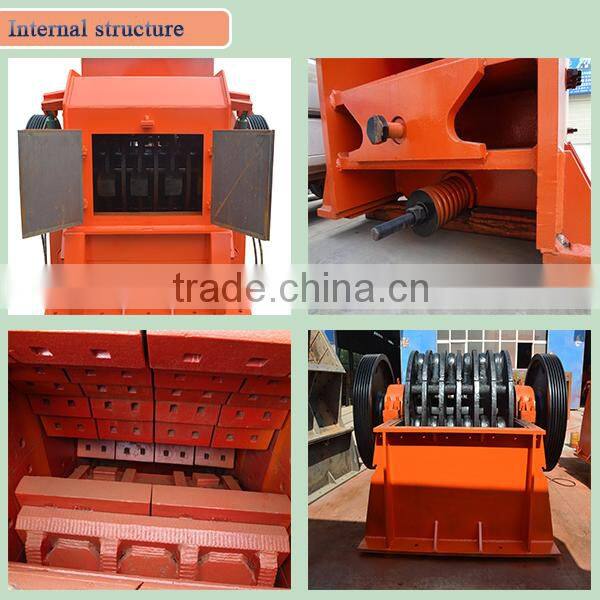

- The structure of the impact crusher iscompact, the machine rigidity is strong, the rotor has the big rotationinertia.
- Highchrome hammer is anti-impact, anti-attrition,the impulse is big.
- No keying, the overhaul is convenient,the economy is reliable.
- Entire stave funtion ,highproductivity,slightly parts wears and tears,high combined earings.
4.Parameters of stone production equipment
| Types |
Rotor diameters*length |
Feeding size (mm) |
Raw material size(mm)
|
Capacity (t/h) |
Motor power (kw) |
Theretical weight(t) |
Dimensions L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| PF-1007 | 1000×700 | 400×730 | 250 | 15-60 | 37-55 | 9.5 | 2330×1660×2300 |
| PF-1010 | 1000×1050 | 400×1080 | 300 | 50-90 | 55-75 | 14 | 2370×1700×2390 |
| PF-1210 | 1250×1050 | 400×1080 | 300 | 60-120 | 95-110 | 17 | 2580×2080×2750 |
| PF-1214 | 1250×1400 | 400×1430 | 300 | 130-180 | 132-170 | 22 | 2690×2360×2750 |
| PF-1315 | 1325×1500 | 860×1520 | 350 | 160-250 | 180-260 | 26 | 2890×2680×3090 |
| PF-1320 | 1320×2000 | 860×2030 | 500 | 160-350 | 300-375 | 30 | 2870×3350×3090 |
5.Packaging & Delivery of stone production equipment
Packaging Detail: standard export
Delivery Detail: 20 days small stone impact crusher
1-Introduction
1) Xinxiang Dingli Mine Equipment CO., LTD is the leading manufacturer of hammer crusher,jaw crusher,impact crusher,
vibrating screen,vibrating feeder, sand making and washing machine, belt conveyor, relevant drilling rig and etc.
2) Our company has passed ISO quality certification,CE, quality system certificate and are also AAA grade reputable enterprise,
Top 10 Famous Brand of Chinese Crushing Machine, Sandstone Association Mmbership Unit, and Enterprise of Taking the Contract First and Laying Stress on the Prestige etc.
2-Development
Xinxiang city which have about 200 employees for mining equipme Our company has independently developed a range of products, not only represent the advanced international level in the same industry, and gain praise from customers at home and abroad with the advantages of high-quality and low power consumption.
The range of products includes rock crushing and screening machinery, drilling rigs.Our customers can be found in virtually every corner of the earth, and we realize our success comes directly from helping our customers be successful.

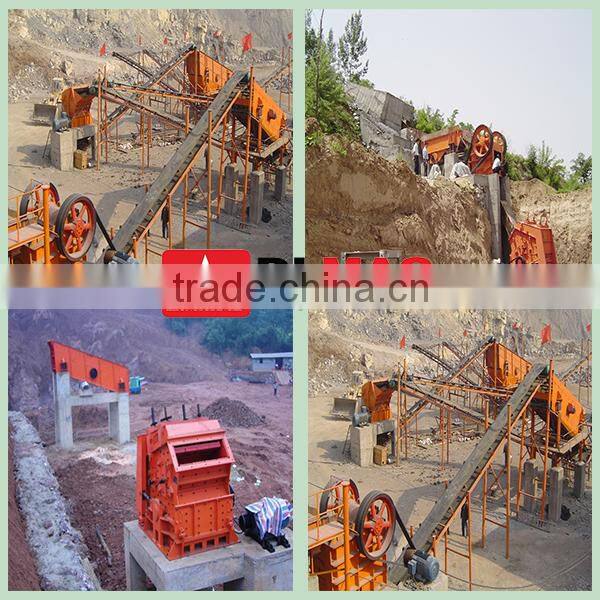

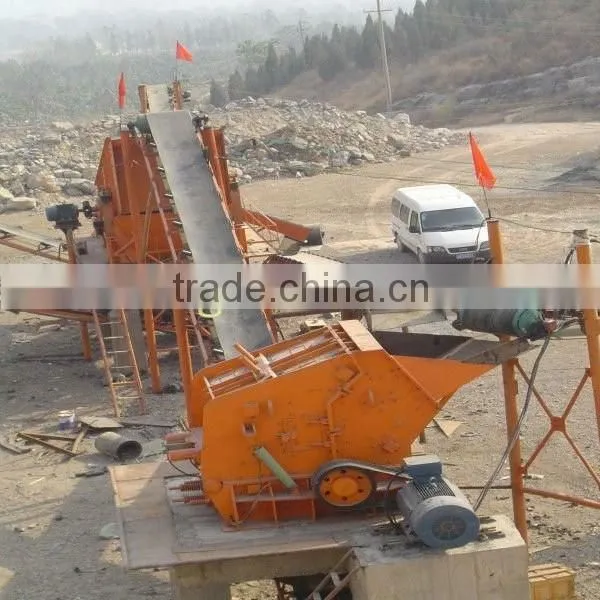

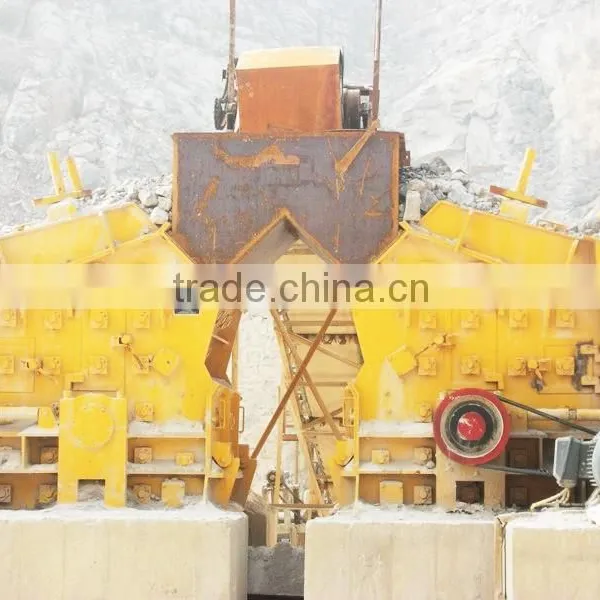

1.Xinxiang dingli stone production line is based on field survey site conditions and actual customer requirements, the combination of various types of equipment, designed to provide customers a full set of stone production line equipment, to meet the needs of customers of different processes, with a large capacity, low energy, good quality aggregates, low powder output, low wear distinctive feature, fully embodies the rationality, effectiveness and suitability of the design.
hammer mill stone crusher price
2.Stone production line can be used to aggregate and artificial sand operations hard limestone, granite, basalt, river pebbles, smelting slag and other materials and more widely used in water and electricity, building materials, highway, urban construction and other industries and fields in the surface layer of material production and processing freeway, highway road gravel, sand and gravel aggregate high-speed rail passenger line, hydroelectric sand and gravel, port and airport runway is particularly suitable for areas with special construction materials such as gravel
Over 10 years experience in this field.
Exported to more than 30 countries in Africa, Asia, America.
Processional Research and Development team; Strict quality control.
Provide complete service equipment installation, testing ,maintenance and staff training.
Welcome your inquiry ! If you are interested in our equipments , please do not hesitate to contact us. We will reply you the details ASAP.
