laser engraving machine
- 10 Set / Sets per Month
- shenzhen/hongkong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | chuangwei | Model Number: | CWDB-2A |
Product Description

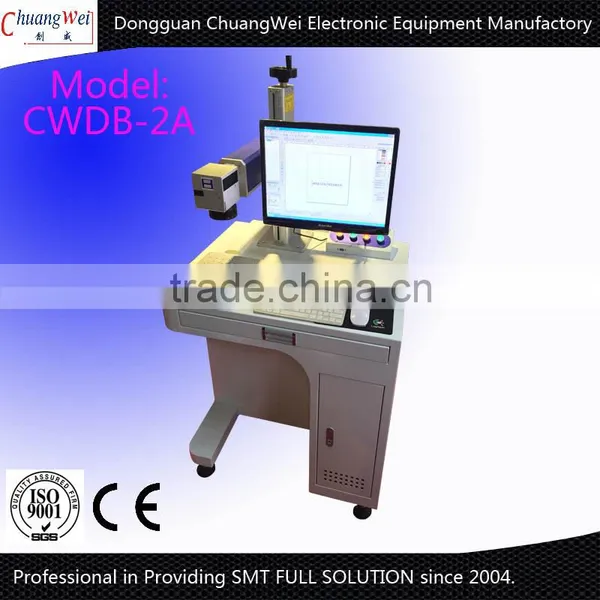

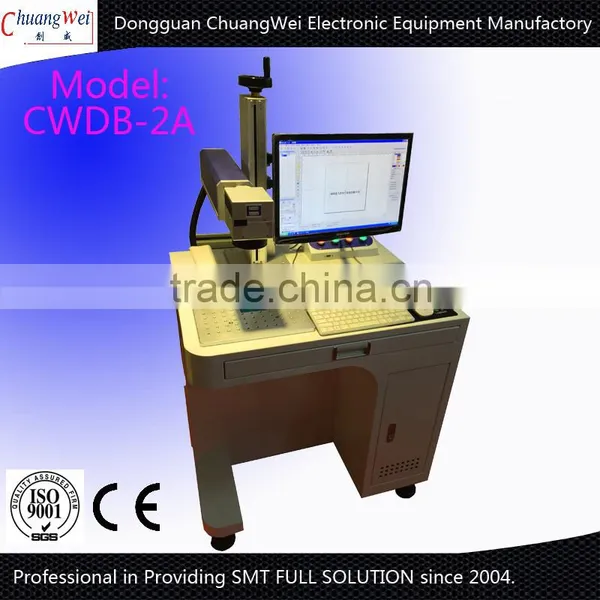

laser engraving machine
The laser marking machine is mainly applied on metals and some non- metals, especially designed for the industrials have high requirements in depth, smoothness and fineness, such as sanitary ware, medical appliance, glasses, clocks, watches, automobile fittings, plastics, paper, electronic hardware.
Laser engraving machine Features:
1.Laser power output is stable, and light spot quality is good.
2.Quick marking and cutting speed at 2-3 times of conventional machine
3.There is no restriction in operation system
4.It is convenient to operate, with fully closed light paths, so it is stable, reliable and free in maintenance with altra-long service lift up to more than 100,000 hours
5.No pollution, no noise, and no consumable materials, with power consumption at 5%-10% of consumption by traditional machines
6.Unitrahigh accuracy and fineness, with theresolution up to 2540 dpi.
Laser engraving machine Technical parameters:
Model | CWDB-2A |
Power | 60W |
Laser wave length | 1050-1070 mm |
Repetition frequency | 20-30KHZ |
Temoo gaussian beam | <2 |
Marking range | 300*300mm |
Marking depth | ≤0.4 |
Marking speed | ≤1000mm/s |
Min line width | 0.01mm |
Min character | 0.15mm |
Repeat accuracy | ±0.002 |
Dimension | 65*80*130cm |
Weight | 75kgs |
Operation system | Windows XP |
Cooling | Build-in air cooling |
Control interface | Standard USB |
File format | All the characters/fonts of windows operating system |
Laser engraving machine Video Link:
/watch?v=XpWp1CNdFRA&feature=youtu.be

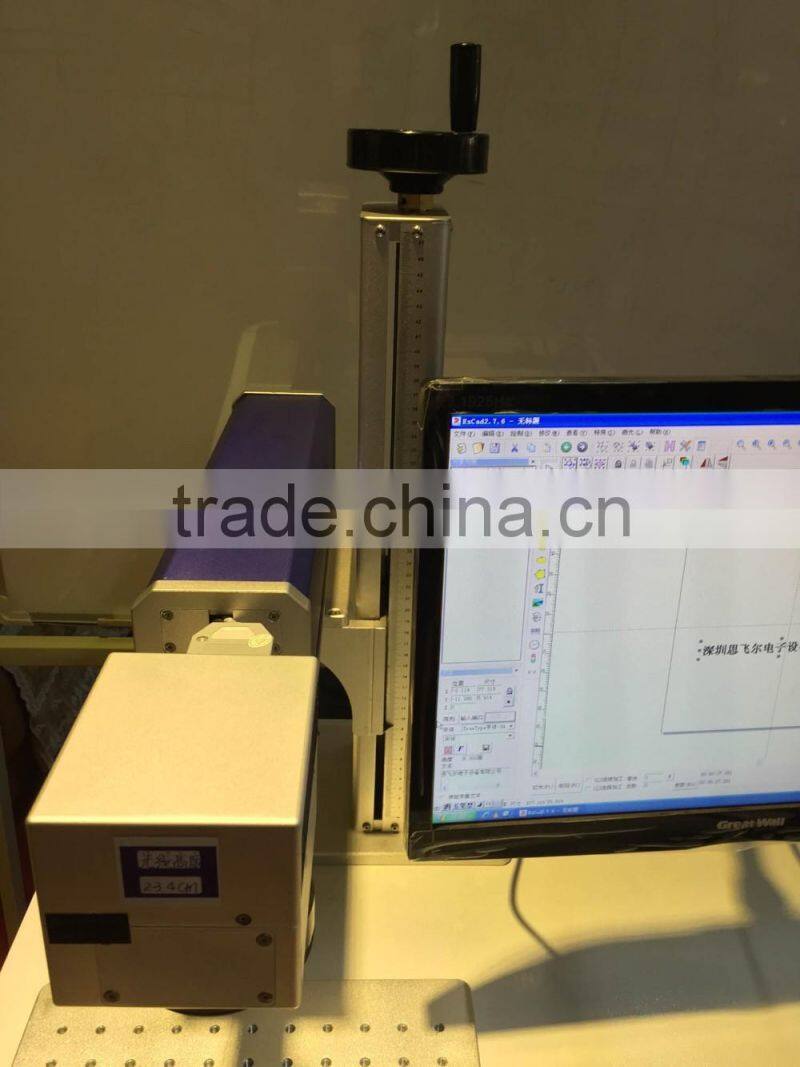

Laser engraving machine details:
Laser engraving machine CE certificate:
