Low cost 100 TPD soybean oil extraction plant popular in Asia
- 6 Set / Sets per Month
- Qingdao or the nearest port
- T/T D/P D/A Credit Card
You May Like
-
Low cost 50 TPD soybean oil extraction plant
-
High effieiency 50 TPD solvent soybean oil extraction plant
-
Popular in South America 50-300 TPD solvent soybean oil extraction plant
-
Popular in South America 300 TPD solvent soybean oil extraction plant
-
Popular in South America 100 TPD solvent soybean oil extraction plant
-
Popular in South America 150 TPD solvent soybean oil extraction plant
Product Details
| Condition | New | Usage | Other, soybean oil, peanut oil, sunflower seeds , cotton seed, etc. | |
| Type | Other, edible oil extraction | Automatic Grade | Automatic | |
| Production Capacity | 50-500TPD | Place of Origin | Henan, China | |
| Brand Name | New Lead | Model Number | 50-300TPD soybean oil extraction plant | |
| Voltage | 220v 0r 380v ,as your requirement | Power(W) | Depends | |
| Dimension(L*W*H) | Depends on the capacity | Weight | Depends on the capacity | |
| Certification | ISO certificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Low cost 50 TPD soybean oil extraction plant popular in Asia
Definition of 50 TPD soybean oil extraction plant technology
Extraction technology: oil extraction method applies the principle of extraction to choose some kind of orgainc solvent which is capable of dissolving grease, after exposure to oil (immersion or spray), so that the oil in oil seeds can be extracted out.
Advantage of 50 TPD soybean oil extraction plant technology
(solvent extraction plant)
- Low residual oil in meal,
- low labor intensity,
- good working environment,
- excellent quality meal.
Flow chart of 50 tpd soybean oil extraction plant
Main process of 50 TPD soybean oil extraction plant
The oil Embryo (or pre-press cake) is immersed in a selected solvent so that the grease is dissolved in a solvent (consisting of miscella). (Solvent extraction)
- Separate the miscella and solid residual (meal)(Miscella separation)
- After that, miscella is evaporated , stripped according to different boiling points between solvent and oil. (Miscella evaporation and stripping)
- Making the solvent become steam and separate with oil, thus, obtain oil (extracted crude oil). (Extracted oil )
- The solvent steam can be used again after condensation and cooling recovery. (Solvent condensation recovery)
- Meal also contains a certain amount of solvent, after desolventizing, the dry meal can be obtained(Wet meal desolventizing)
- Volatilized solvent vapor is also used again after condensation and cooling recovery.(condensation recovery)

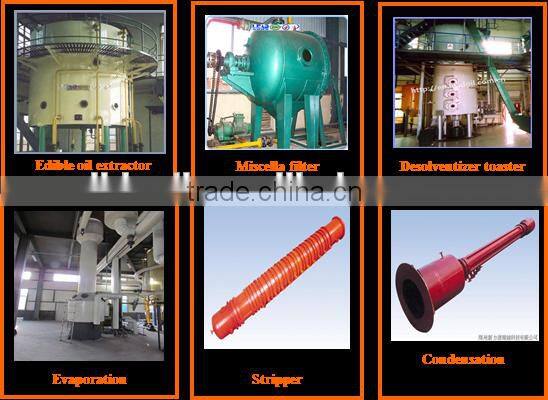

Main oil extraction machine in 50 TPD soybean oil extrcation plant
Parameter of 50TPD soybean oil extraction plant
Technical parameter of solvent soybean oil extraction plant
| Thickness of flake | ≤0.3mm(direct extraction) |
| Length of cake | ≤15mm(pre-pressing extraction) |
| Moisture | ≤10%(direct extraction) ≤5%(pre-ssing extraction) |
| Rotation speed | ≤100turn/min (rotocel oil extraction machine) |
| Chian speed | ≥0.3turn/min |
| Extraction temperature | 50-55℃ |
| Miscella concentration | Depends oil content in cake |
| Gas phase temperature of DTDC | 74-80℃ |
Consumption index of soybean oil extraction plant
| Steam consumption | 500(350) kg/ t raw material |
| Cooling water volume | 20(30)t/t raw material |
| Solvent consumption | <5kg/t raw material |
| Data in bracket refers to the consumption of negative pressure evaporation. | |
| Volatile matter of crude oil | ≤0.2% |
| Moisture in meal | ≤12% |
| Residual oil in meal | ≤1% |
| Detonating test | qualified |
| Crude oil color | normal |
| Smell and taste | normal |
| Moisture and volatilized matter | 0.5% |
| Impurity | 0.5% |
| Pre-pressed cake thickness | 12mm |
| Pre-pressed cake moisture | 6% |
| Residual oil in cake | 13%(or as requirement ≤18%) |

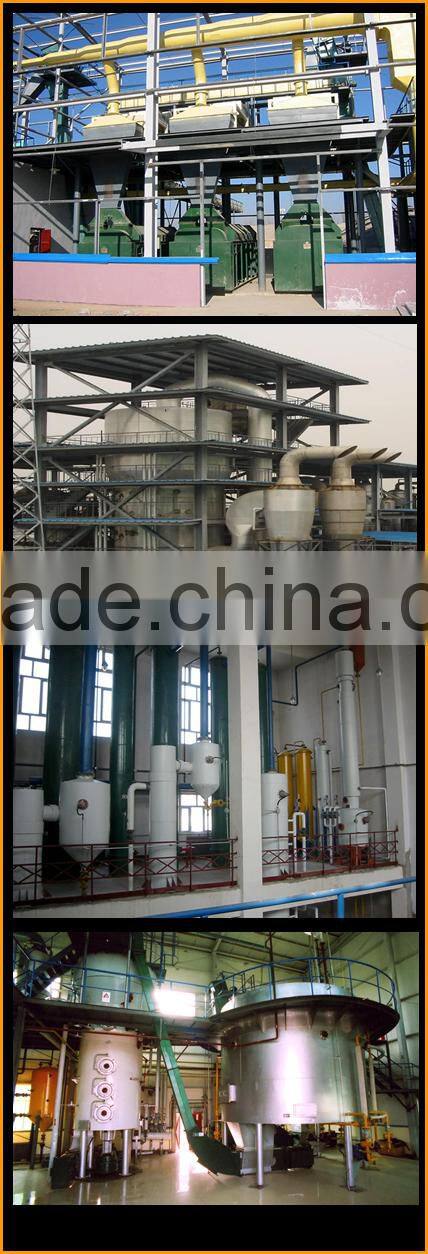

Soybean oil extraction plant project
- Ensure providing complete equipment and its accessories on time.
- Ensure the installation and adjustment are once accepted.
- Ensure providing high-quality equipments with competitive price.
- Providing new products and advanced technology preferentially;
- Providing the operating technicians professional training to ensure operate independently.
- Appointing you a inspector during the installation process.
- Arranging an professional installation team which will be managed by our PM.
Zhengzhou New Lead Grian&OIl Science and Technology Co.Ltd. is an engineering company professional in design, manufacture, installation , debugging and after-sales service of edible oil production line , it can provide turnkey project service and customized service.
The stong points are:
30-300TPD edible oil pretreatment&extraction plant
1-10 small scale edible oil refinery plant
10-300TPD edible oil refinery plant
Small breeds edible oil production line: walnut, grapeseed
Animal oil refinery plant
Sunflower oil dewaxing
Certification
Oil production plant
Coustomers
Cooperative company
Q1. Why choose us?
Rich experience in edible oil production line ;
Professional technical staff and technical support from professors in this field.
Customized service;
Excellent quality and competitive price.
Q2. Which kinds of oil seeds we could process?
Oil pretreatment&extraction plant: soybean , sunflower seeds, cotton seeds, rapeseeds, canola, corn germ.
Oil refinery plant: all kinds of crude oil , such as various vegetable crude oil, animal oil.
We could also provide soybean protein isolate plant, soybean flakes plant.
Q3. What does our turnkey project service refers to?
Our turnkey project service means that we could provide service of design ,manufacture, installation , debugging and after sales service. It will be OK, if you want to employ local people to install the machine, we could provide installation training service.
Q4. What is the warranty?
One year.
Q5.What are the basic information needed for desgin an edible oil plant?
In order to make a perfect quotation for you , the following information is needed to know:
1. What is your oil raw material?
2. How about your raw material quality? mainly the oil content.
3. Purchase range: pre-pressing machines, and (or) solvent extrating machines, and (or) refinery machines?
4. What is your requirement for final oil quality?Such as acid value, preoxide value, color,smell, etc.
5. What is your production capacity (tons(kgs)/24 hours)?
6. How about your local power supply? (380V, 50Hz, or 440V, 60Hz, or 220v...)
7. More details requirement from you.
If you are interested in our products (soybean oil extraction plant) and want to know more information, please do not hesitate to contact me. I am always at your service.
