Limestone Gravel Making Machine Limestone Hammer Crusher

Limestone Gravel Making Machine Limestone Hammer Crusher thumbnail-1
Limestone Gravel Making Machine Limestone Hammer Crusher thumbnail-2
Limestone Gravel Making Machine Limestone Hammer Crusher thumbnail-3
Limestone Gravel Making Machine Limestone Hammer Crusher thumbnail-4
Limestone Gravel Making Machine Limestone Hammer Crusher thumbnail-5
Limestone Gravel Making Machine Limestone Hammer Crusher thumbnail-6
Limestone Gravel Making Machine Limestone Hammer Crusher photo-1
Limestone Gravel Making Machine Limestone Hammer Crusher photo-2
Limestone Gravel Making Machine Limestone Hammer Crusher photo-3
Limestone Gravel Making Machine Limestone Hammer Crusher photo-4
Limestone Gravel Making Machine Limestone Hammer Crusher photo-5
Limestone Gravel Making Machine Limestone Hammer Crusher photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Hammer Crusher
Application:
Medium-hard stone, limestone crushing
Contact Supplier Request Quote Chat Now
Xinxiang Dingli Mine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hammer Crusher
Application Medium-hard stone, limestone crushing
Power(W) 75-132KW
Capacity(t/h) 50-1200
Place of Origin Henan, China
Brand Name Dingli
Model Number PCZ and PCZ
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Limestone gravel making machine limestone hammer crusher

Product Description

What are the characteristics of  limestone hammer crusher?



1. Driver type: Electric
2. Capacity: 50-1200t/ h
3. Feeding Size: ≤1200mm
4. Output Size: 20mm-30mm
5. Application: Used to crush stone whose pressure-resisting lower than 150 Mpa or calcium content higher than 40%, like limestone, coal, salt, gypsum, alums, brick, tile, gangue, etc.
6. Output size adjustment: Through adjusting the screw to change output size, no need to change sieve plate. Save machine & labor cost.

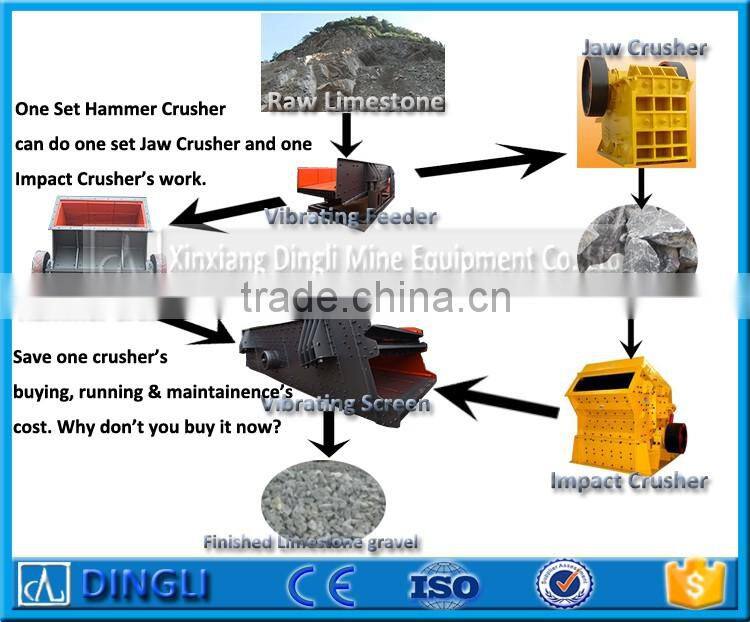

7. Energy & cost saving: One crusher can finish two crusher’s work at a time.
8. Environment protecting: It can crush wet stone. When crushing, you can add water to reduce the dust pollution for environment & worker’s health.
9. Low investment, high output, quick investment refund.

Limestone gravel making machine limestone hammer crusher

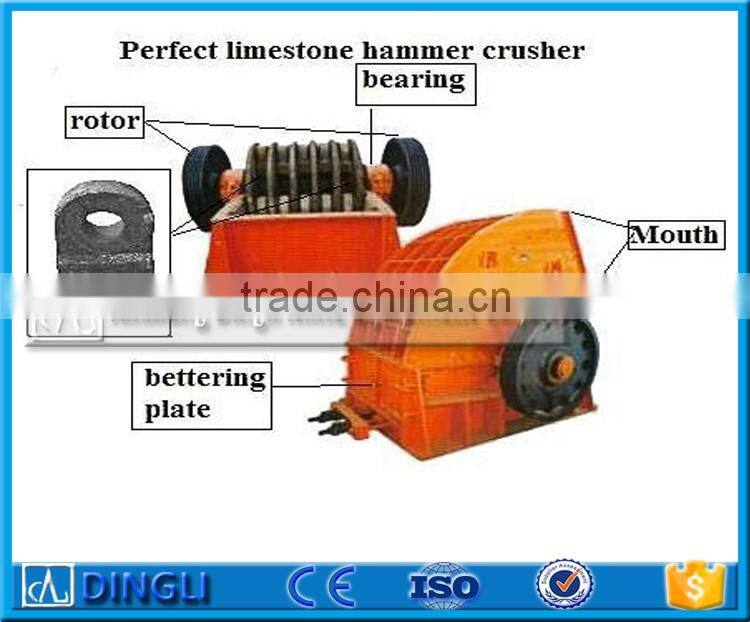

How does the limestone hammer crusher work?

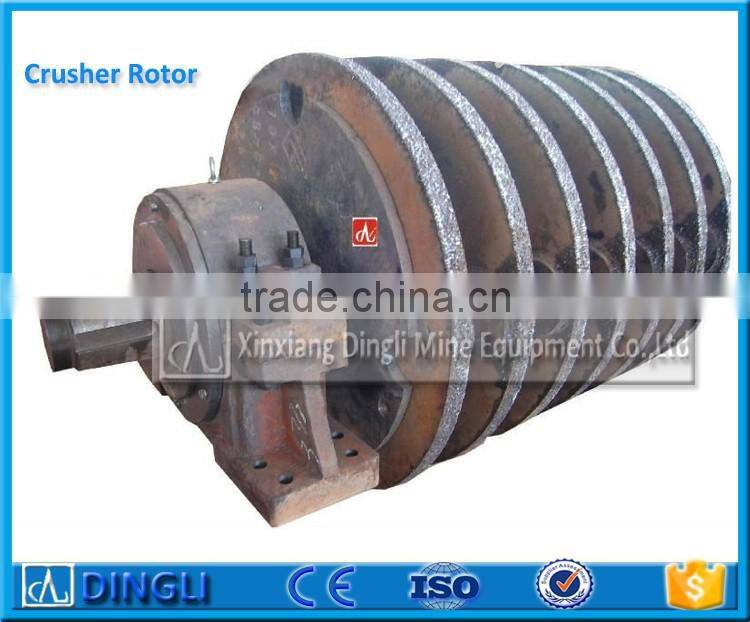

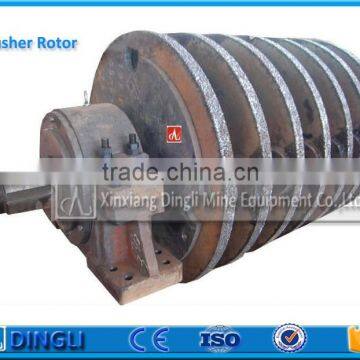

The motor drives the rotors to rotate quickly in the crushing chamber. Materials enter the crusher through the feed port, and then they are being hit, cut and grounded into smaller particles by a hammer. There is a sieve plate under the rotor, so the materials whose size is smaller than the sieve size will be sieved out and others will be left to be further stricken and ground until they can be sieved out. The size of final product can be adjusted by the screw no need change the sieve plate. The gap between the rotor and the sieve plate can also be adjusted according to different requirement.

 Limestone gravel making machine limestone hammer crusherLimestone gravel making machine limestone hammer crusher


Advantages

What are the advantages of our limestone hammer crusher?



1.         The rotors are still crushing when it letting finished stone out.

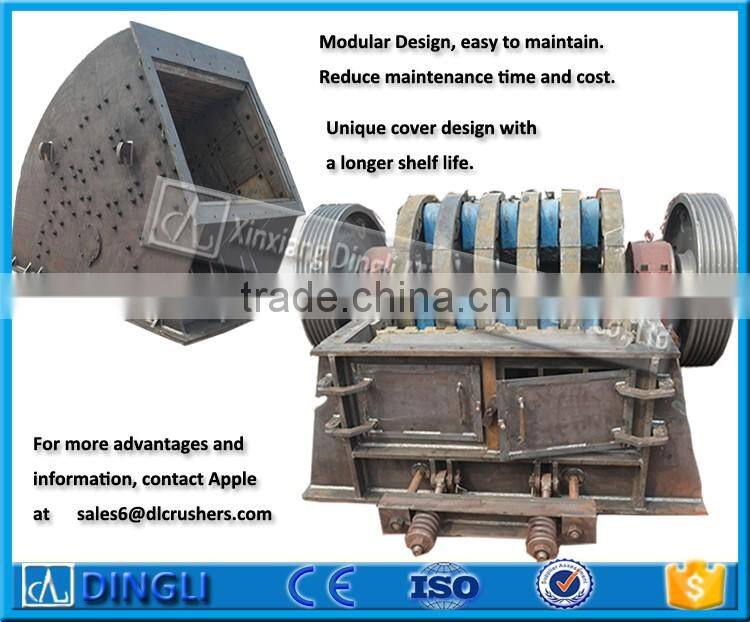

2.         Special cover design: It avoids the damage of fallen stone.

3.         Improved the lifetime of hammer 4-6 times.

4.         The bearings can be moved out from the hole of the cover, and the changed easily.

5.         All the frames are all connected by screw, very convenient for installation.

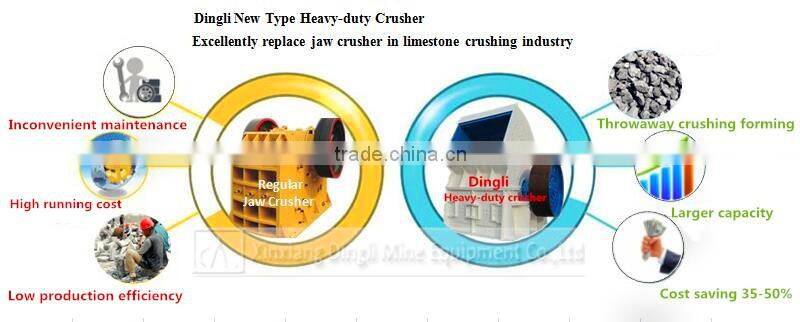

6.         Can reduce 35% cost with two in one function. It no need secondary crusher, and can do the two crushers work at a time.

Limestone gravel making machine limestone hammer crusher

Limestone gravel making machine limestone hammer crusher

Caes

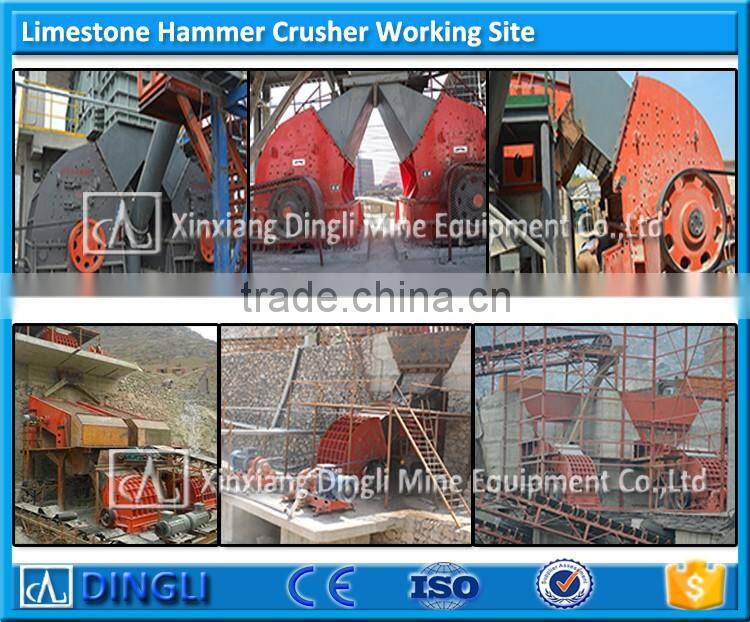

Can you show me some cases of limestone hammer crusher?



Limestone gravel making machine limestone hammer crusher

How many different models of limestone hammer crusher do you have?



heavy type stone hammer crusher:

Model Rotor diameter(mm) Feeding port size(mm) Feeding particle size(mm) Capacity Power(kw) Envelop dimensions(mm)
PCZ1308 1310×790 850×800 ≤600 100-160 132 2818×2100×2390
PCZ1510 1500×900 1000×90 ≤700 160-210 132×2 3260×2414×2750
PCZ1512 1500×1160 1200×900 ≤750 250-320 160×2 3260×2624×2750
PCZ1615 1650×1452 1500×1200 ≤1000 360-420 200×2 3456×2915×3185
PCZ1620 1660×1900 2000×1200 ≤1200 500-800 315×2 3500×3100×3200
PCZ1820 1800×1964 2000×1200 ≤1200 1000-1200 450×2 3270×3210×3520



standard type stone hammer crusher:

Model Rotor diameter(mm) Feeding port size(mm) Feeding particle size(mm) Capacity Power(kw) Envelop dimensions(mm)
PC-0706 700×570 618×510 ≤400 50-70 75 1950×1340×1480
PC-0808 800×750 780×610 ≤500 80-100 132 2280×1790×1670
PC-0910 900×1000 1070×750 ≤600 150-200 110×2 2600×2200×1940
PC-1012 1000×1180 1255×810 ≤650 250-300 132×2 2800×2310×2210
PC-1213 1200×1280 1350×900 ≤750 300-350 160×2 2970×2580×2510
PC1216 1270×1490 920 ×1530 ≤750 400-500 200×2 3070×2840×2580
PC1220 1220 ×1950 920 ×2000 ≤750 500-600 220×2 3080×3380×2580

Limestone gravel making machine limestone hammer crusherLimestone gravel making machine limestone hammer crusher


Our Services



What are the services for limestone hammer crusher can you provide to us?


Before-sales:
a. Provide investment guide for free.
b. Choose right model for you.
c. Visit our customer’s quarry & stone production line for free.



Fulfill the contract:
a.       During transporting the equipments, our experienced sales will track and update you the logistic information till they are arrived at your site.
b.      According to your requirements, we will send experienced engineer to guide the installation & debugging at site and provide technical guidance within the shortest time.
c.     We will provide you free installation operating manual, equipment assembly drawing, wearing parts list, etc in duplicate to facilitate buyer’s daily maintenance.
d.    We will set up a service team especially for you to make a detailed installation & debugging service plan.
e.    We will train your technicians and workers for free

Limestone gravel making machine limestone hammer crusher

After-sales:
a. In the warranty period, we will provide contract repairing, replacing, and returning of the machine with proper using.
b. In normal use cycle of the equipments, we will provide discount spare parts lifetime within shortest time.
c. Lifetime technical supports are provided.

Limestone gravel making machine limestone hammer crusher

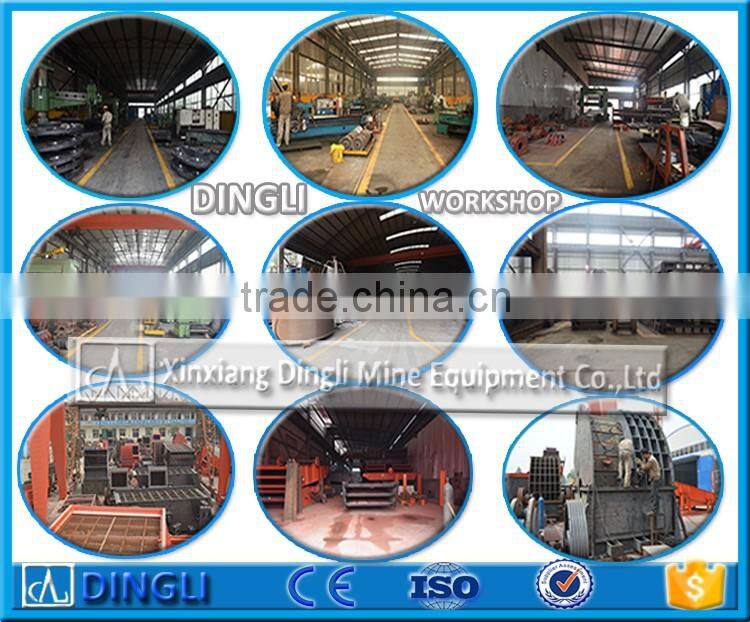

What do you know about Xinxiang Dingli Mine Equipment?



1. Starts from a quarry, knows how to design and modify the equipment and production line very well.
2. Has our own mining equipment research centre, own mining mechanical institute, own manufacturing innovation lab. Ensure you can get latest and qualified equipment.
3. Professional team: R & D team, Sales team, Engineer team, After-sales team.
4. Exported to more than 20 countries & regions.
5. Main products: stone crushing line, heavy duty hammer crusher, hammer crusher, vibrating feeder, belt conveyor, vibrating screen, duster, etc.

Limestone gravel making machine limestone hammer crusherLimestone gravel making machine limestone hammer crusher



FAQ



How to choose right limestone hammer crusher?



a.     Tell us the kind of stone you want to deal with.   ______stone.

b.     The capacity you wanted.  ___________ T/H.

c.      The feeding and output size._____  _____ mm.
